61 62 030 Replacing wiper arm for rear window wiper: Procedure

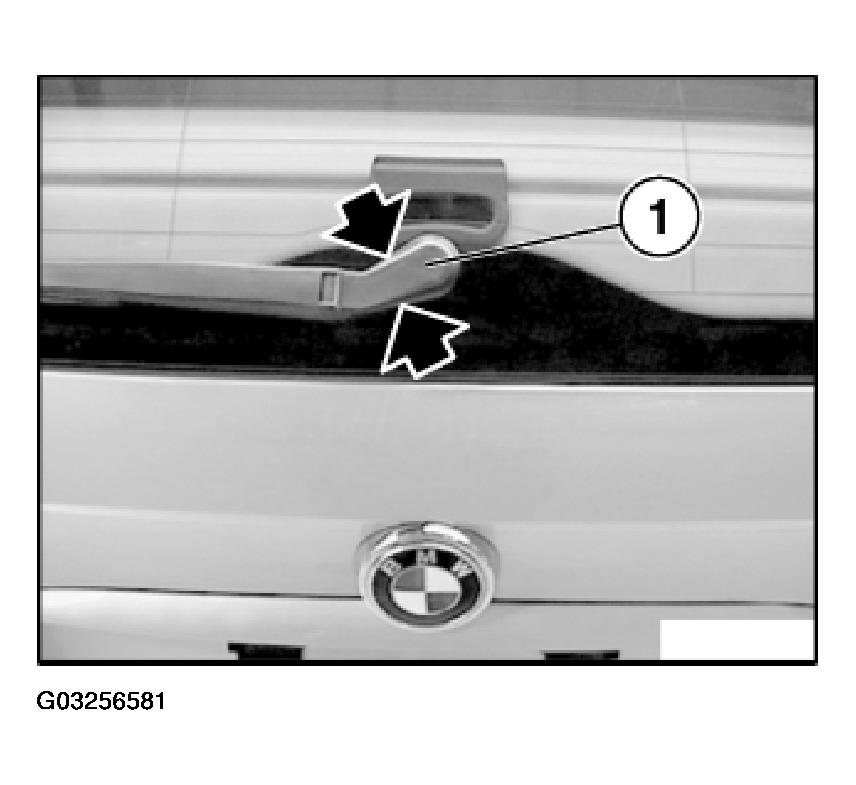

Lever out cap (1) at side and remove.

Fig 1: Removing Rear Wiper Arm Nut Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

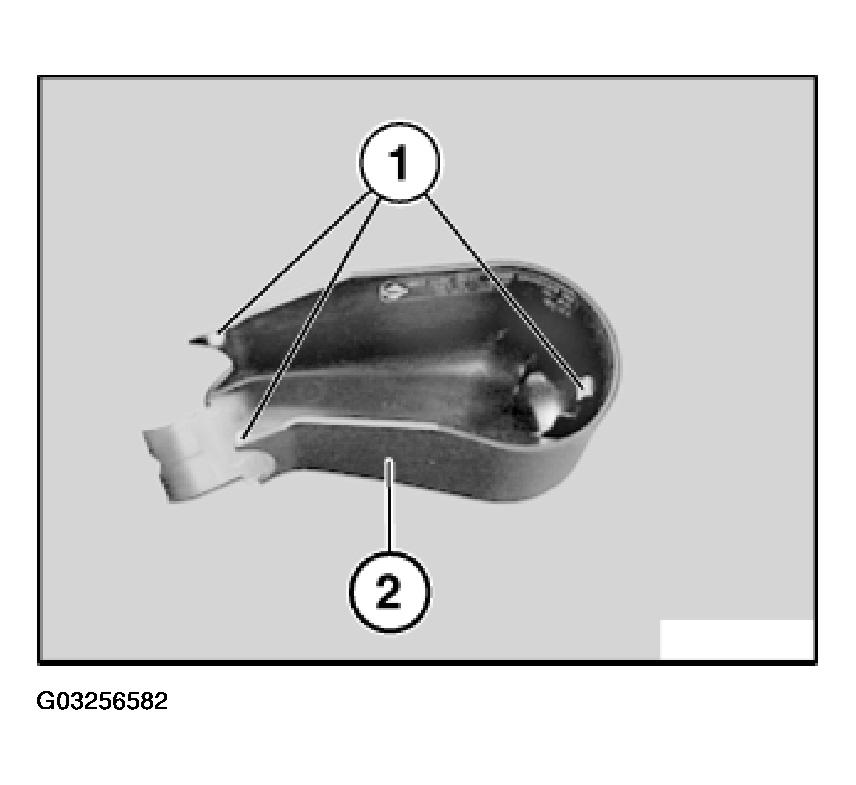

Catches (1) of cap (2) must not be damaged.

Fig 2: Do Not Damage Catches On Cap

Courtesy of BMW OF NORTH AMERICA, INC.

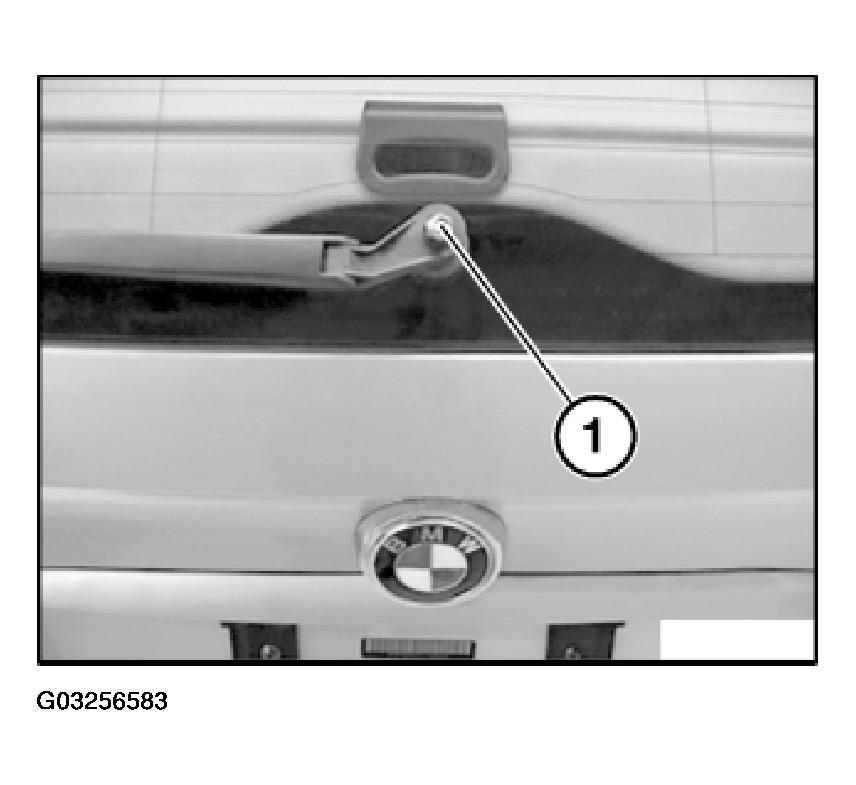

Unscrew nut (1).

Fig 3: Removing Rear Wiper Arm Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, refer to 61 62 2AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 .

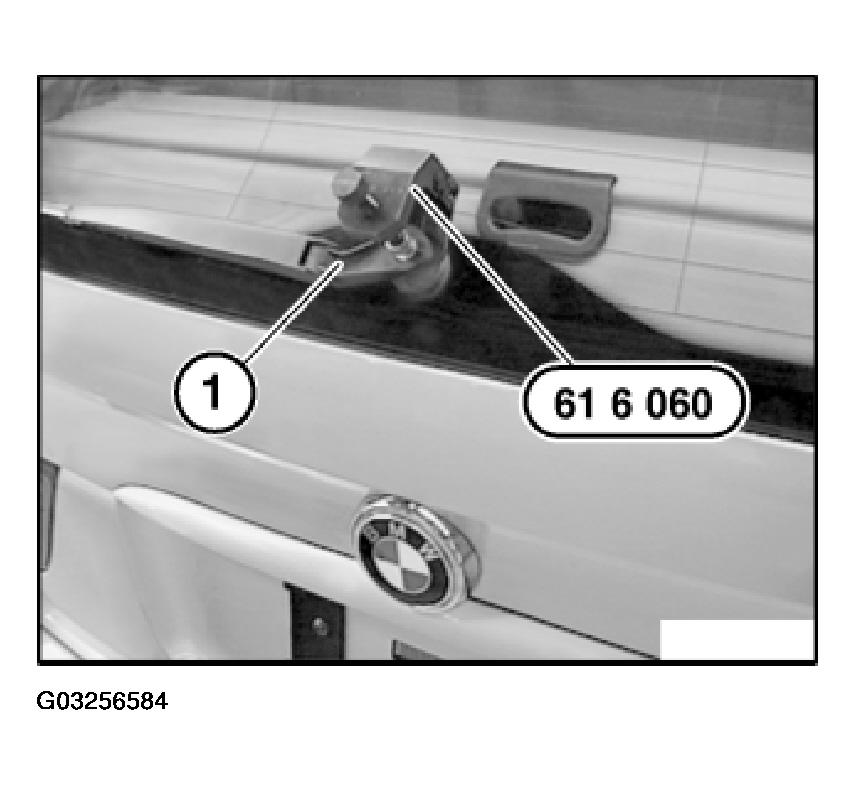

Detach wiper arm (1) with special tool 616 060 and remove.

Fig 4: Removing Rear Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper motor must be in end position.

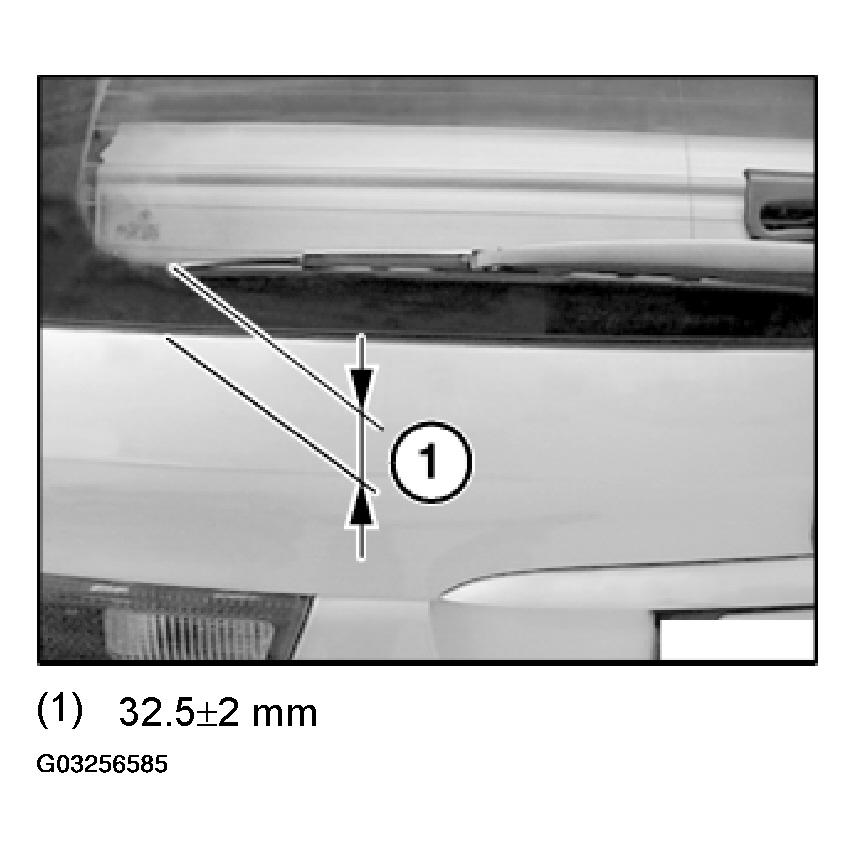

Adjust distance (1) between wiper arm and rear window edge.

(1) 32.5+/-2mm

Fig 5: Adjusting Rear Wiper Arm Position

Courtesy of BMW OF NORTH AMERICA, INC.
