61 13... Crimping optical fibres: Procedure

WARNING: This page is about a different variant/trim than selected.

To crimp optical fibres, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 323 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

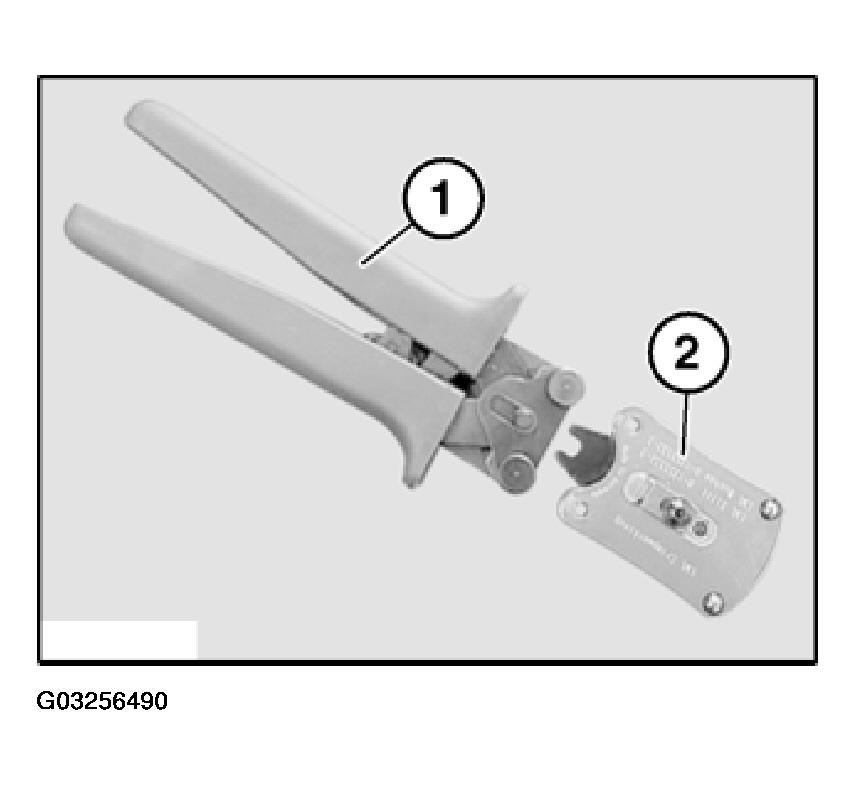

Fig 1: Identifying Pliers 61 4 321 & Optical Fibre Crimping Head 61 4 323

Courtesy of BMW OF NORTH AMERICA, INC.

Move contact guide by means of stop lever (1) into corresponding position (pin contact or jack).

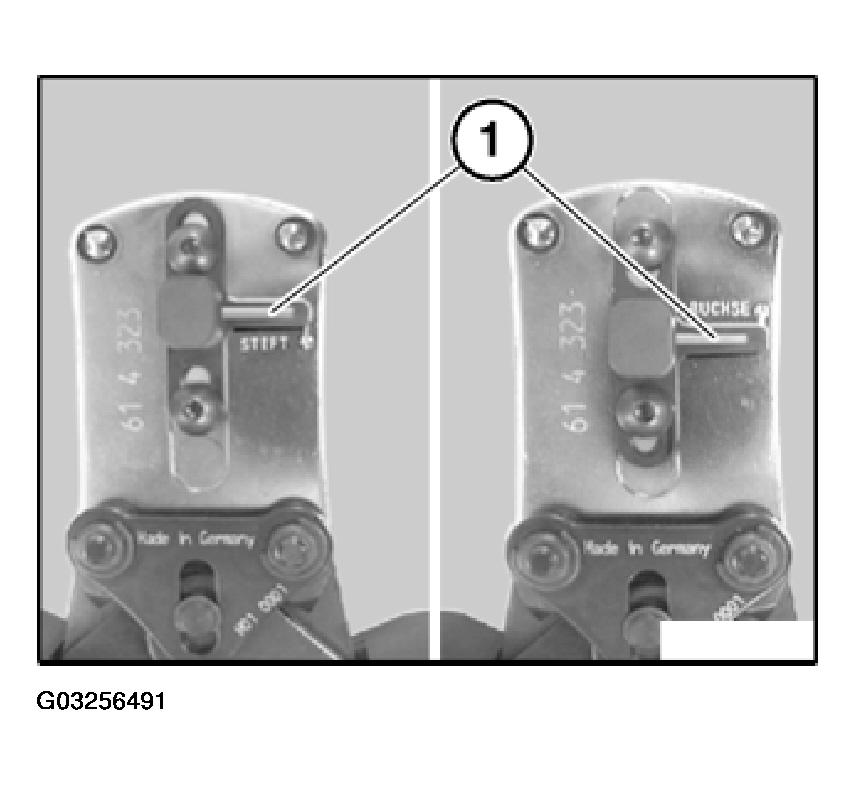

Fig 2: Placing Stop Lever Into Corresponding Position

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (2).

Place pin contact or jack (1) in crimping head and secure with locking lever (3).

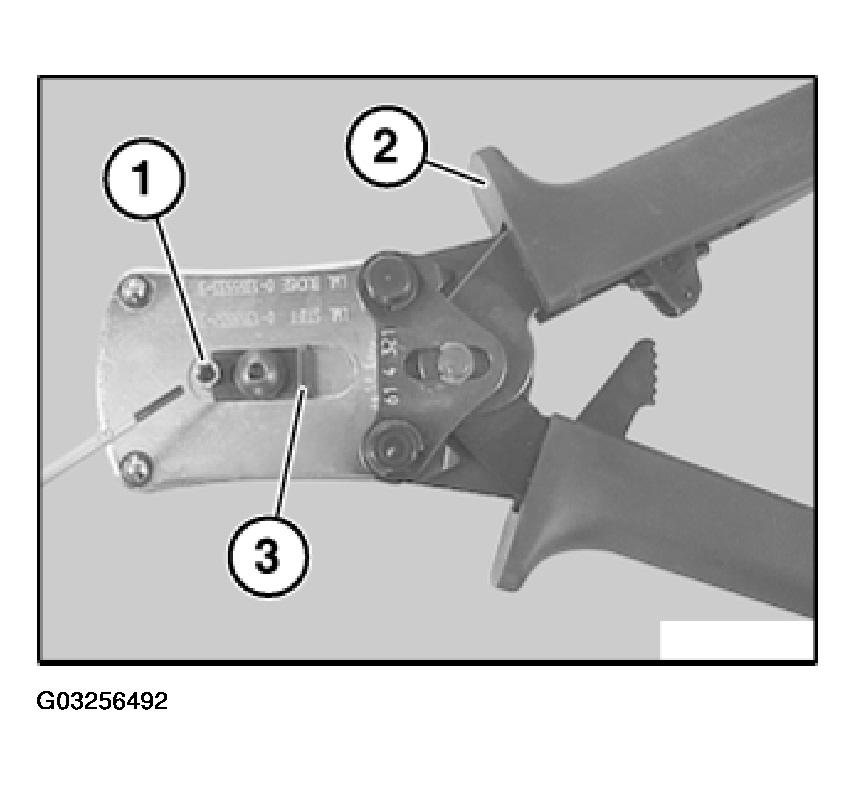

Fig 3: Placing Pin Contact Or Jack In Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from optical fibres. Refer to 61 13 ... CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH .

Insert stripped optical fibre (1) as far as it will go into pin contact or jack (2).

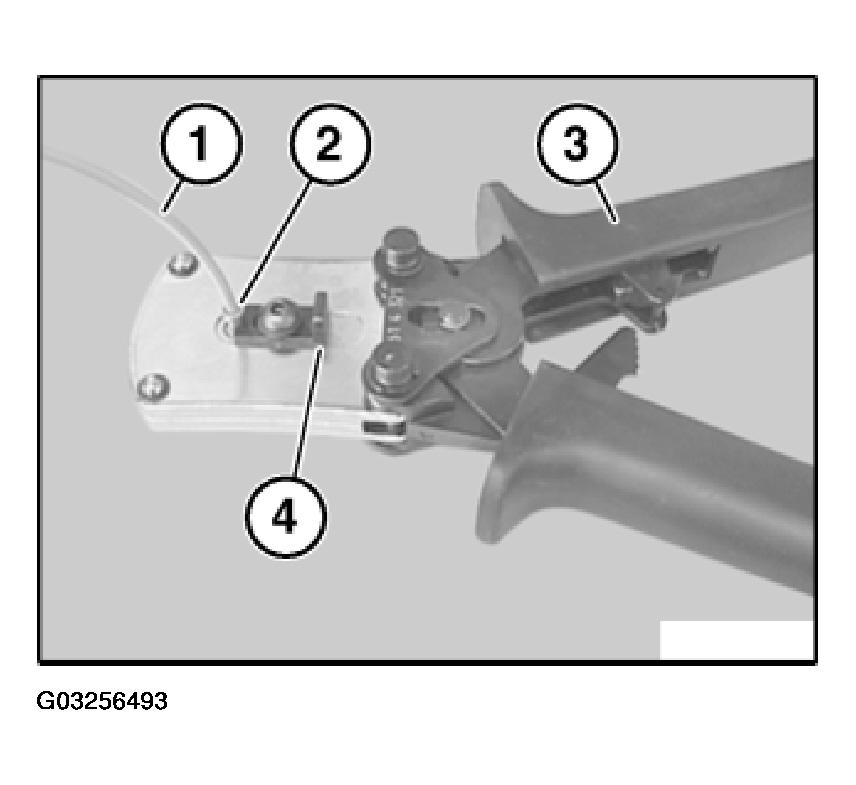

Fig 4: Inserting Stripped Optical Fibre Into Pin Contact Or Jack

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (3) fully.

Open pliers (3) and locking lever (4).

Remove optical fibre (1).

IMPORTANT: Make sure optical fibre is correctly seated in jack.

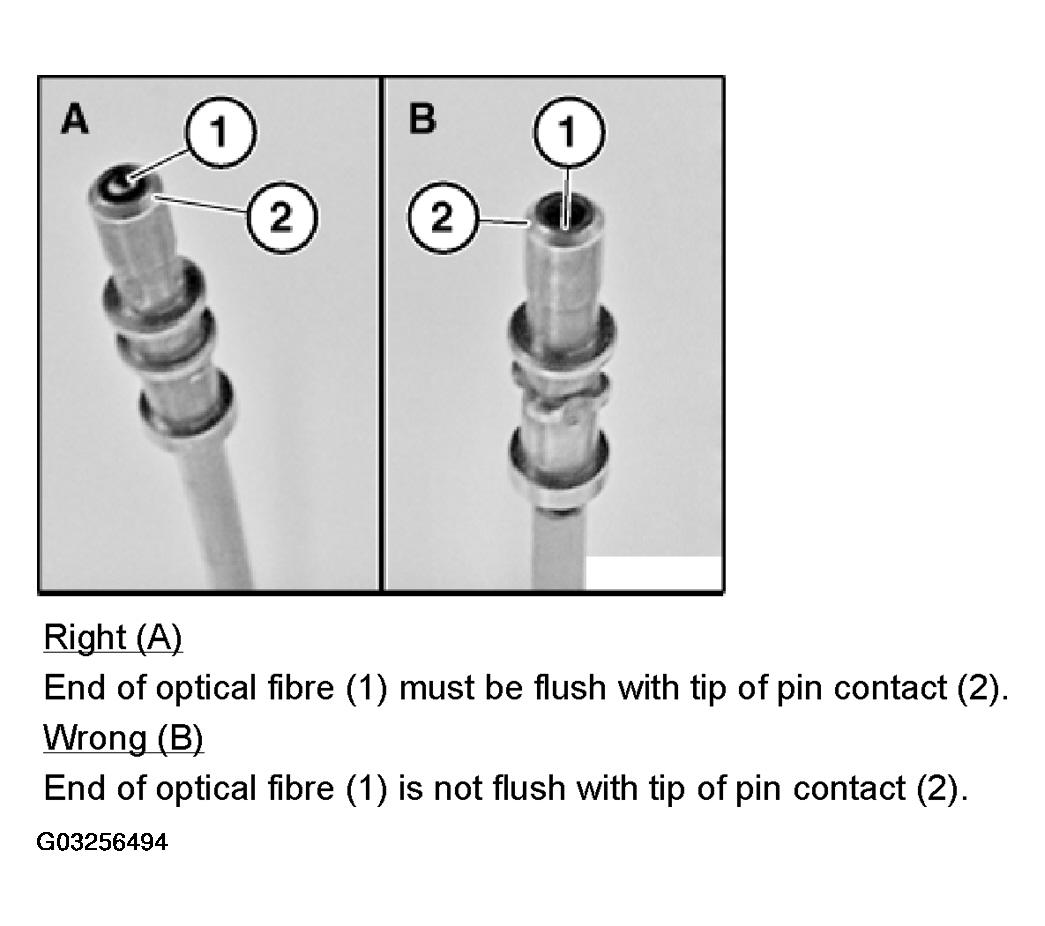

Fig 5: Examples Of Optical Fibre Placement In Pin Contact

Courtesy of BMW OF NORTH AMERICA, INC.
