Removing MQS Contacts From Contact Carrier

WARNING: This page is about a different variant/trim than selected.

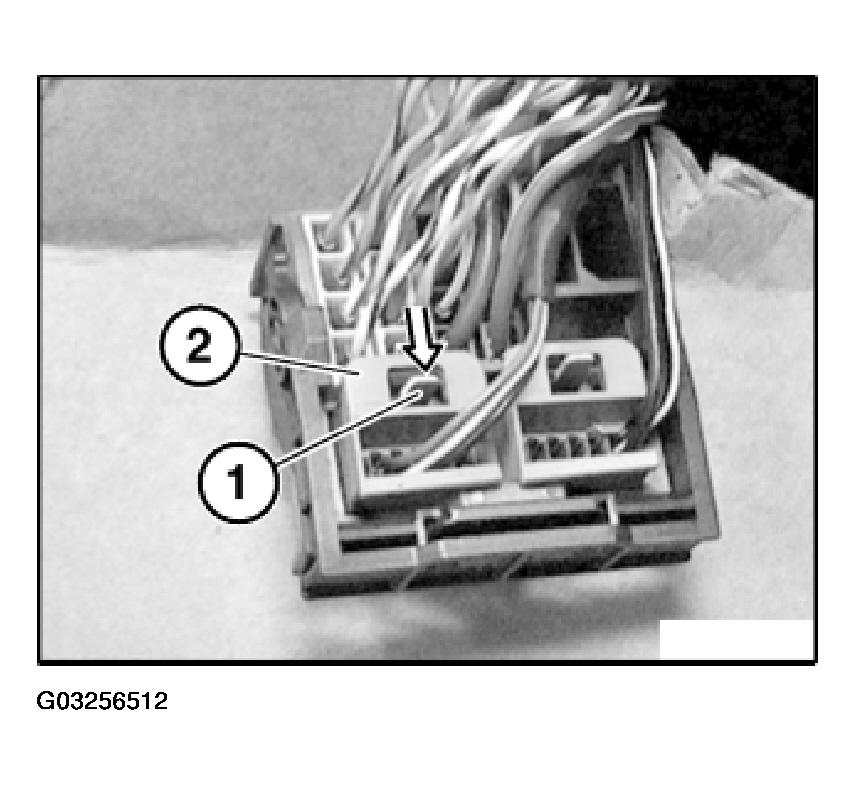

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.

Fig 1: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

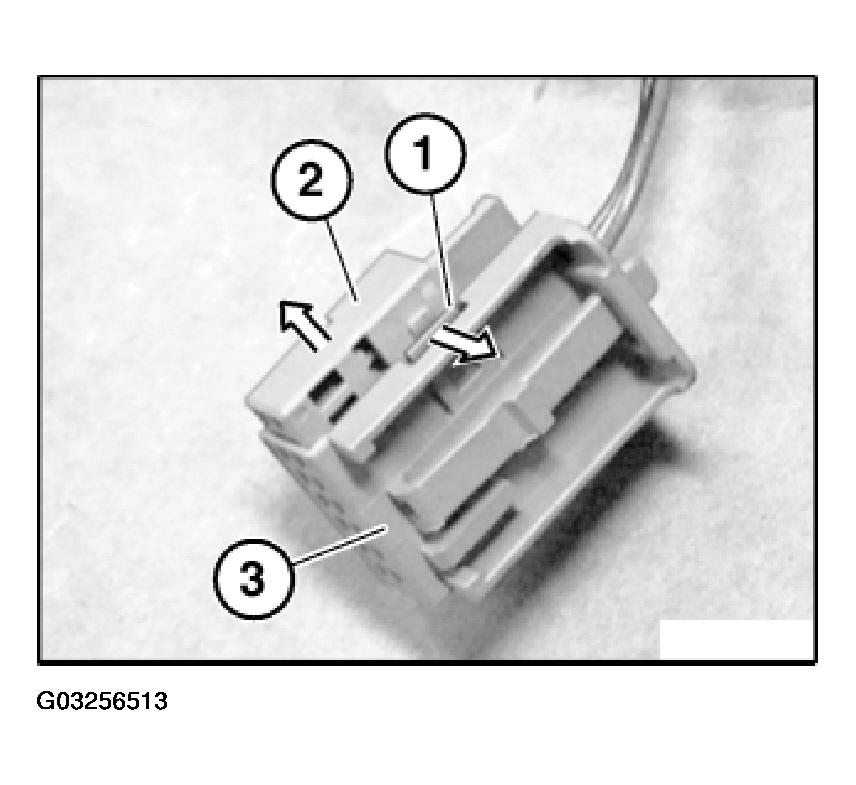

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

Fig 2: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

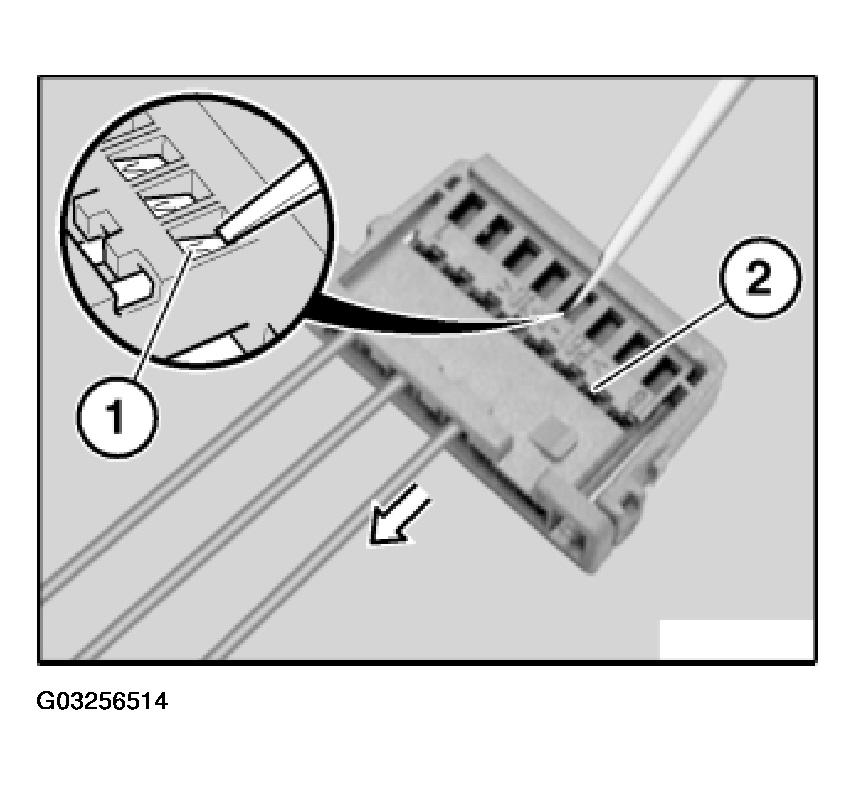

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

NOTE: The illustration shows an 8-pin socket housing where removal of the contacts is identical.

Fig 3: Pulling Wire With Socket Contact Out Of Housing (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

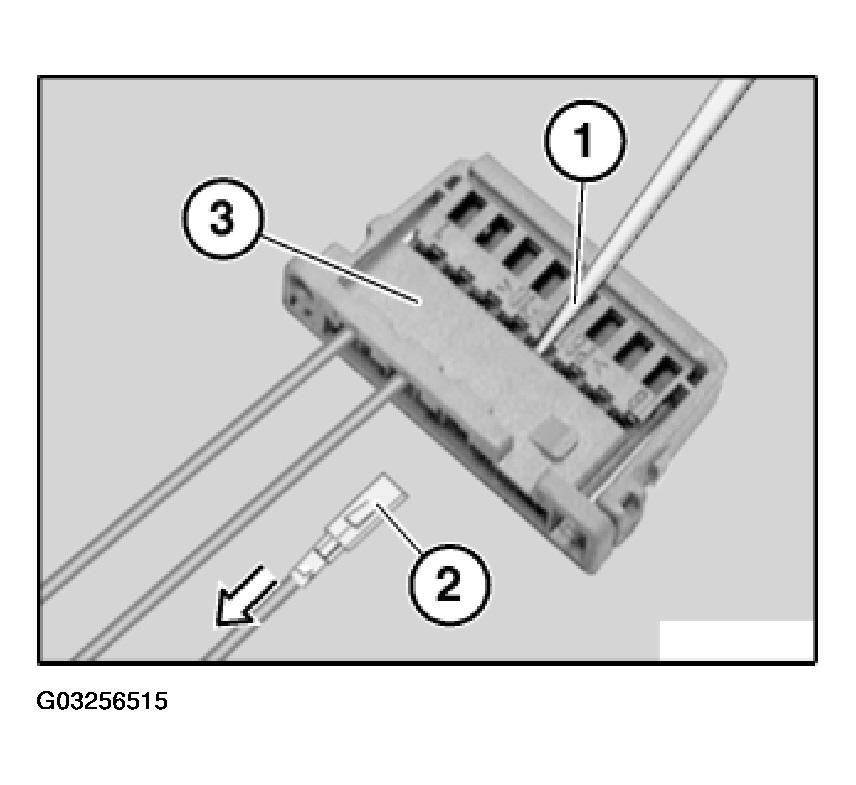

Hold down arrester hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 4: Pulling Wire With Socket Contact Out Of Housing (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
