Removing MPQ Contacts From Radio Plug

Press lock (1) in direction of arrow.

Detach secondary lock (2) from radio plug.

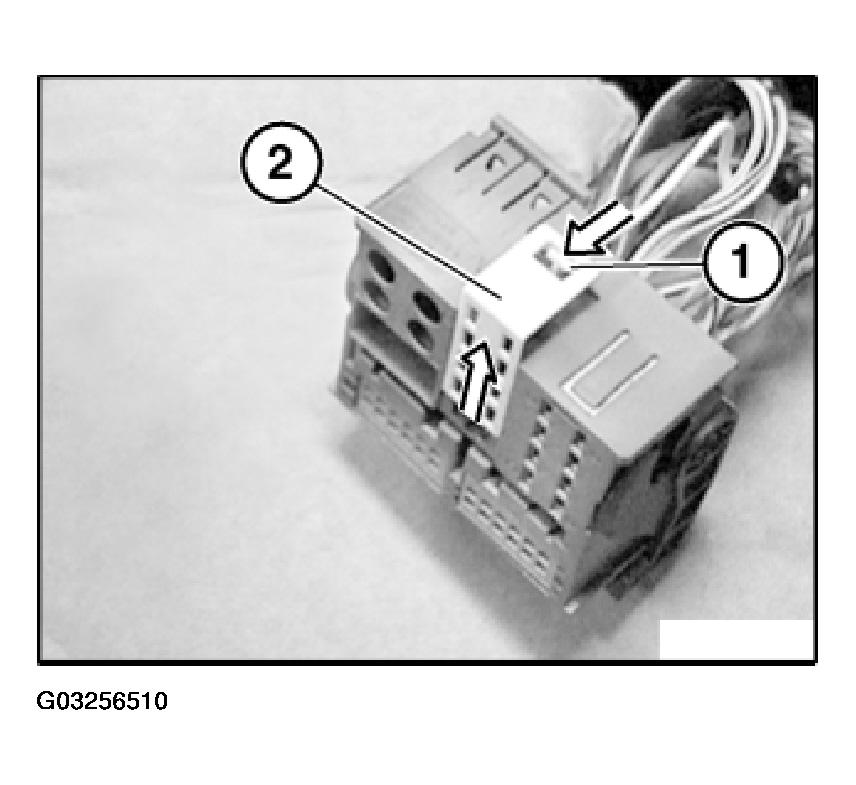

Fig 1: Detaching Secondary Lock From Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Feed special tool 61 1 135 past side of contact.

Press special tool 61 1 135 in direction of arrow.

Pull wire (1) with socket contact out of radio plug (2).

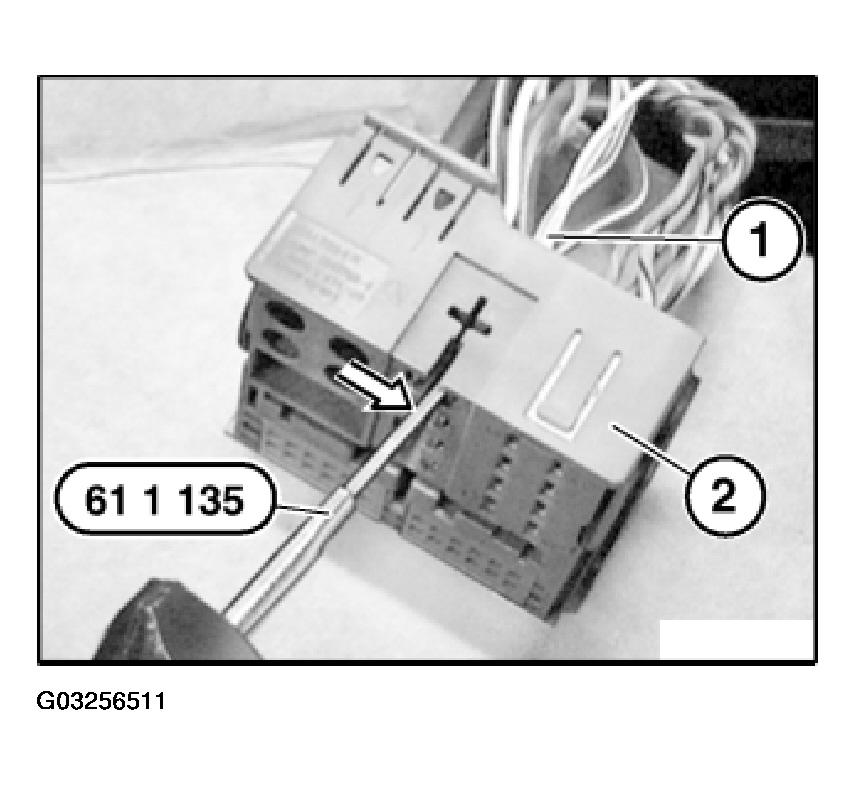

Fig 2: Removing Socket Contact With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
