61 13 ... Retaining bracket

WARNING: This page is about a different variant/trim than selected.

Pull relevant fuse out of fuse block (1).

NOTE: Mark positions when removing fuses.
Pull locking slide (2) out of fuse block (1) as far as it will go.

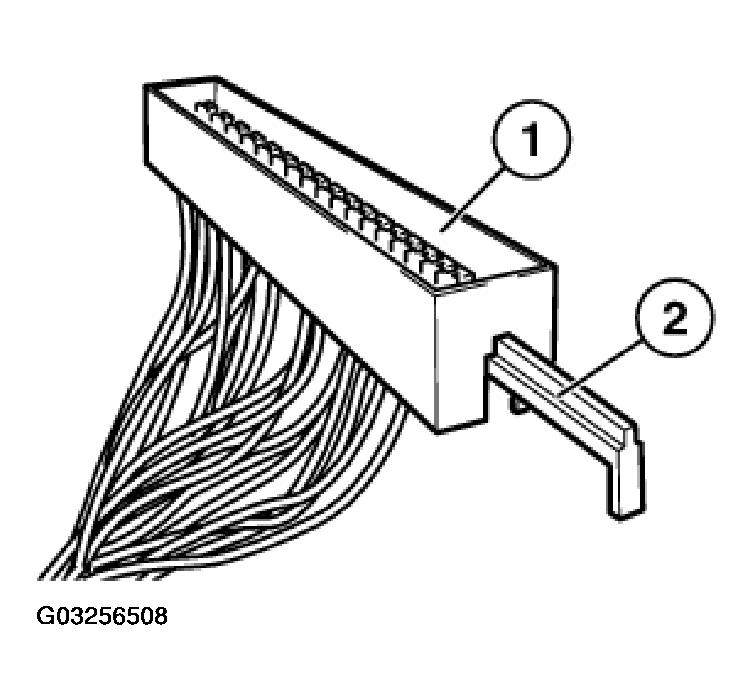

Fig 1: Pulling Locking Slide Out Of Fuse Block

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.

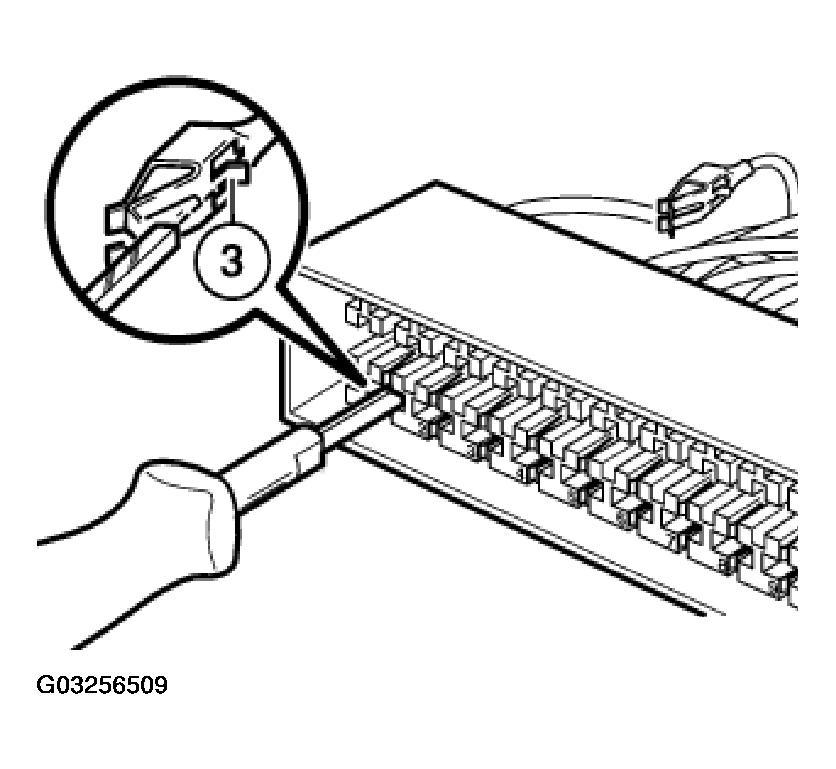

Fig 2: Removing Contact From Fuse Block

Courtesy of BMW OF NORTH AMERICA, INC.
