61 13 ... Repairing ribbon cables: Procedure

WARNING: This page is about a different variant/trim than selected.

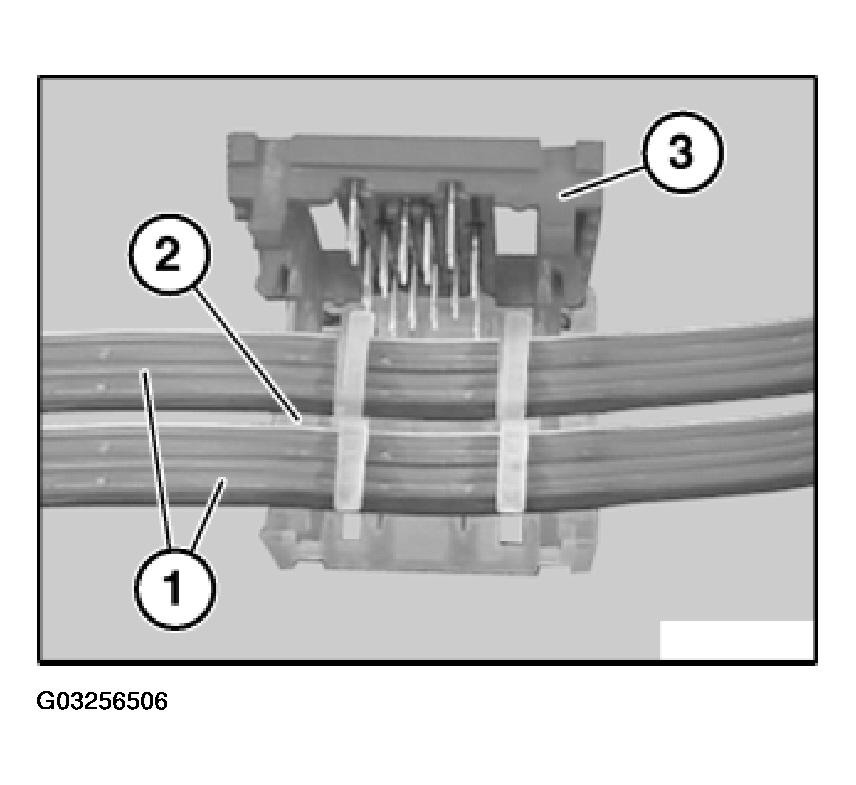

Fig 1: Placing Ribbon Cables In Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Place ribbon cables (1) in connector housing (2) and close cover (3).

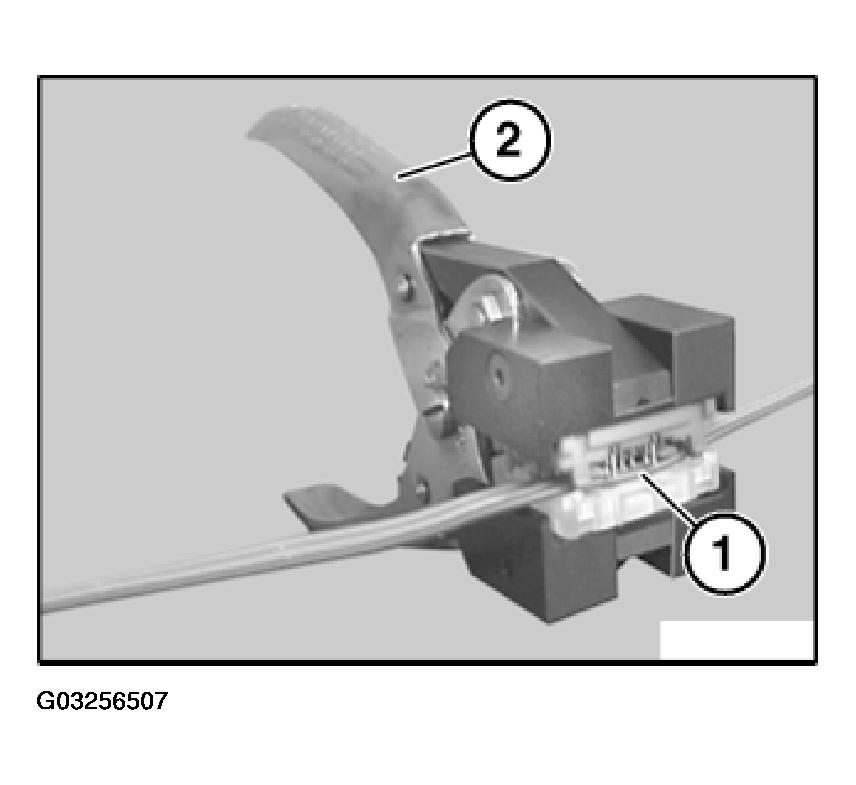

Fig 2: Crimping Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Place connector housing (1) in pliers (2) 61 1 190.

Close pliers (2).
