61 13 ... DME master relay connector

WARNING: This page is about a different variant/trim than selected.

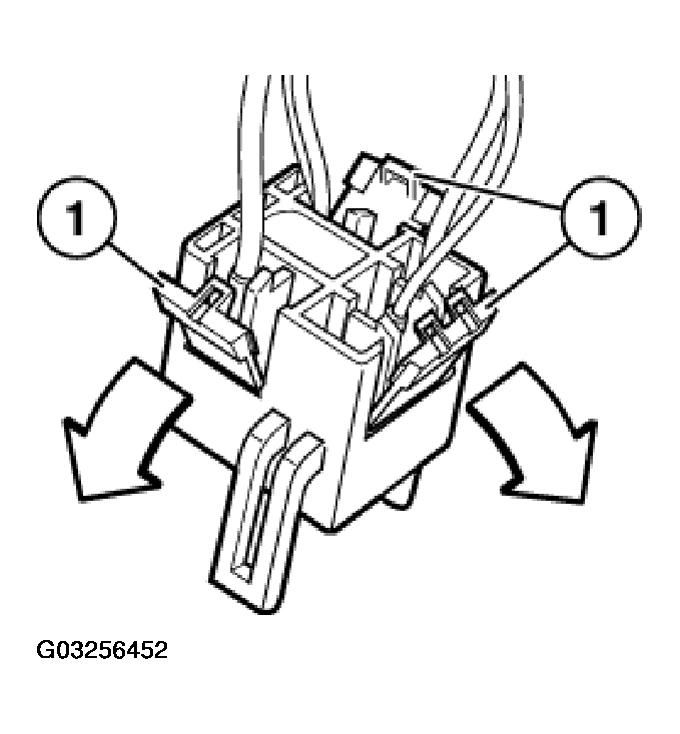

Unlock locking flap (1) of corresponding cable.

Fig 1: Unlocking Locking Flap Of Corresponding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

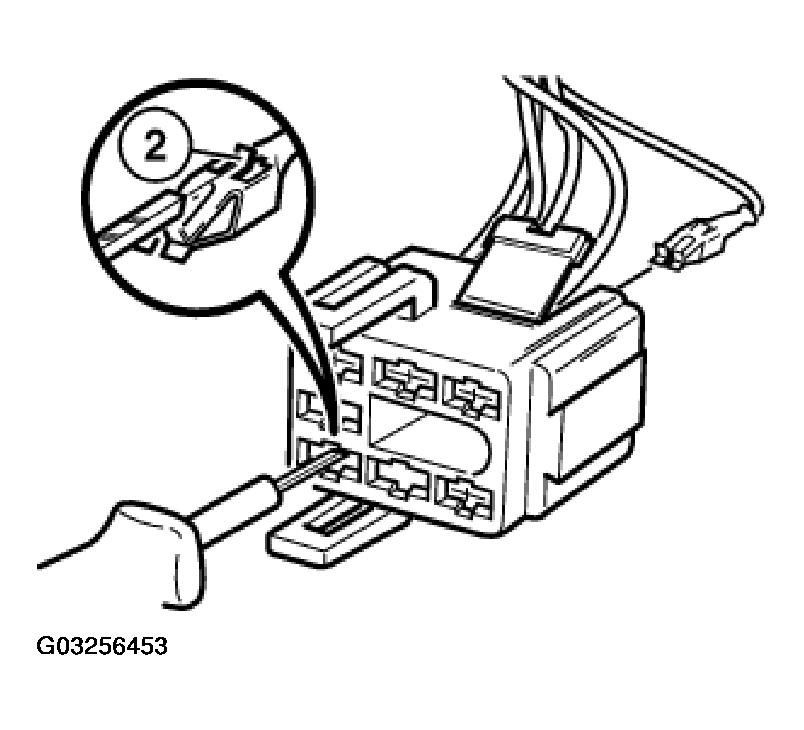

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

Fig 2: Removing Terminal From Connector

Courtesy of BMW OF NORTH AMERICA, INC.
