Stripping Insulation From Optical Fibre

WARNING: This page is about a different variant/trim than selected.

Open pliers (1).

Open lever (2) in direction of arrow.

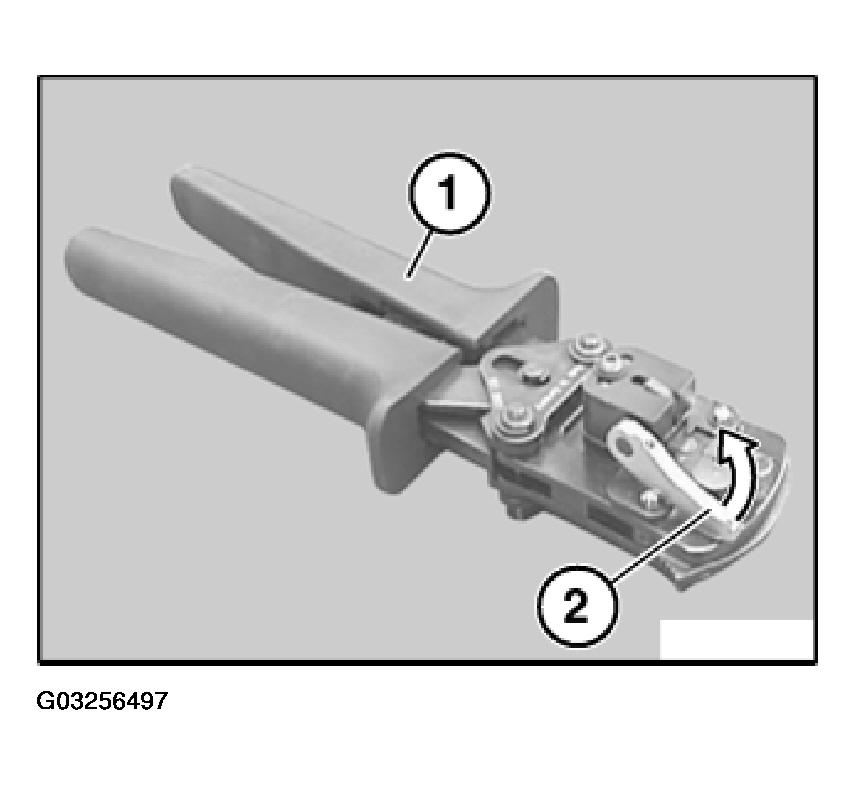

Fig 1: Opening Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

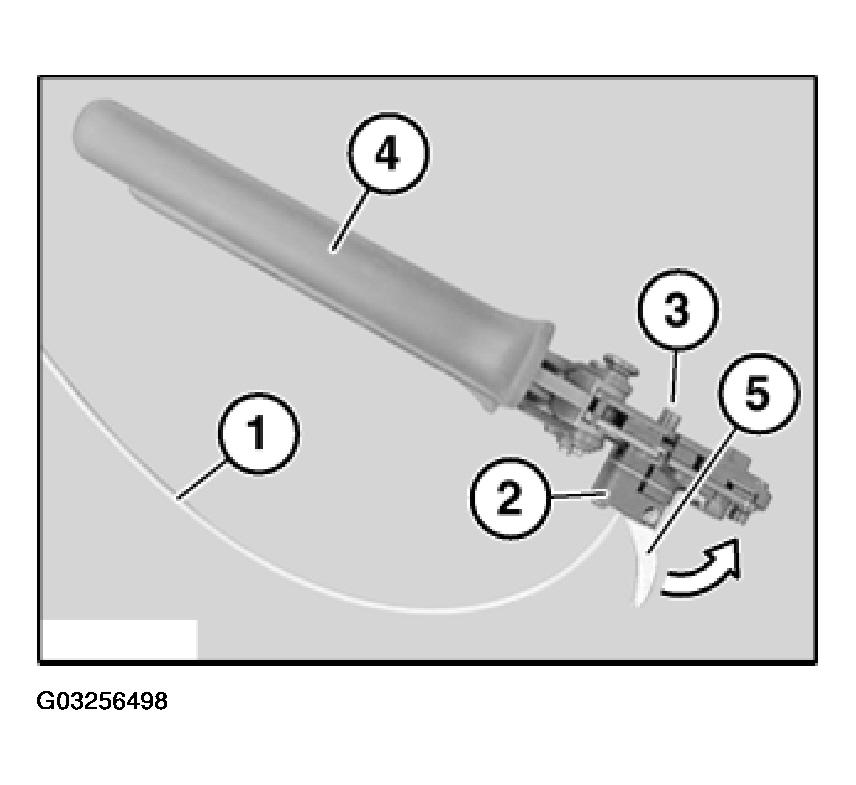

Fig 2: Stripping Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.
