61 13 ... Cutting off, stripping insulation and cutting optical fibres to length: Procedure: Notes

WARNING: This page is about a different variant/trim than selected.

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

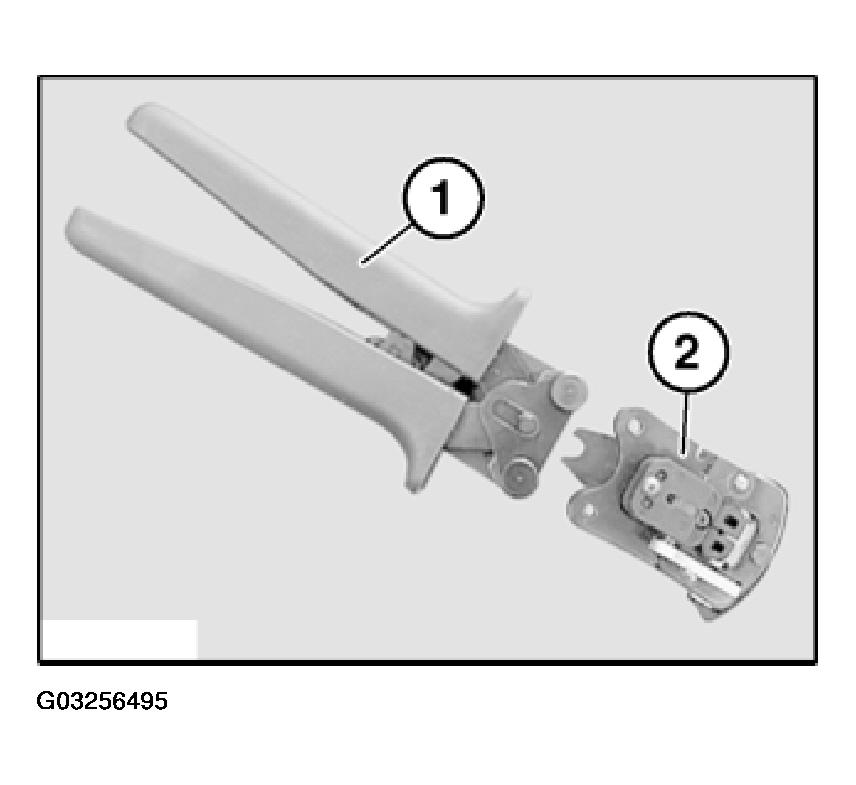

Fig 1: Identifying Pliers 61 4 321 & Optical Fibre Crimping Head 61 4 323
G03256495Courtesy of BMW OF NORTH AMERICA, INC.
