Cutting Optical Fibre

WARNING: This page is about a different variant/trim than selected.

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

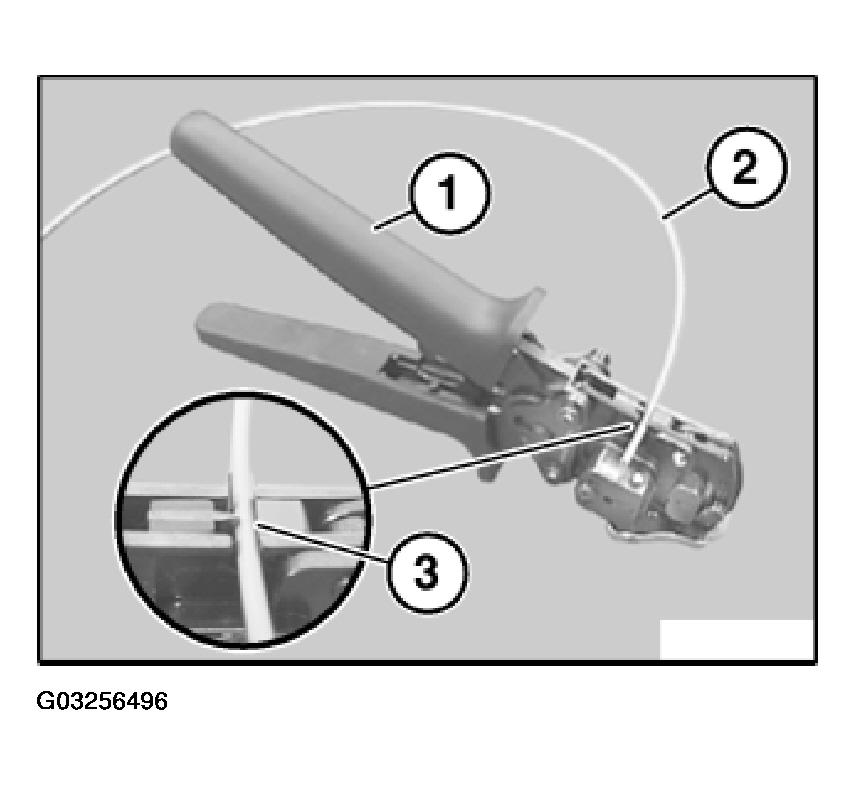

Fig 1: Placing Optical Fibre In Cutting Device
G03256496Courtesy of BMW OF NORTH AMERICA, INC.
