61 13 ... Crimping annular contacts

WARNING: This page is about a different variant/trim than selected.

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

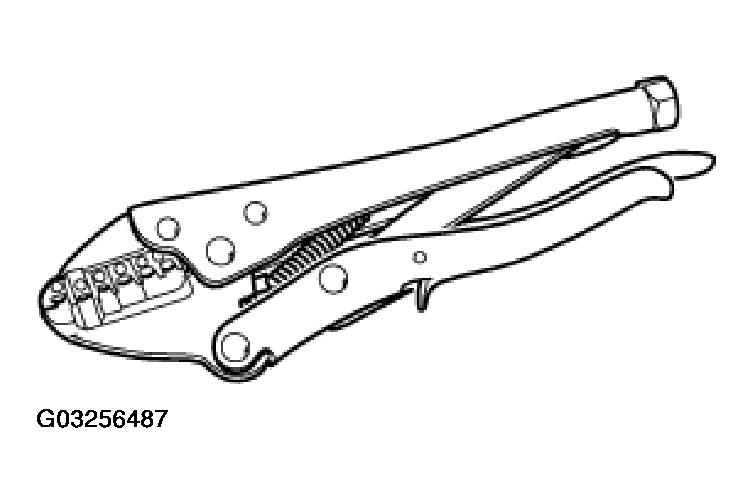

Fig 1: Identifying CrimpacII Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

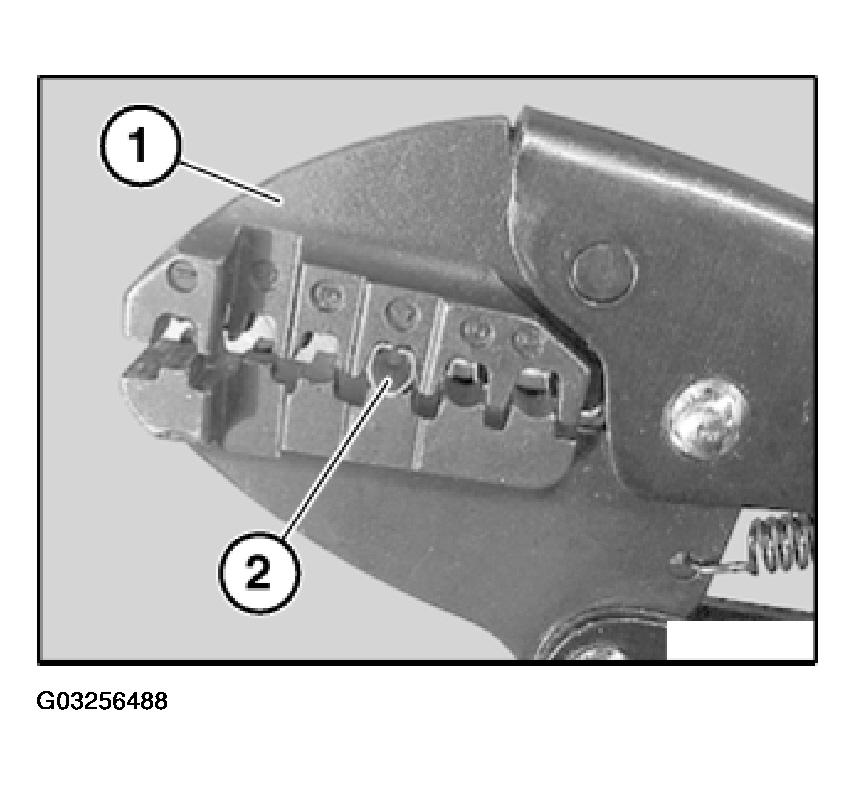

Insert annular contact (2) in crimping pliers (1).

Fig 2: Inserting Annular Contact Into Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.

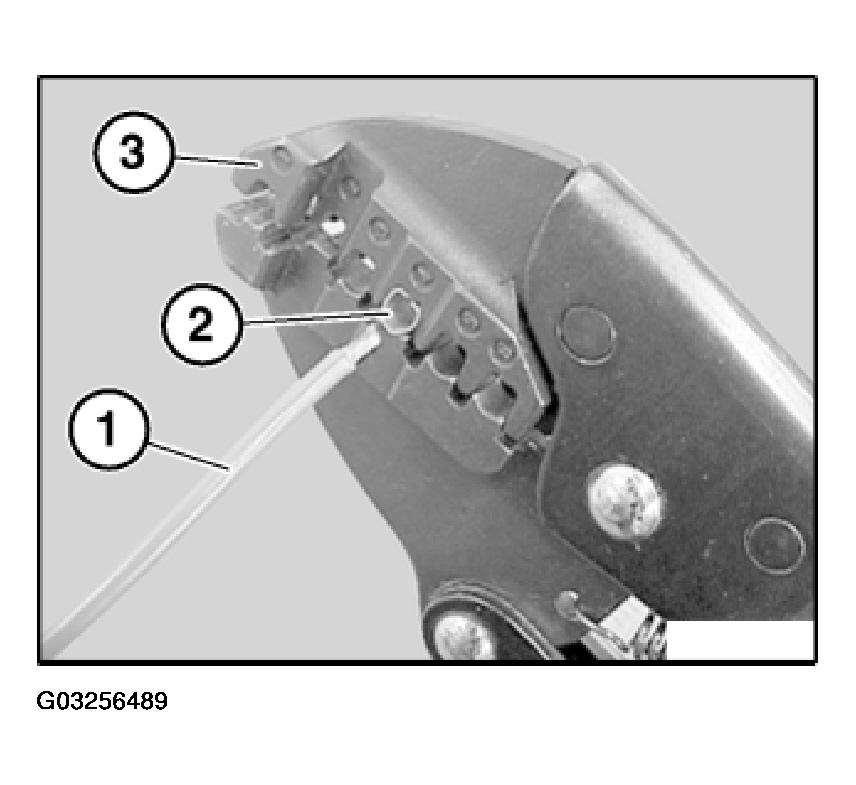

Feed stripped cable (1) into annular contact (2) completely.

Fig 3: Feeding Stripped Cable (1) Into Annular Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
