61 13 ... Crimping Micro Power Quadlock contacts (MPQ): Procedure

WARNING: This page is about a different variant/trim than selected.

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

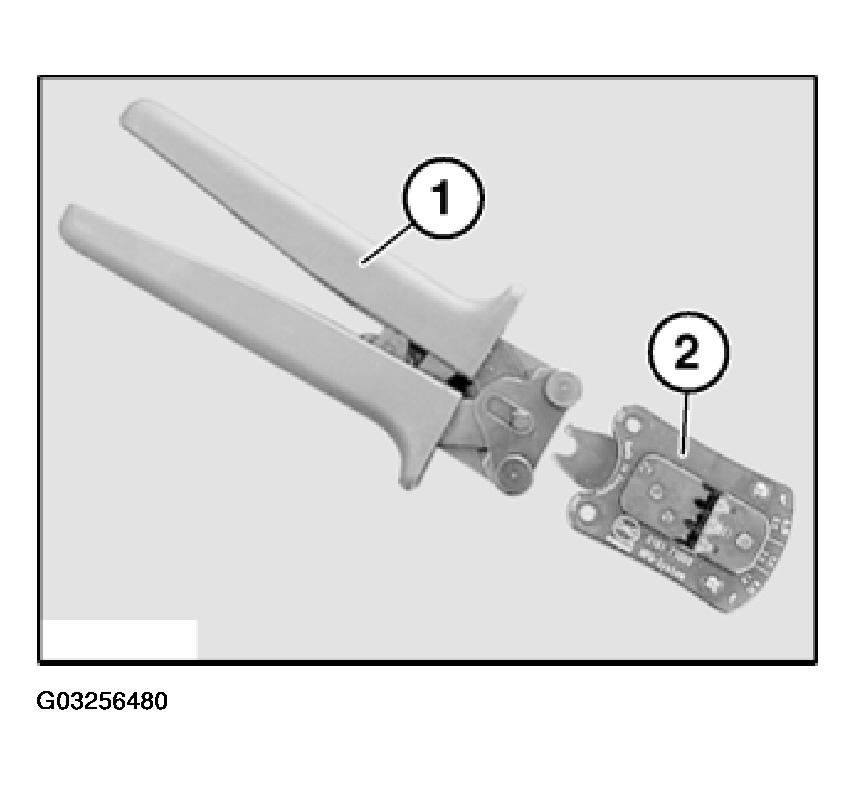

Fig 1: Identifying Crimping Set Pliers 61 4 321 & Crimping Head 61 4 325

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe cable cross-section) in crimping head (3). Make sure it is exactly positioned.
Place MPQ contact (2) in crimping head (3).
Close pliers (1) one notch.

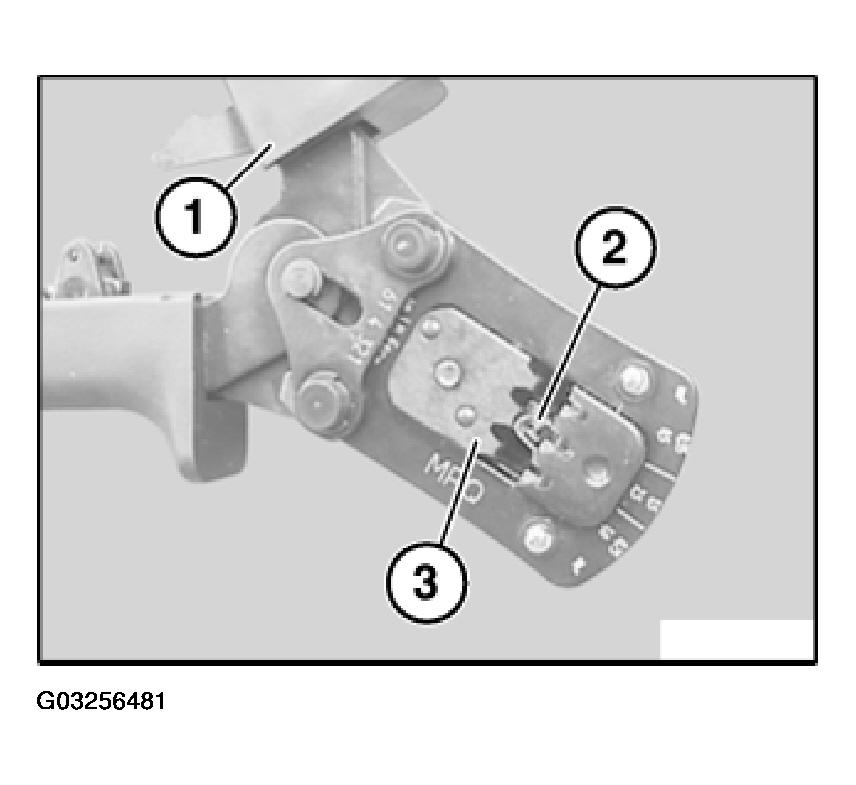

Fig 2: Placing MPQ Contact In Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Insert stripped cable (2).

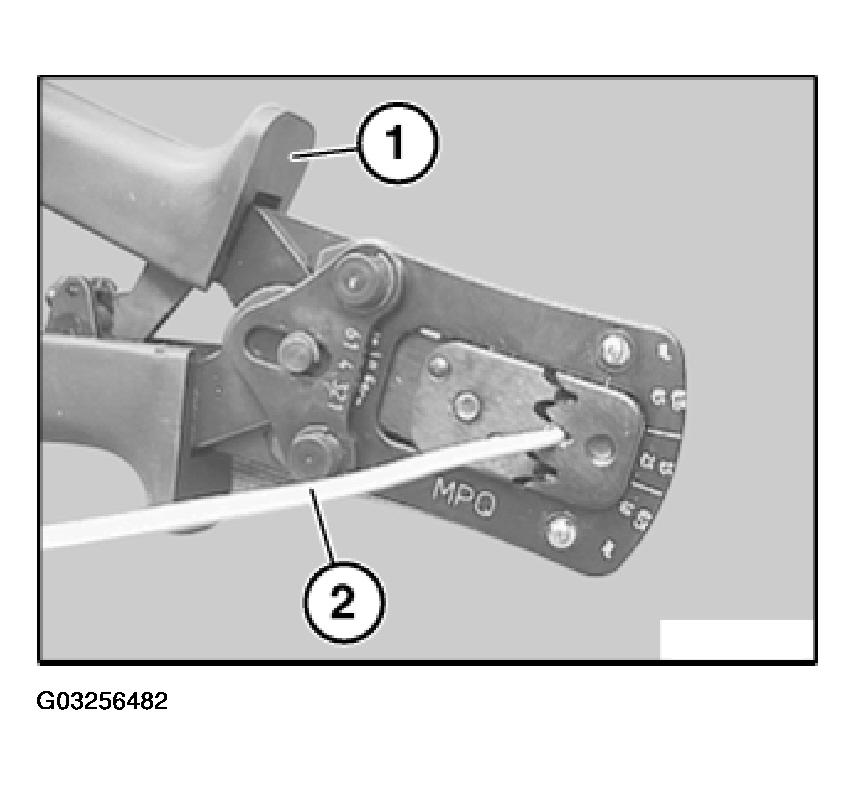

Fig 3: Inserting Stripped Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (1) fully.

Open pliers (1) and remove cable (2).

NOTE: Check contact for correct crimping.
