61 33 000 Replacing horn (anti-theft system)

WARNING: This page is about a different variant/trim than selected.

Unscrew nut (1).

Remove horn (2) from fixture and disconnect plug connection (3).

Remove horn (2).

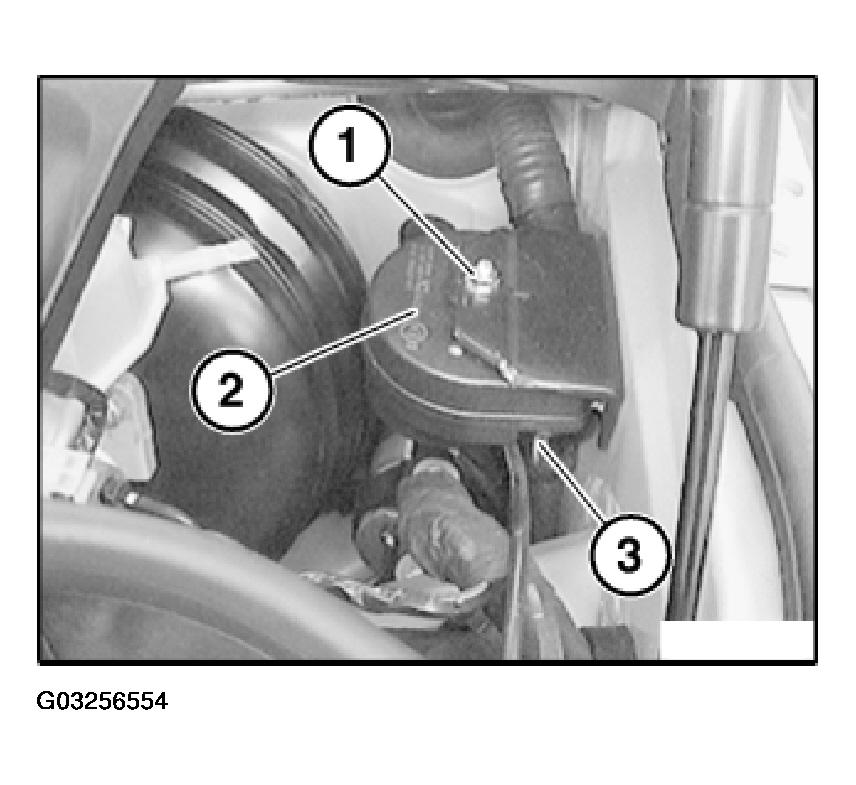

Fig 1: Removing Anti-Theft System Horn
G03256554Courtesy of BMW OF NORTH AMERICA, INC.
