61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

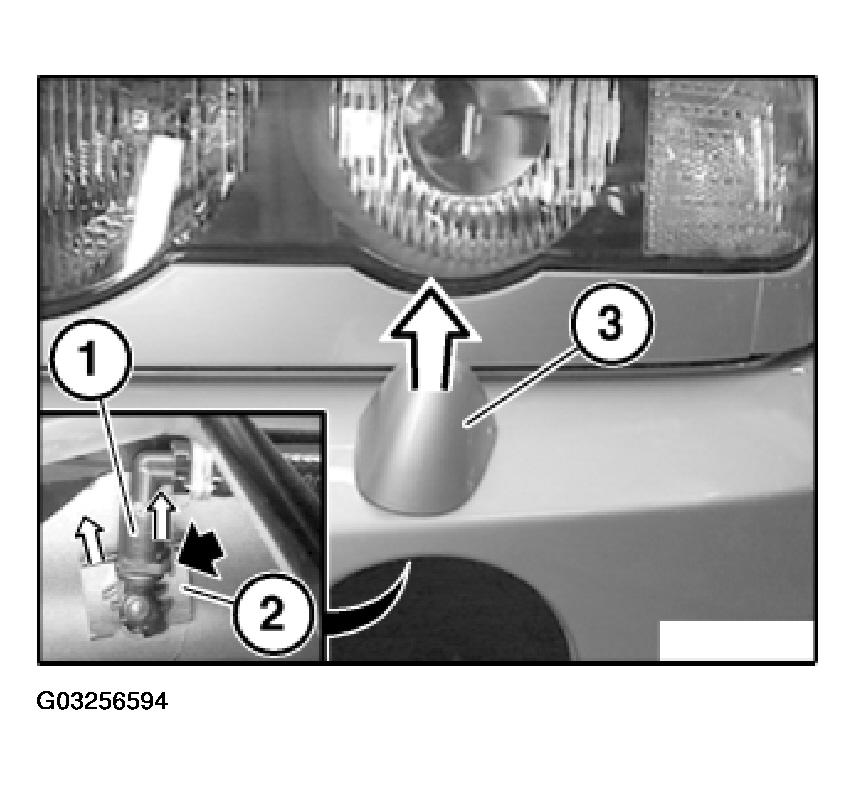

Unlock hose connection (1) and disconnect.

Unlock retainer (2) in direction of arrow and remove.

Pull out spray nozzle of headlight cleaning system (3) in direction of arrow.

Fig 1: Removing Headlight Cleaning System Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

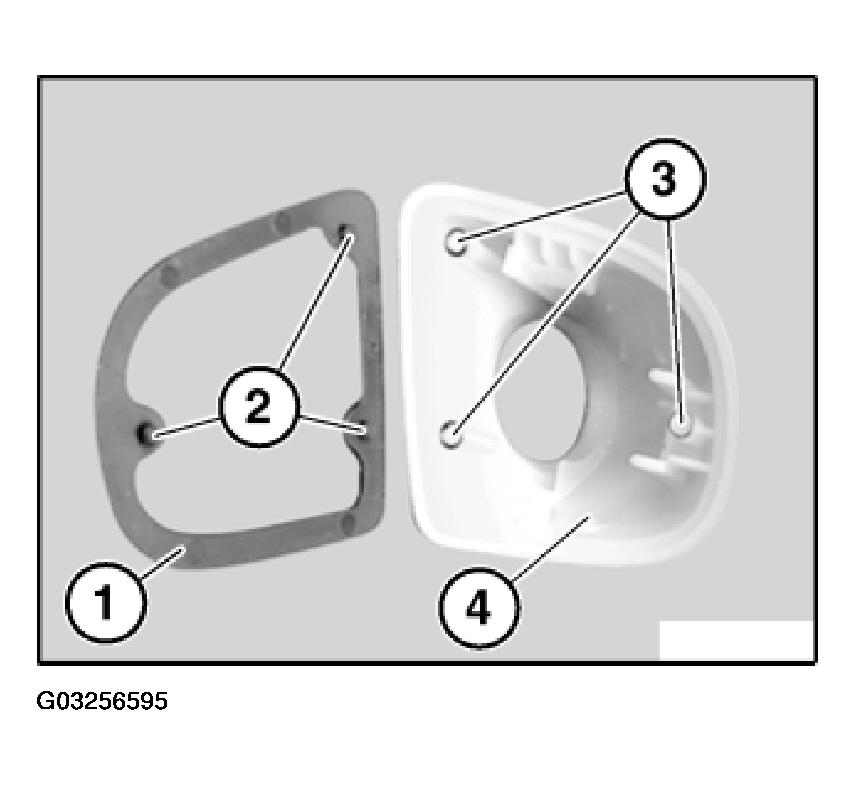

If necessary, replace backing (1).

Guides (2) of backing (1) must be located in openings (3) in trim (4).

Fig 2: Replacing Spray Nozzle Backing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows backing removed.

Replacement:

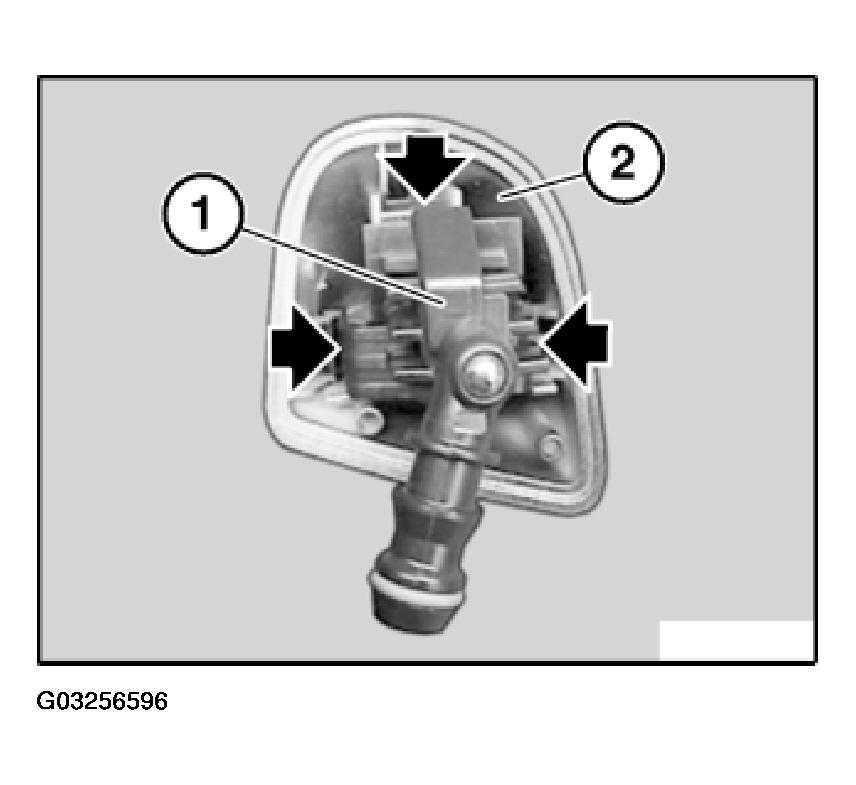

Unclip spray nozzle (1) from trim (2).

Fig 3: Unclipping Spray Nozzle From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
