61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer: Procedure

WARNING: This page is about a different variant/trim than selected.

Remove top section of steering column casing, refer to STEERING COLUMN TRIM (UPPER SECTION) .

Remove lower section of steering column trim, refer to STEERING COLUMN TRIM (LOWER SECTION) .

Disconnect plug connection (1).

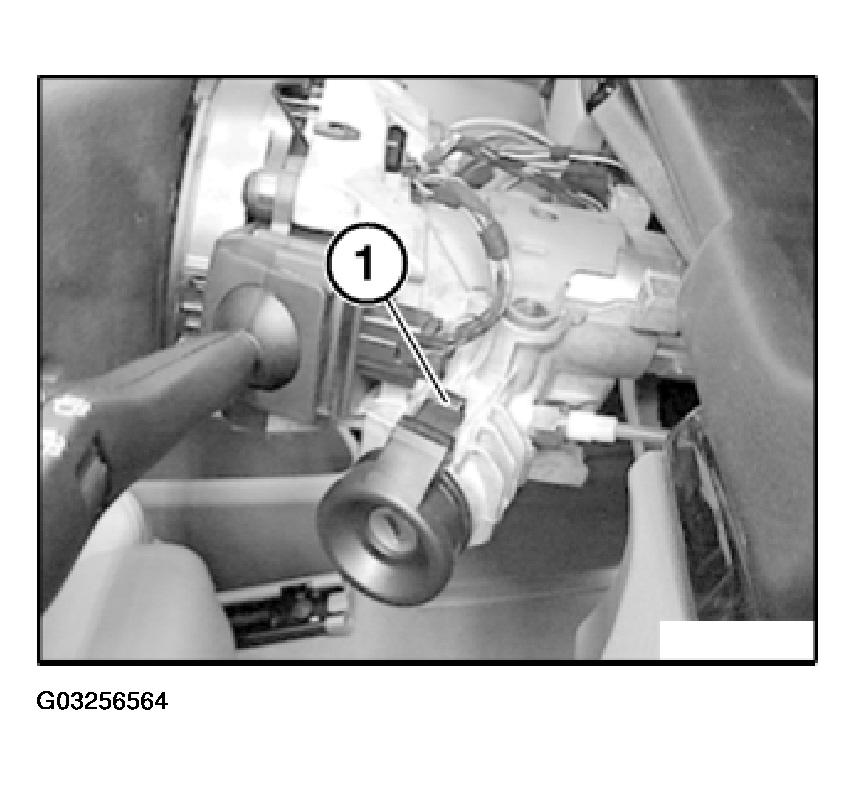

Fig 1: Disconnecting Ring Antenna Of Electronic Immobilizer Harness Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

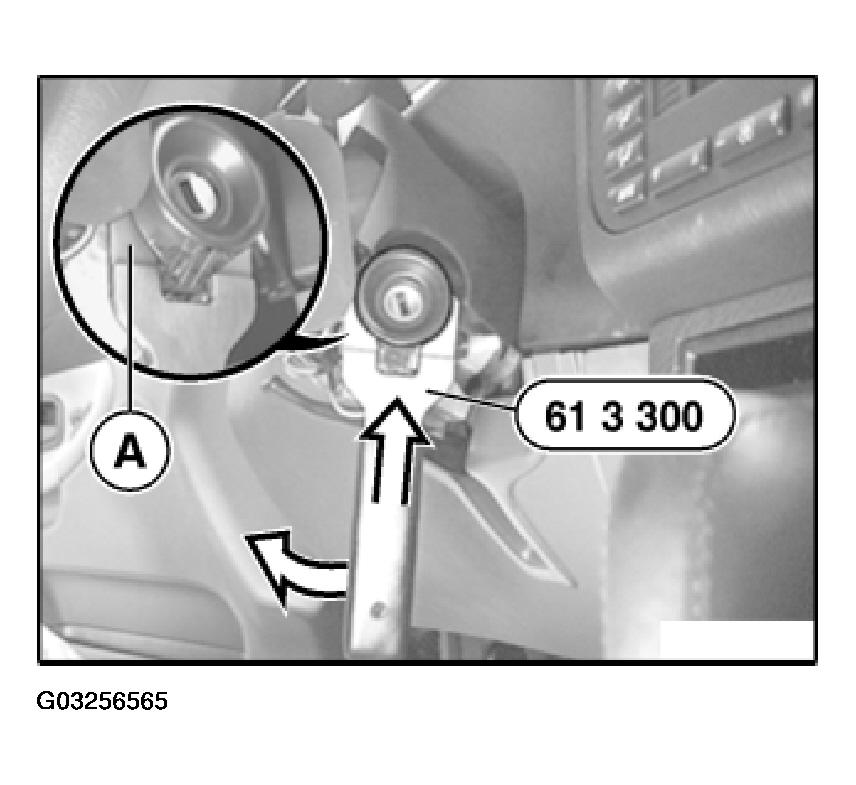

Fig 2: Removing Ring Antenna Of Electronic Immobilizer

Courtesy of BMW OF NORTH AMERICA, INC.
