61 35 795 Removing and installing (replacing) control unit for adaptive headlight

Necessary preliminary tasks:

• Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

Unscrew bolt (1).

Detach air duct for right footwell (2) in direction of arrow.

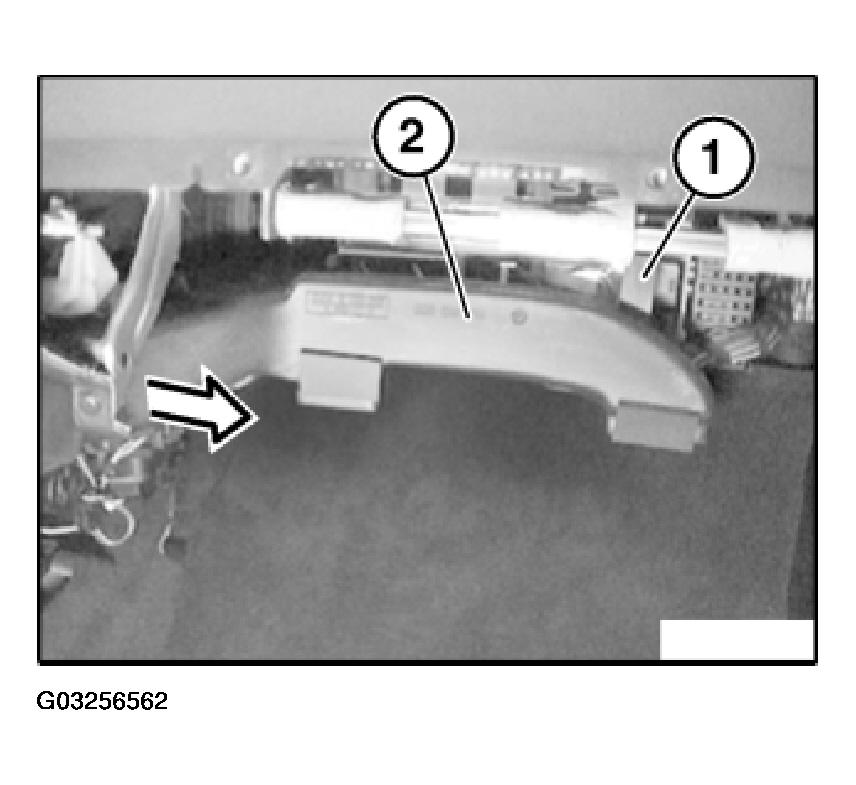

Fig 1: Removing Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock catch (2) towards top.

Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.

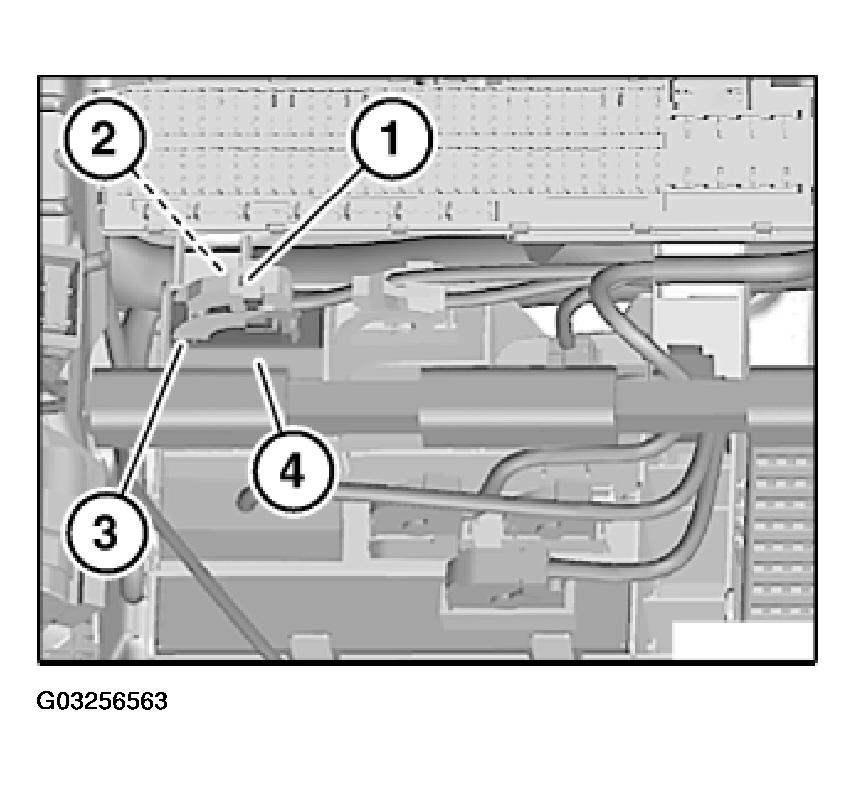

Fig 2: Removing And Installing Adaptive Headlight Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING  .
