61 35 715 Removing and installing/replacing electronic control unit for slide/tilt sunroof (panoramic glass sunroof)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove bracket from roofliner at front, refer to 51 44 020 REMOVING AND INSTALLING/REPLACING BRACKET ON ROOF LINING AT FRONT .
NOTE:

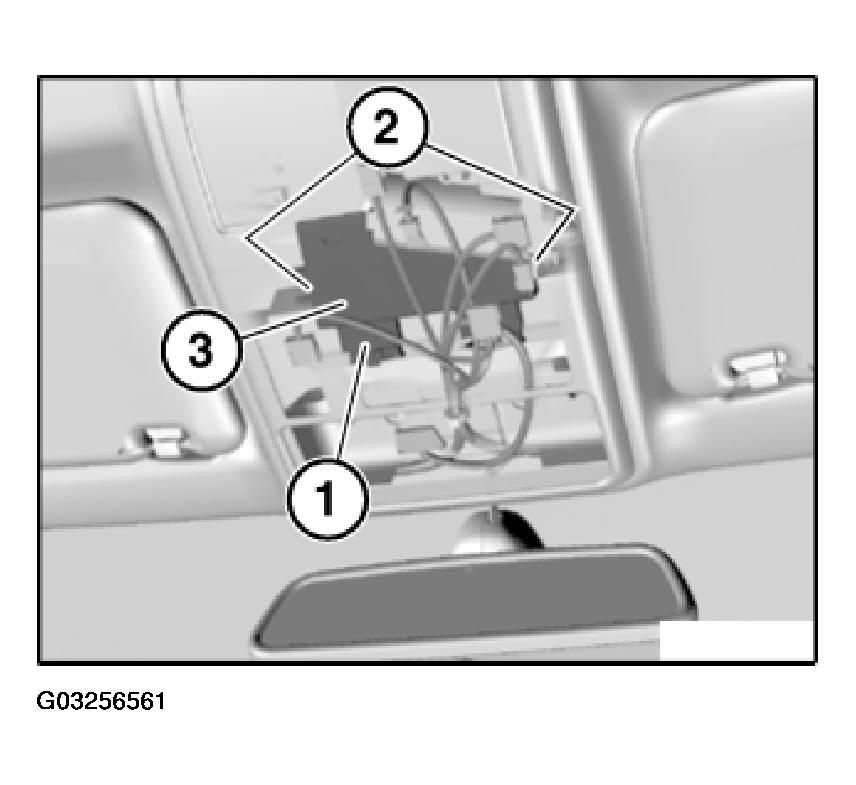

Secure drive for slide/tilt sunroof (3) against falling out.
Release screws (2).
Lower control unit for slide/tilt sunroof (3).
Unlock and disconnect plug connections (1) and remove control unit for slide/tilt sunroof (3).
Installation:
- Initialize slide/tilt sunroof.
Replacement:
Carry out programming/coding.
IMPORTANT:
There is a risk of permanent battery discharge if programming/coding is not carried out!
