35 40 503 Replacing adapter plate
WARNING: This page is about a different variant/trim than selected.
WARNING:
Always replace disassembled adapter plate with a new part.
Retaining clips of old part can be damaged and adapter plate can slide out of steel plate.
This means there is a risk of accident!
Retaining clips of old part can be damaged and adapter plate can slide out of steel plate.
This means there is a risk of accident!
Remove accelerator pedal module. Refer to 35 40 001 REMOVING AND INSTALLING/REPLACING ACCELERATOR PEDAL MODULE .

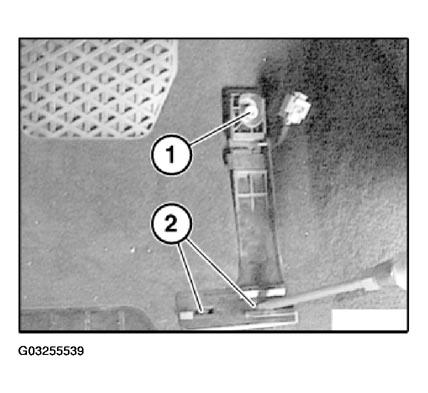

Release screw (1).
Installation: Tightening torque, refer to 35 40 1AZ in PEDALS - REPAIR INSTRUCTIONS - X5 .
Bend retaining clips (2 and 3) to one side and pull out adapter plate towards top.
