18 10... Replacing chrome panel (M62): Procedure

WARNING: This page is about a different variant/trim than selected.

Open weld seams (1).

Open welding spots.

Pull off chrome panel (2).

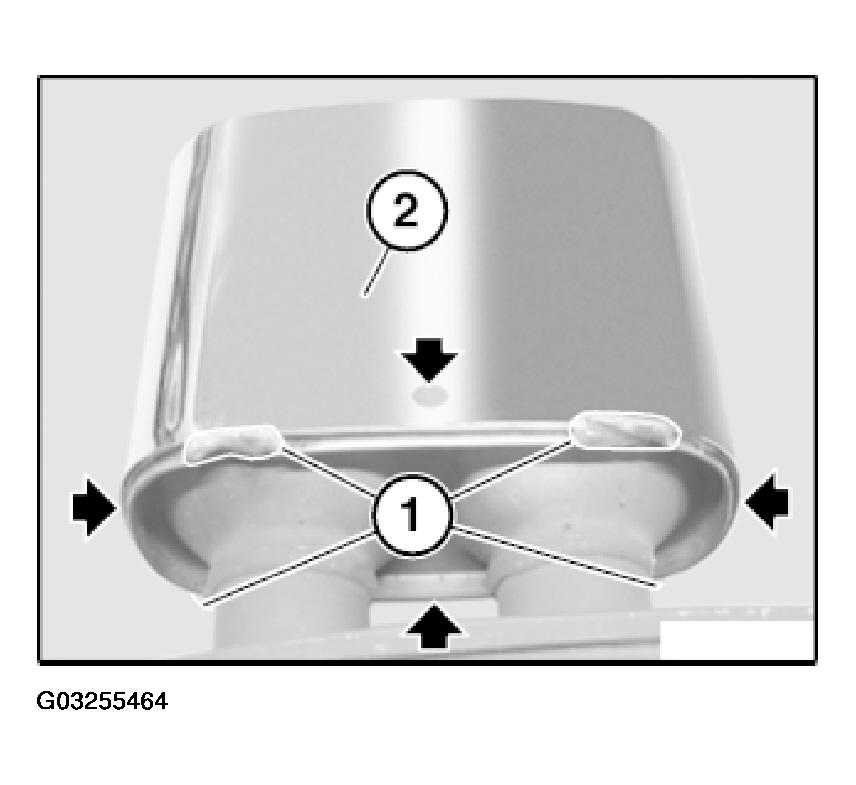

Fig 1: Removing Chrome Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push chrome panel onto rear muffler.

Spacing (A) to edge of rear muffler must be 1-2 mm all round.

Chrome panel must be welded at four points to a length (B) of approx. 25 mm.

Apply plug welding spots to arrowed points.

Apply corrosion protection to welding points.

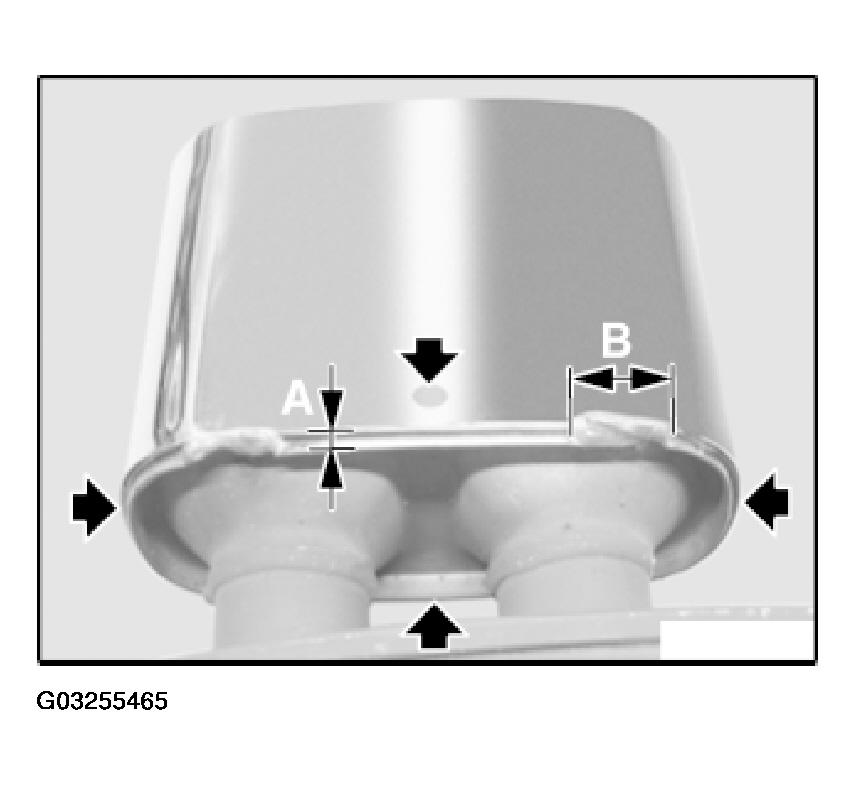

Fig 2: Installing Chrome Panel

Courtesy of BMW OF NORTH AMERICA, INC.
