18 21 051 Replacing all exhaust suspensions (M62, M54): Procedure

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

NOTE: Rubber mounts are colored differently.

Mixing up the rubber mounts will alter the vibration response of the exhaust system.

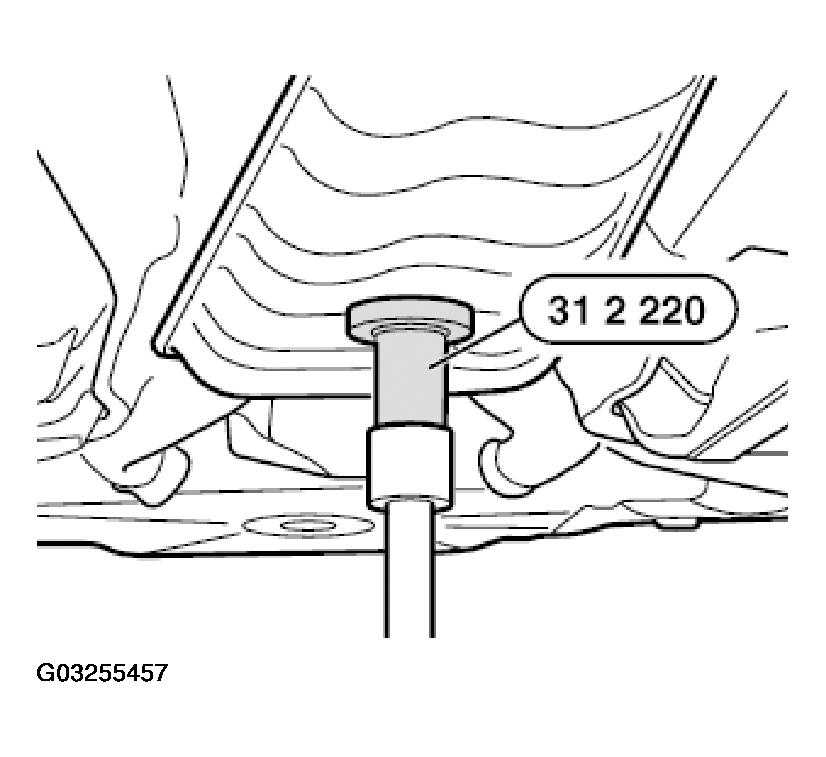

Support exhaust system at intermediate muffler with special tool 31 2 220.

Fig 1: Supporting Exhaust System At Intermediate Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

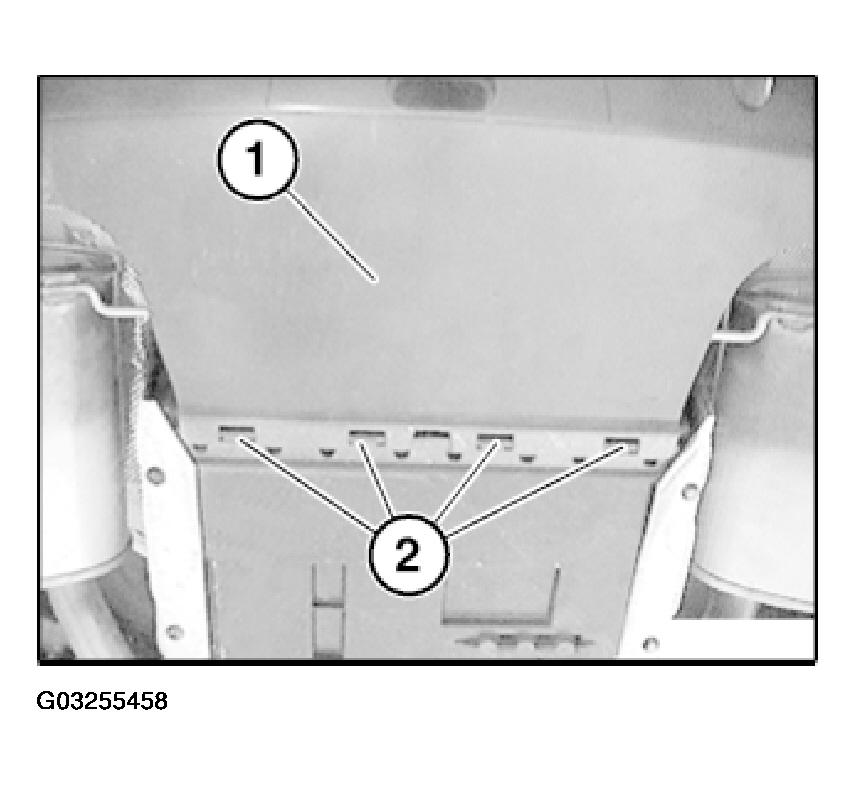

Clip cover (1) out of retainers (2).

Fig 2: Removing Retainer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

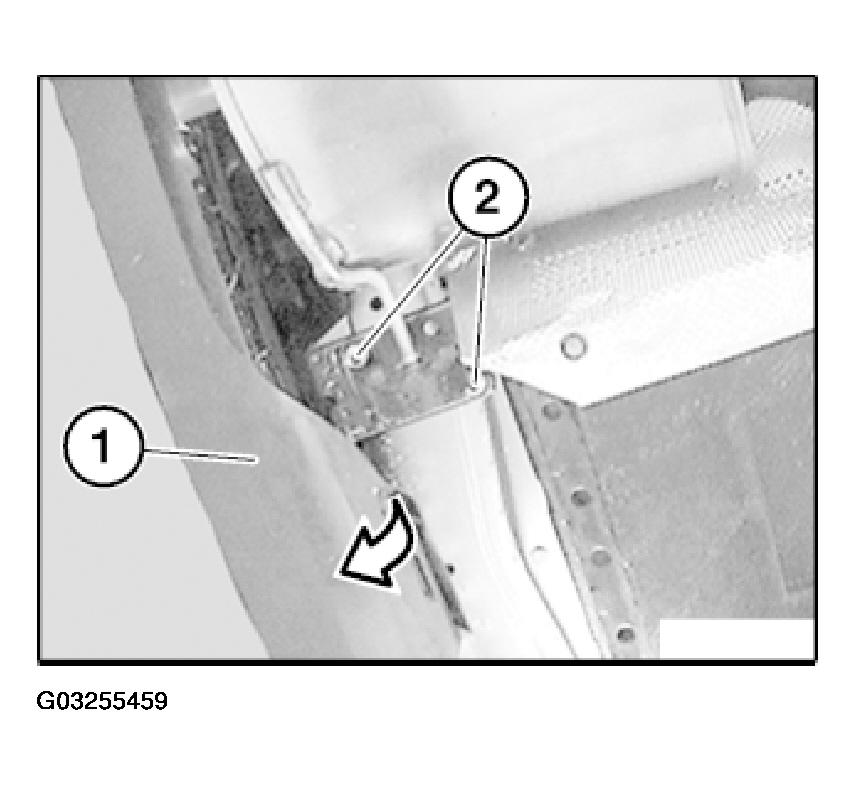

Press cover (1) downwards.

Release screws (2) on rubber mount for rear muffler on left and right.

Fig 3: Removing Rear Muffler Rubber Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

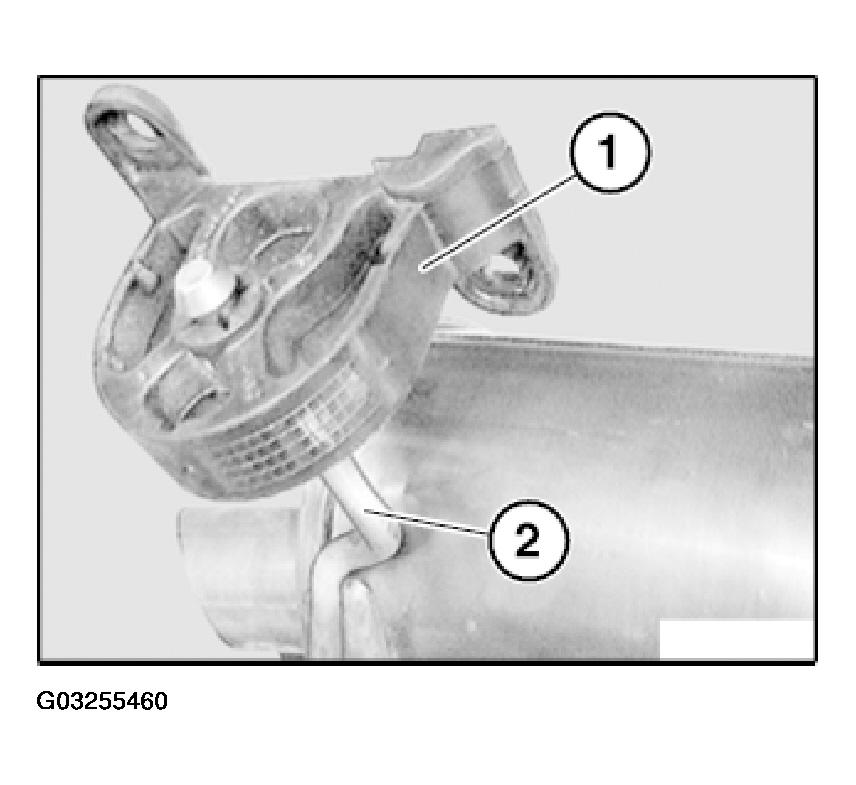

Detach rubber mount (1) from holder (2).

Fig 4: Detaching Rubber Mount From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

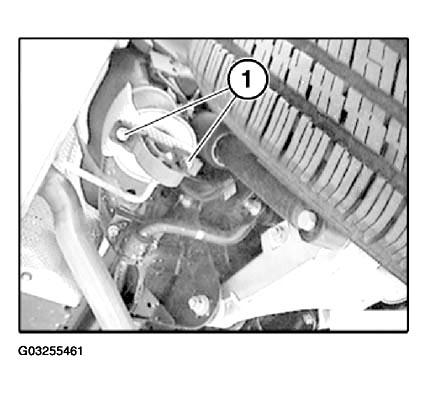

Release screws (1) on rubber mount for rear muffler on rear axle carrier on left and right.

Detach rubber mount from holder.

Replace rubber mounts on rear muffler.

NOTE: Rubber mount for rear muffler on rear axle carrier is red.

Mixing up the rubber mounts will alter the vibration response of the exhaust system.

Fig 5: Removing Rear Muffler Rubber Mount Screws On Rear Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

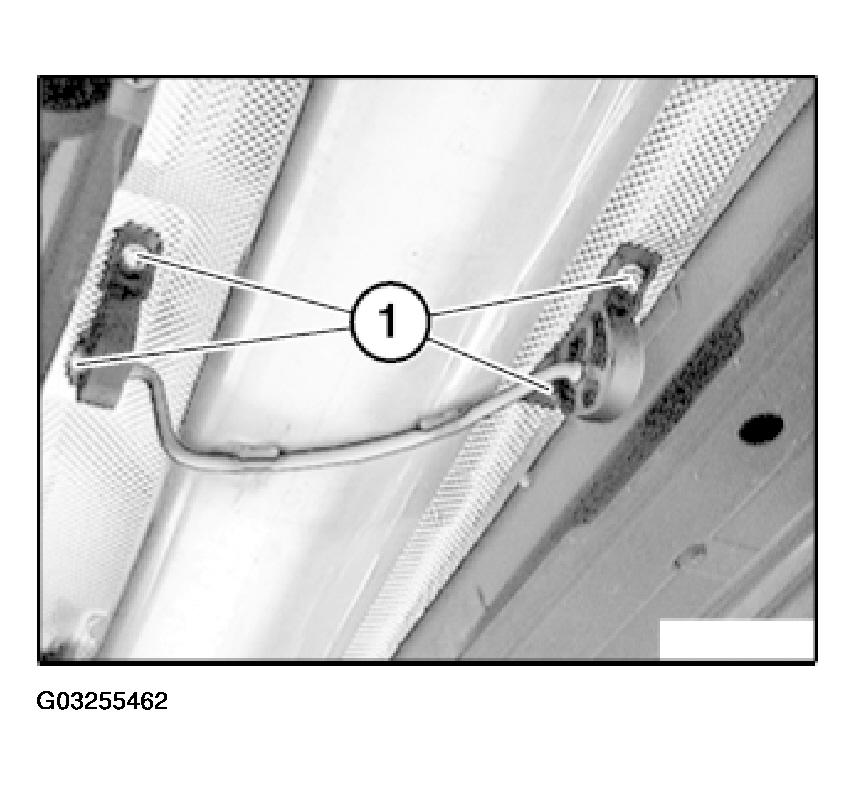

Release screws (1) of rubber mounts for intermediate muffler.

Detach rubber mount from holder.

Replace rubber mounts on intermediate muffler.

Fig 6: Removing Intermediate Muffler Rubber Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

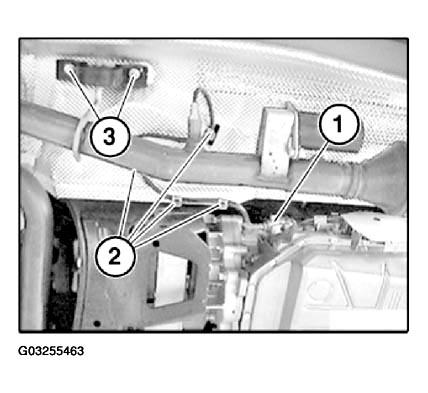

Release screws (3) on rubber mount.

Fig 7: Releasing Rubber Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber mount from holder.

Replace rubber mounts on exhaust pipe.
