18 12 061 Replacing intermediate muffler (M62, M54): Procedure

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

Release screws (1) of rear muffler on intermediate muffler.

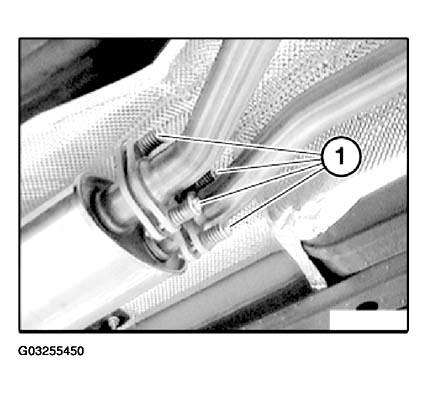

Fig 1: Removing Rear Muffler To Intermediate Muffler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Detach both rear mufflers from intermediate muffler.

NOTE: For the following work steps, some illustrations of the exhaust system of another BMW car are used.

Measure length (B) of pipe sections on new intermediate muffler.

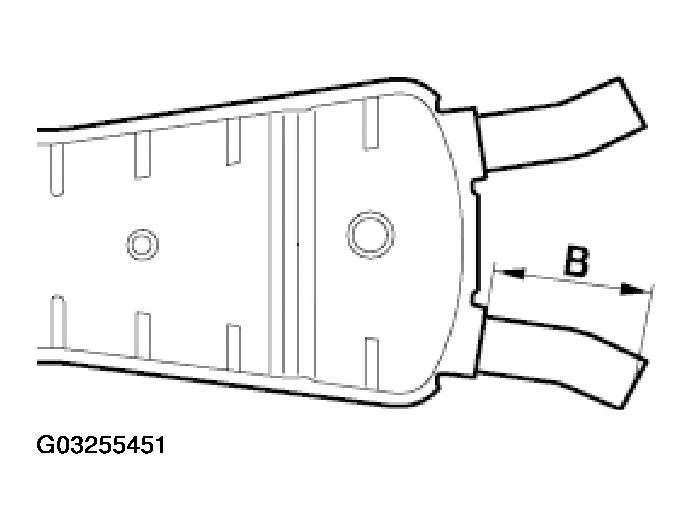

Fig 2: Measuring Length Of Pipe Sections On New Intermediate Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Transfer determined distance (B) to new installed intermediate muffler.

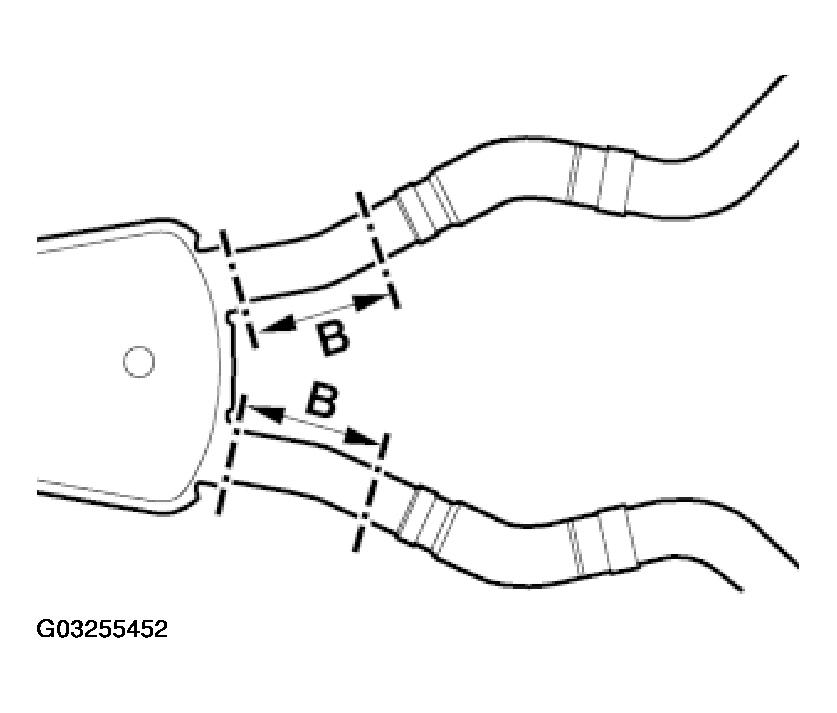

Fig 3: Identifying Determined Distance Of New Installed Intermediate Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through and deburr both exhaust pipes at determined point between catalytic converter and intermediate muffler with special tool 00 2 210.

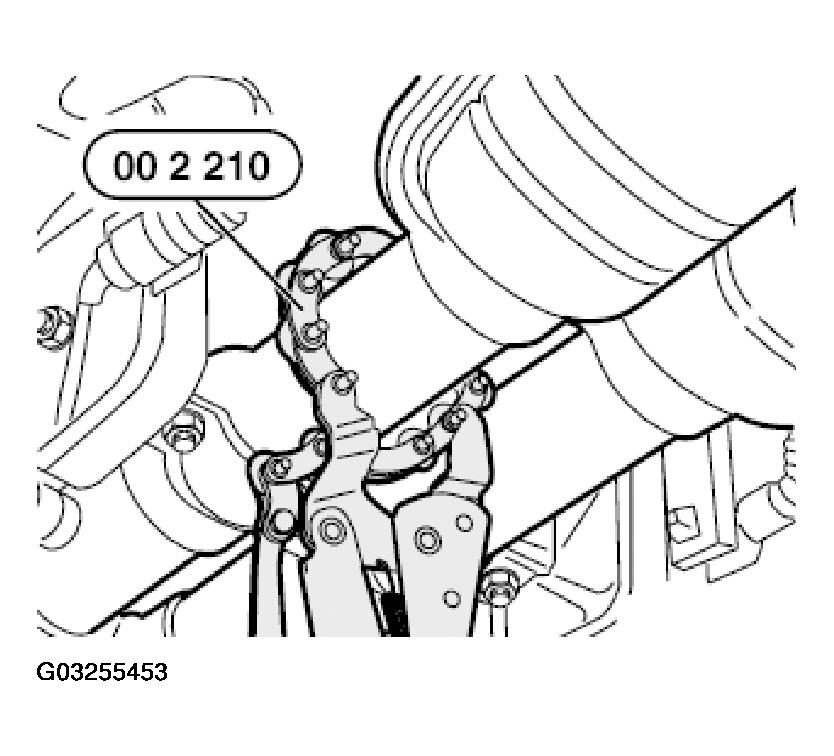

Fig 4: Cutting Exhaust Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on rubber mounts and remove intermediate muffler.

Detach rubber mounts from old intermediate muffler and push onto bracket of new intermediate muffler.

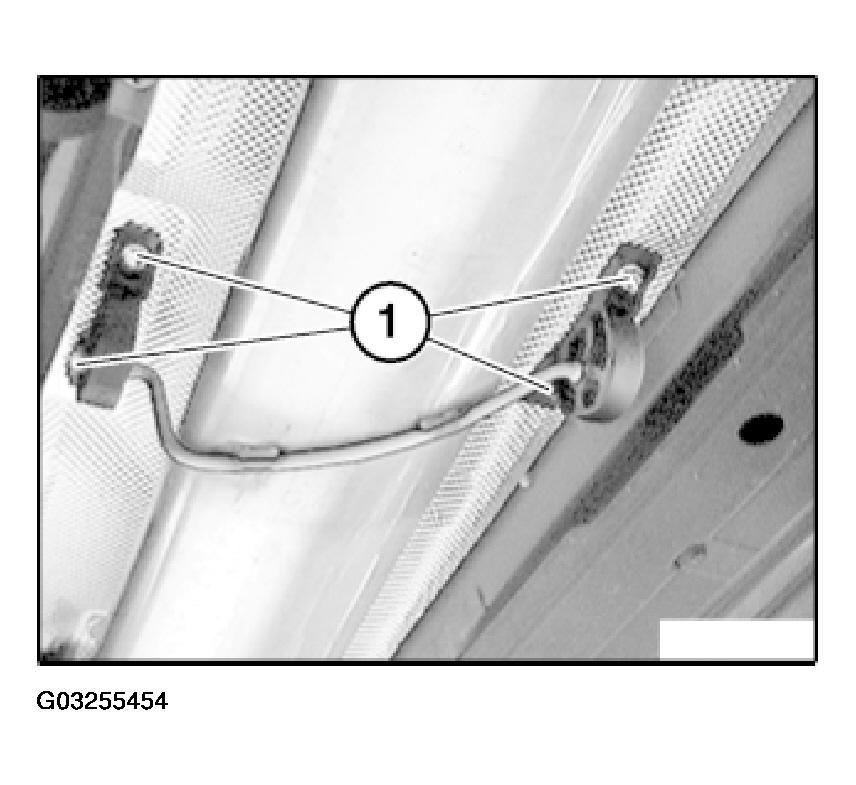

Fig 5: Removing Intermediate Muffler Rubber Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

The apertures on the new intermediate muffler are sealed with adhesive film.

Completely remove adhesive film from new intermediate muffler.

Make sure there are no foreign bodies in intermediate muffler.

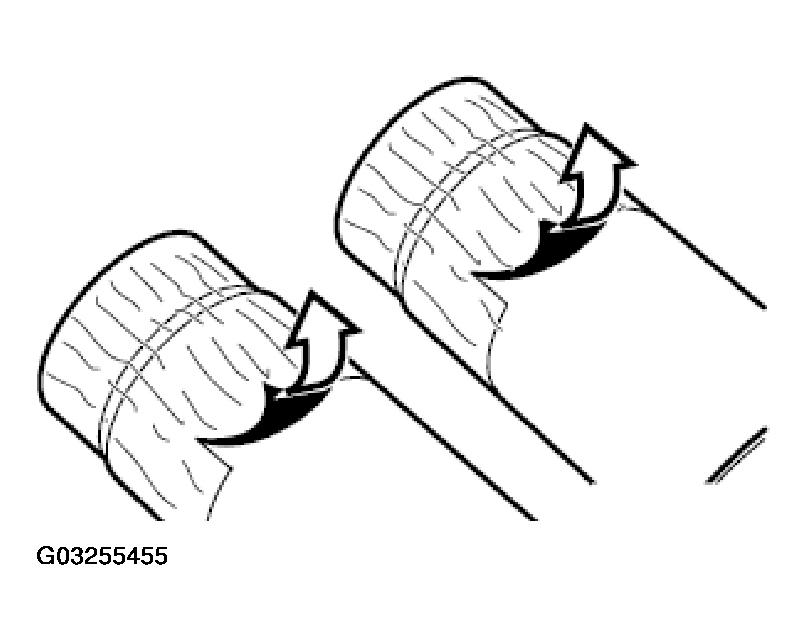

Fig 6: Removing Adhesive Film From New Intermediate Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Connect new intermediate muffler and catalytic converters using clamping sleeves.

Installation:

Nuts point downwards.

Align clamping sleeves so that:

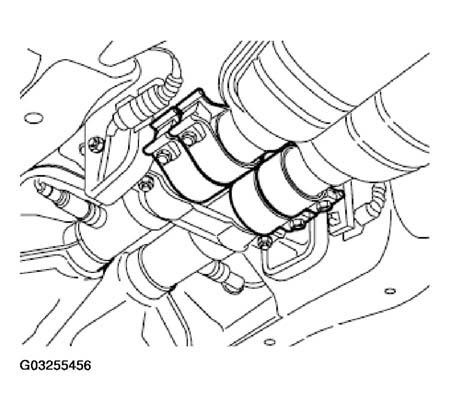

Fig 7: Connecting New Intermediate Muffler

Courtesy of BMW OF NORTH AMERICA, INC.
