54 13 150 Removing And Installing Rear CROSSMEMBER

Necessary preliminary tasks:

• Remove glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
• Remove control unit omitted
• Remove drive omitted, refer to 67 61 517 REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF)

Release screws in marked area.

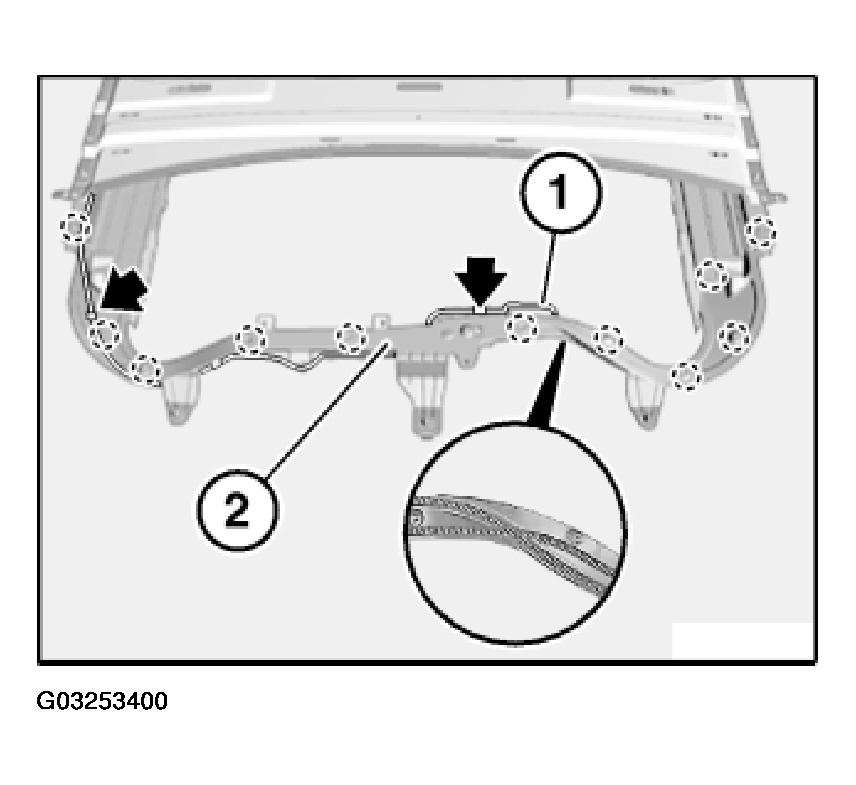

Fig 1: Removing Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cross-member (2) out of wiring harness (1) during removal.

Installation:

Pitch cables must be correctly laid diagonally in guide.
