54 10 070 Removing And Installing/Replacing Slider Set For Floating ROOFLINER

Necessary preliminary tasks:

• Remove glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
• Remove rear floating roofliner, refer to 54 13 070 REMOVING AND INSTALLING/REPLACING BOTH FLOATING ROOFLINERS FOR GLASS SLIDE/TILT SUNROOF
• Remove fan grille, refer to 54 13 070 REMOVING AND INSTALLING/REPLACING BOTH FLOATING ROOFLINERS FOR GLASS SLIDE/TILT SUNROOF
• Remove drive unit with gearing, refer to 67 61 517 REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF)

Unclip end stops (1) on left and right from guide channel.

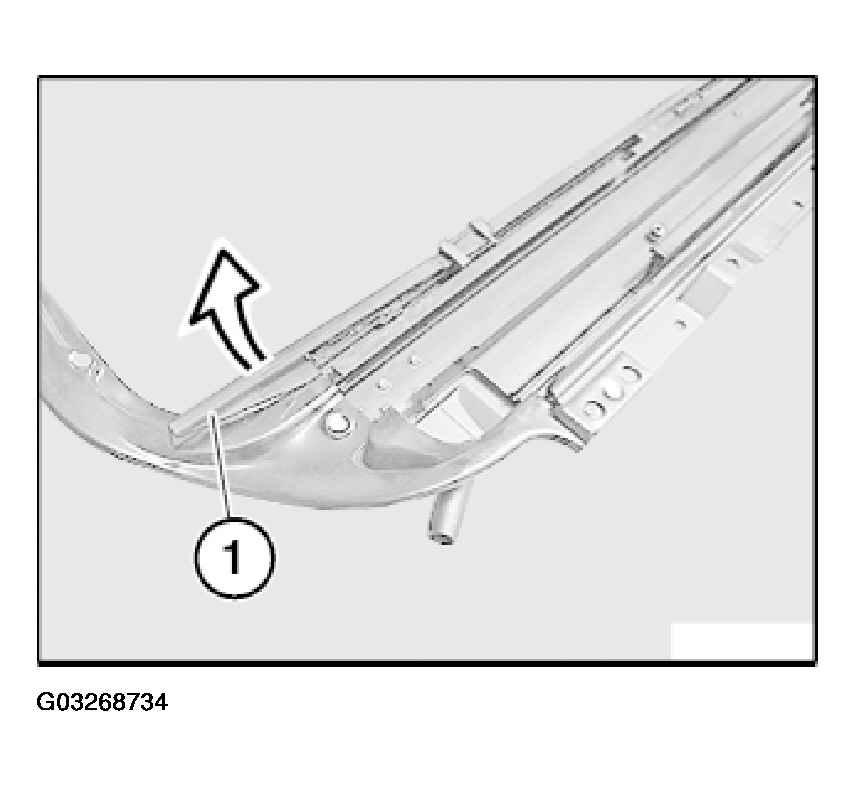

Fig 1: Removing End Stops

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage end stops at front and clip into place by applying pressure.

Carefully unclip slide block (1) on left and right (risk of damage). Pull driver for rear floating roofliner (2) and slider set (3) towards rear out of guide.

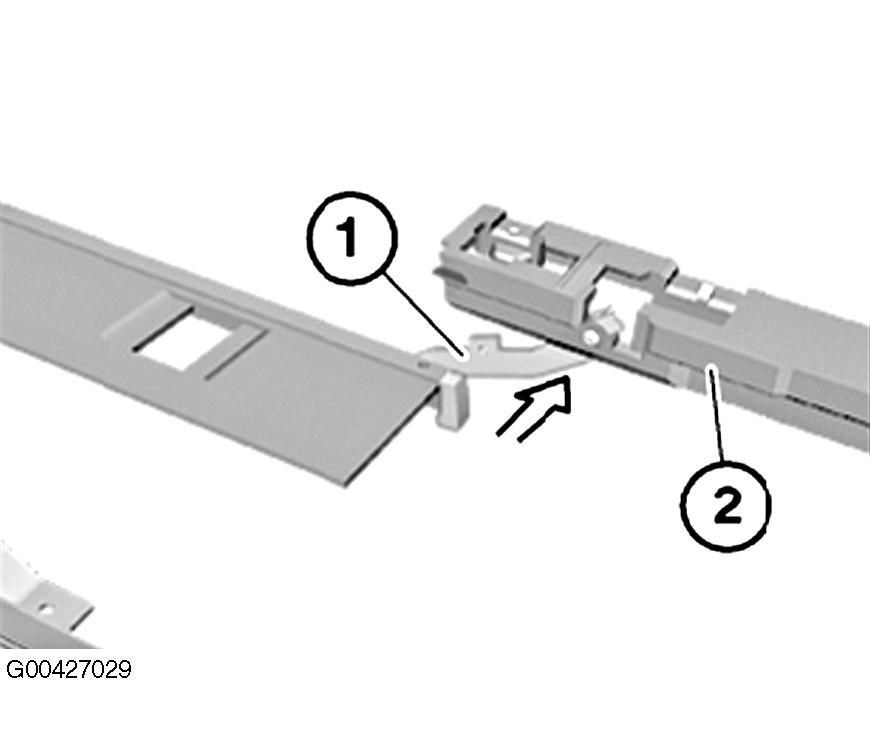

Fig 2: Locating Slide Block

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage rocker arm (1) from driver for rear floating roofliner (2).

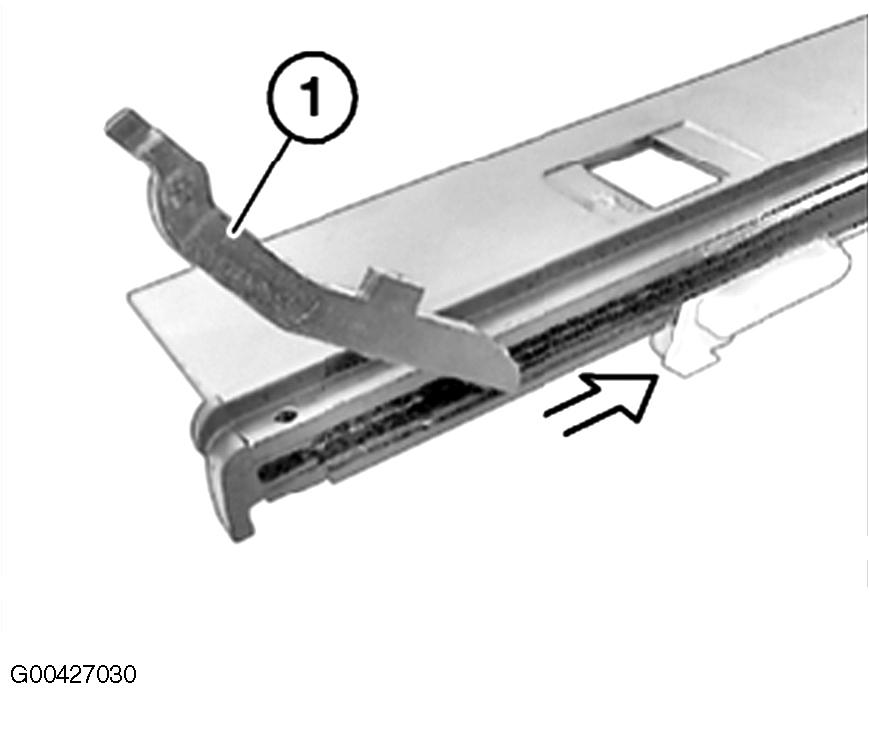

Fig 3: Disengaging Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rocker arm (1) from rail and replace if necessary.

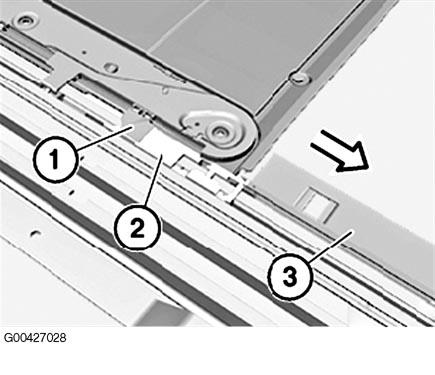

Fig 4: Removing Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.
