54 12 496 Removing and installing or replacing wind deflector

WARNING: This page is about a different variant/trim than selected.

Open slide/tilt sunroof.

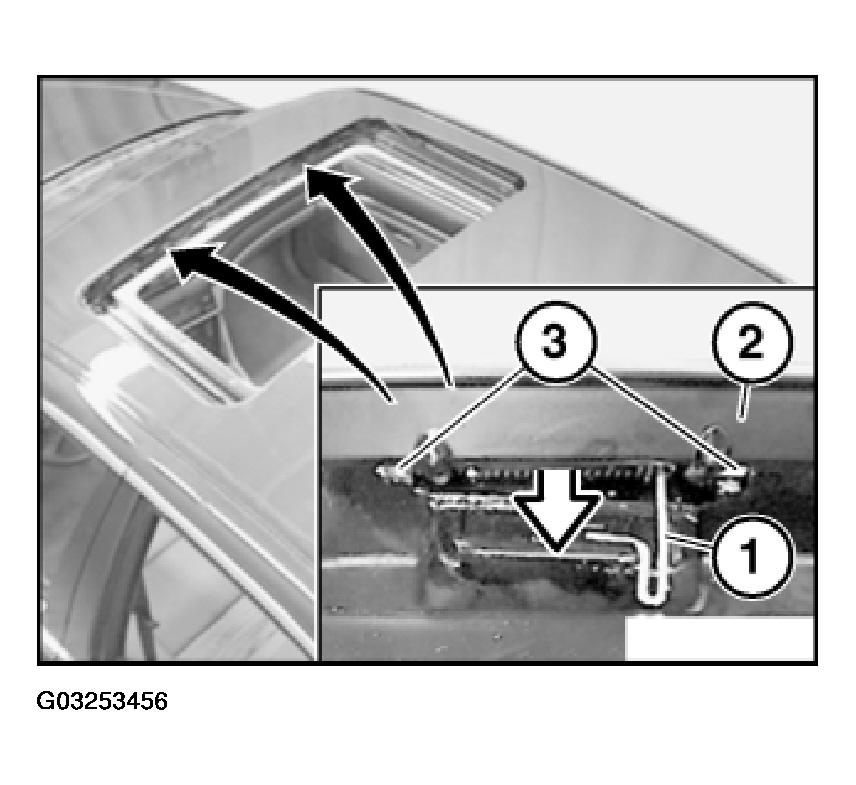

Lift out left/right spring (1) and pull wind deflector (2) backwards slightly to remove from mount (3).

Fig 1: Removing Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install spring (1) correctly.

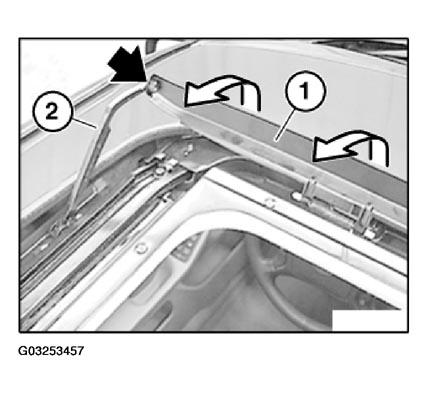

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

Fig 2: Pulling Off Left/Right Lever

Courtesy of BMW OF NORTH AMERICA, INC.

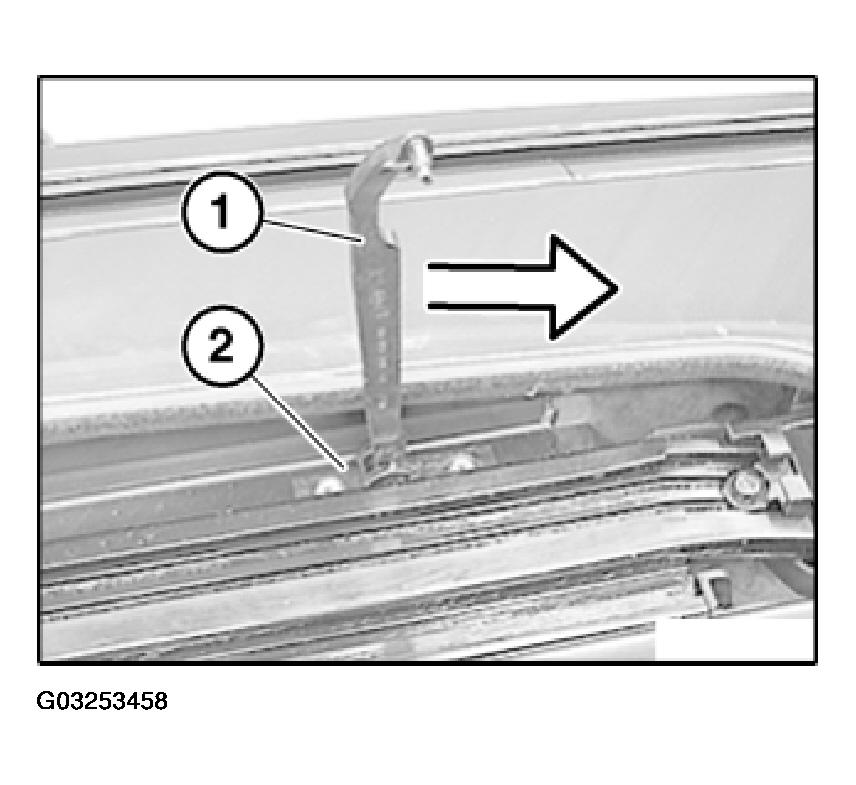

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Fig 3: Removing Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
