54 12 210 Removing and installing complete slide/tilt sunroof (frame)

Remove drive unit with transmission for slide/tilt sunroof actuation, refer to DRIVE, SLIDE-TILT SUNROOF .

Remove headliner, refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF)

Remove water drain hoses (1) at front / rear.

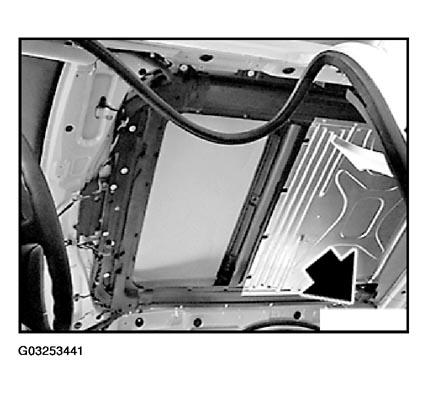

Fig 1: Removing Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten Omega clips (2).

Unfasten screws (1) at front and (2) at left/right.

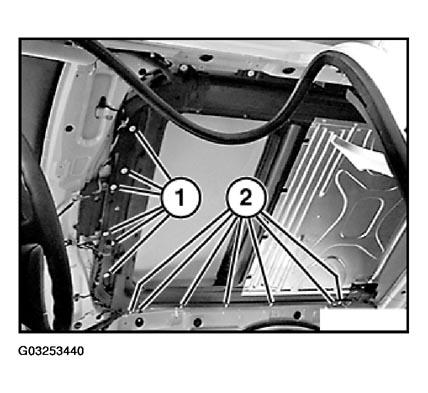

Fig 2: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook left/right clip and lower slide/tilt sunroof frame slightly.

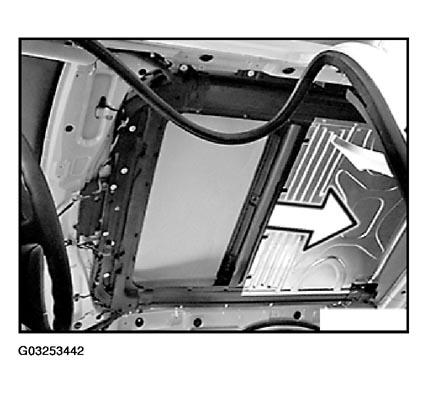

Fig 3: Unhooking Left/Right Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fold up back of frame until rear clips can be unfastened.

Slide slide/tilt sunroof frame backwards and lift out through right rear door.

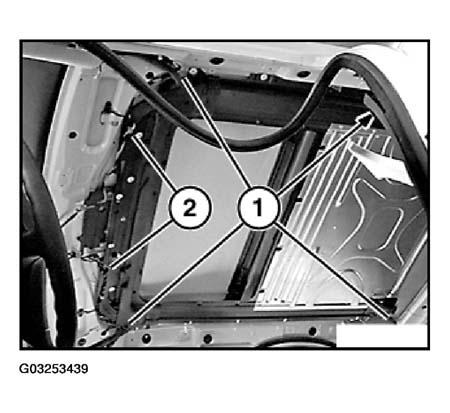

Fig 4: Removing Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert slide/tilt sunroof frame in sheet metal slot at front.

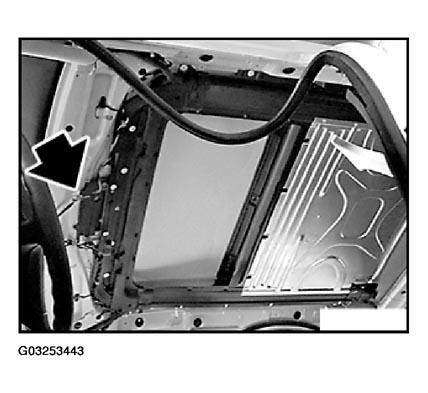

Fig 5: Installing Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.
