54 12 120 Replacing Seal For Slide/Tilt Sunroof Lid

Observe note on repairing bonded seals on slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .

Open slide/tilt sunroof completely.

Begin removal at contact edge (mostly rear center):

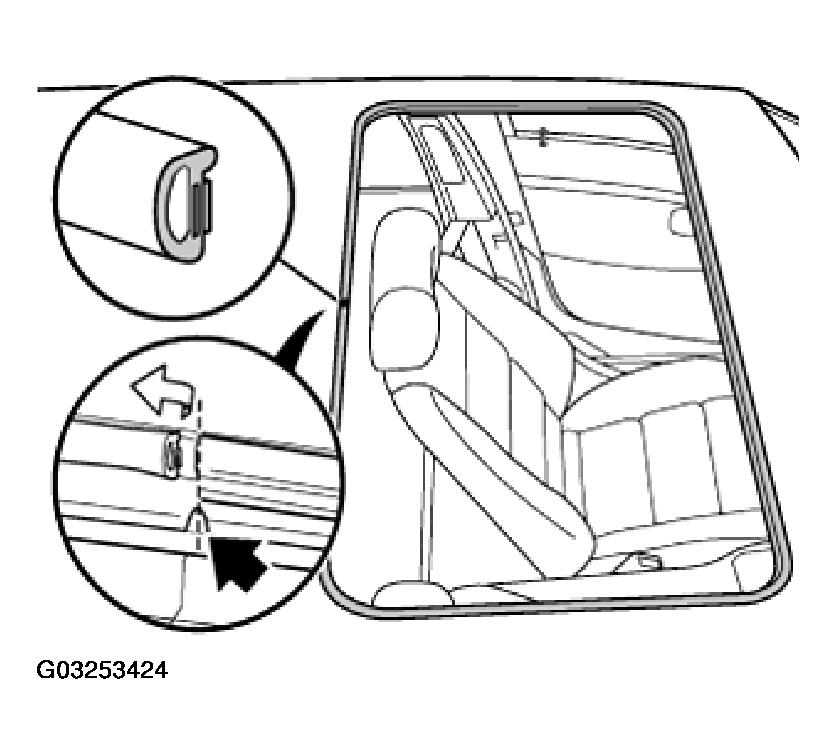

Fig 1: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

• Peel off rubber seal
• Clean bonded area

Installation:

Also begin at specified point of contact edge for installation:

• Stick on rubber seal in sections
• Establish seal joint
• Press on seal
