54 13 105 Removing And Installing/Replacing Rear Drip Molding
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
- Remove glass slide/tilt sunroof lid at rear, refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER

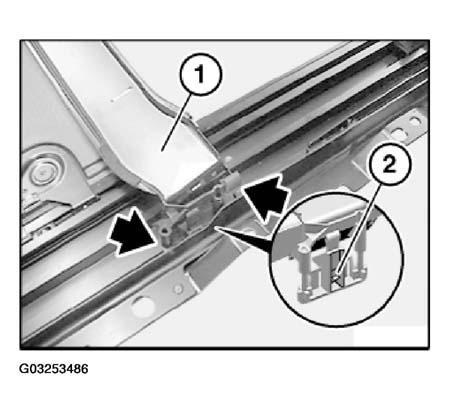

Unlock tab (2) and remove drip molding (1) towards top.
NOTE:
2 springs are loosely connected to guide for drip molding.
Installation:
Make sure springs are reinstalled on drip molding carriers.

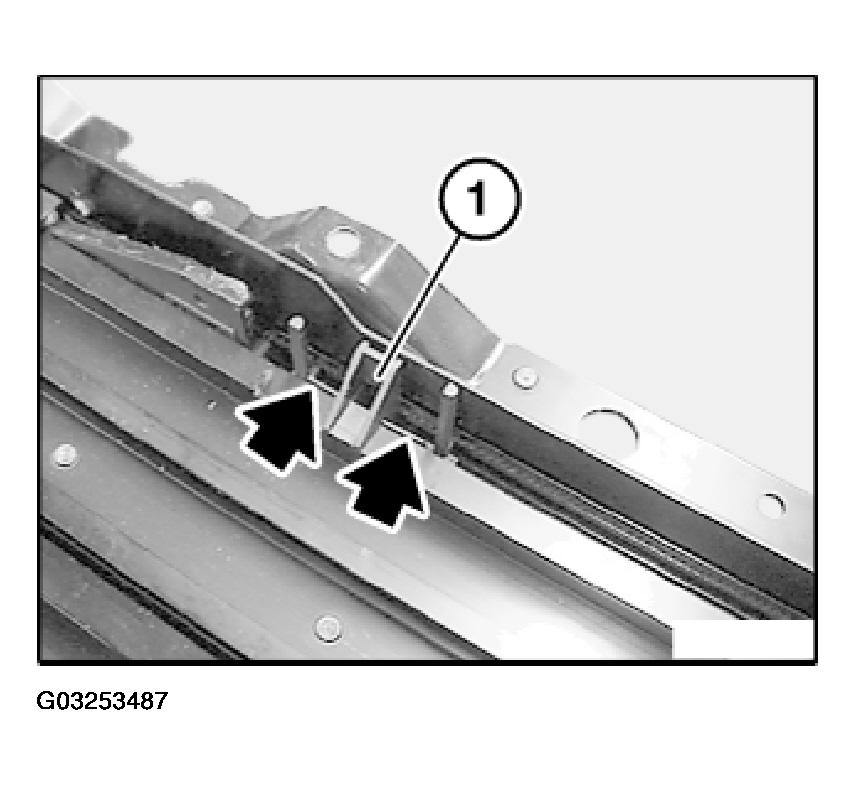

Removing drip molding carrier:
NOTE:
Drip molding carrier cannot be removed without incurring damage.
Break out tabs with a screwdriver and lever out carrier.
Installation:
Replace drip molding carrier and hook into place.
