54 13 090 Removing and installing/replacing wind deflector

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Shown removed here for purposes of clarity.

Pull plastic strip (1) on net of wind deflector out of retainers (2).

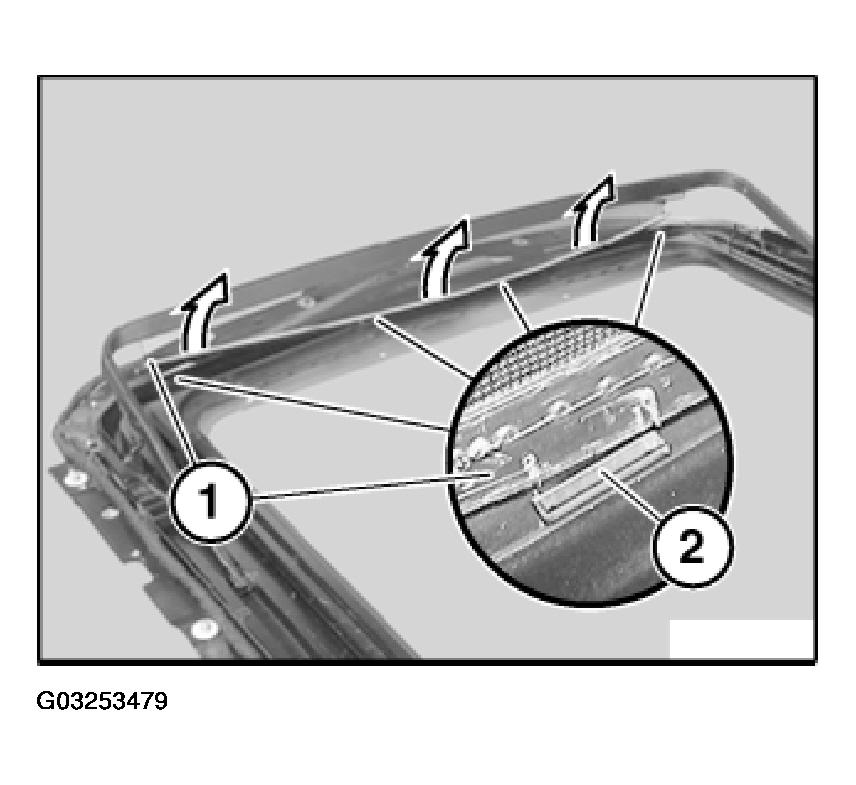

Fig 1: Pulling Plastic Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull on the net so as to avoid tearing the net.

Installation:

If necessary, reinstall retainers in frame.

IMPORTANT: Tape off paintwork in working area.

Avoid bending wind deflector (1).

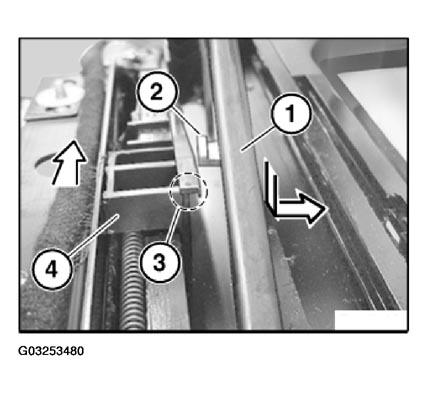

Fig 2: Removing Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pictures show removal on the left side, proceed in the same way for the right side.

Slide control carriage (4) for wind deflector with plastic wedge towards front.

Carefully lift wind deflector (1) in direction of arrow with guide (2) out of rail (3).

Installation:

Make sure clamping elements are correctly seated.

Tilt wind deflector (1) into vertical position and remove.

Installation:

Make sure wind deflector (1) is correctly seated in pivot point (2).

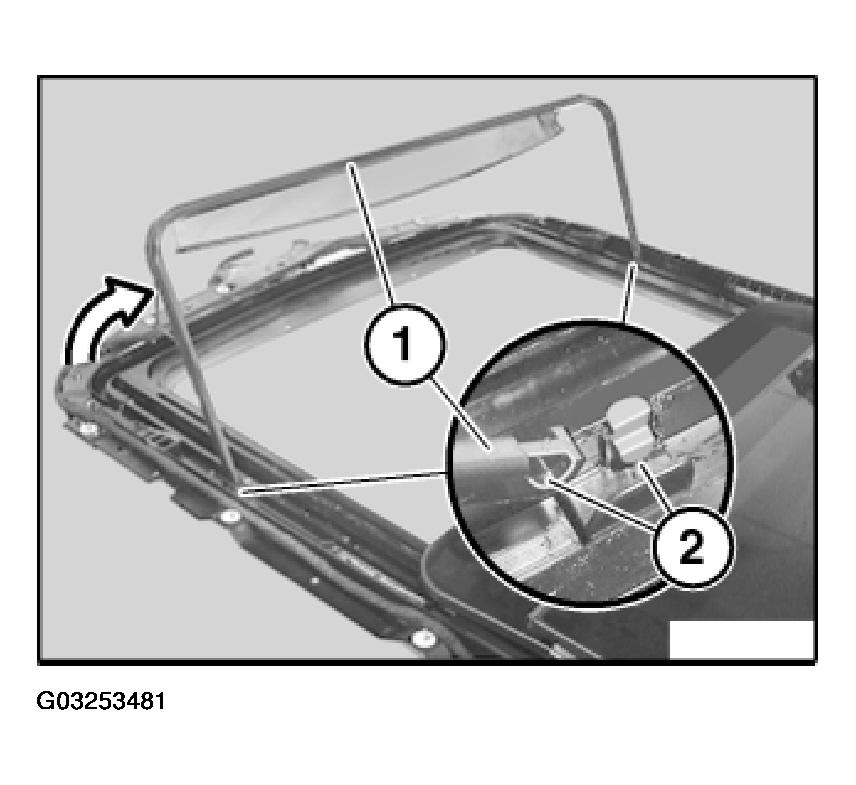

Fig 3: Identifying Wind Deflector
