54 13 050 Replacing Seal For Slide/Tilt Sunroof Lid At Rear

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Open glass slide/tilt sunroof
NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .

Detach seal (1) from slide/tilt sunroof lid.

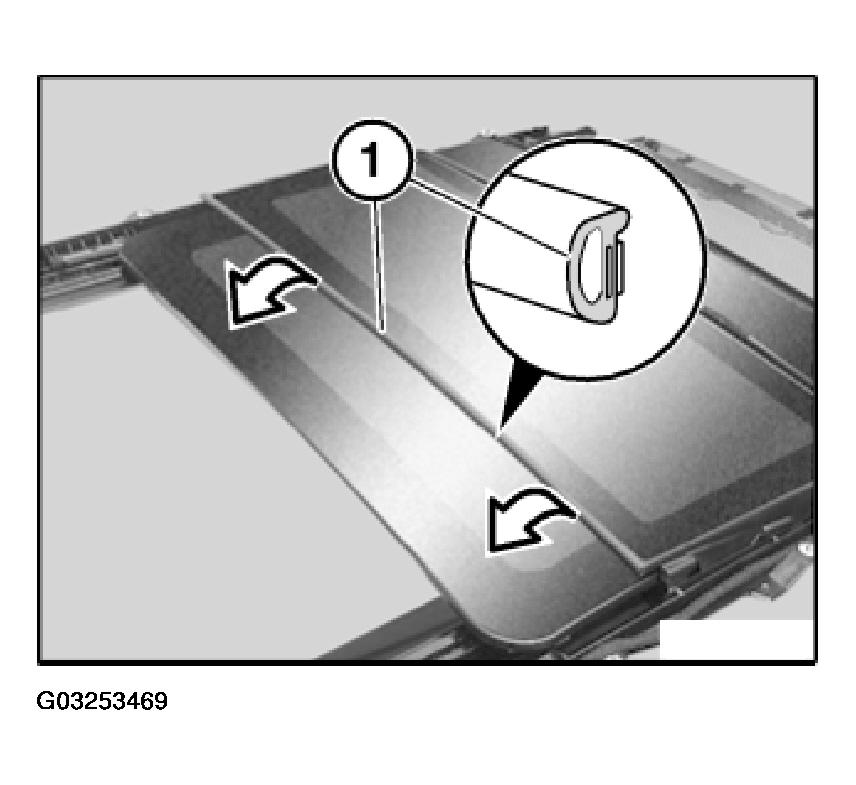

Fig 1: Detaching Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).

Press seal without stretching (squashing).

IMPORTANT: Do not touch bonding surface.

Surface temperature "GREATER THAN EQUAL TO 20 °C

Incorrect bonding of the seal will result in leakage.
