13 63 590 Replacing fuel pump relay

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE .

Release screws (1).

Remove fuse box (2) towards bottom (do not disconnect electrical connections).

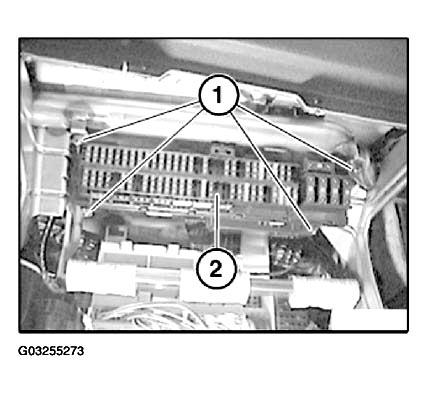

Fig 1: Removing Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel pump relay (1).

After removal of fuel pump relay and during engine starting sequence:

• the fuel pump no longer starts up,
• the engine does not start.

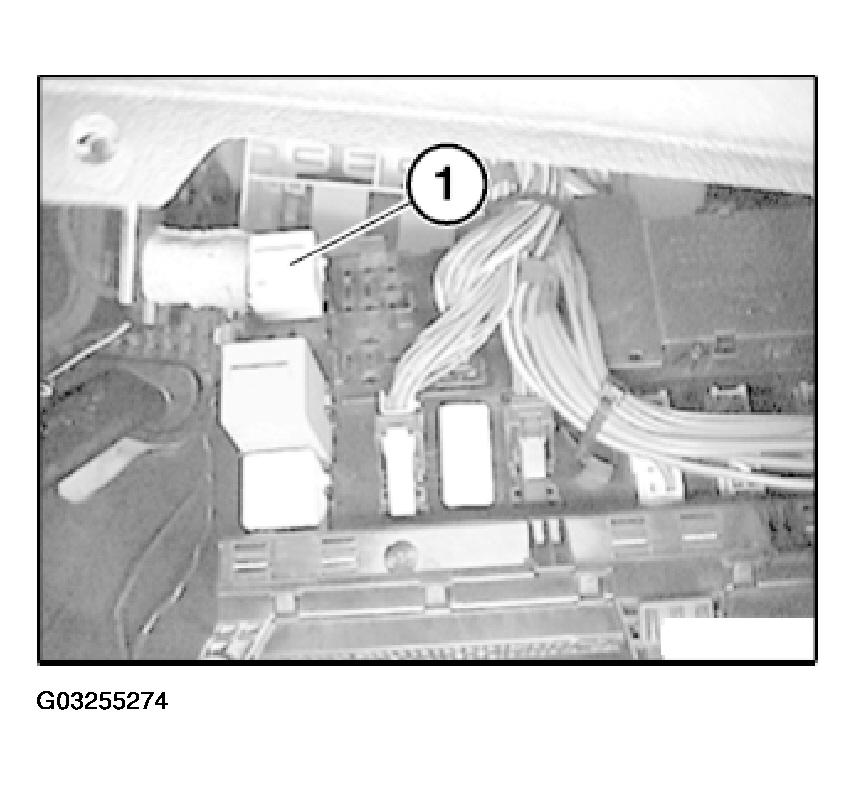

Fig 2: Detaching Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.
