13 00 002 Checking function of Digital Engine Electronics (DME)

WARNING: This page is about a different variant/trim than selected.

Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

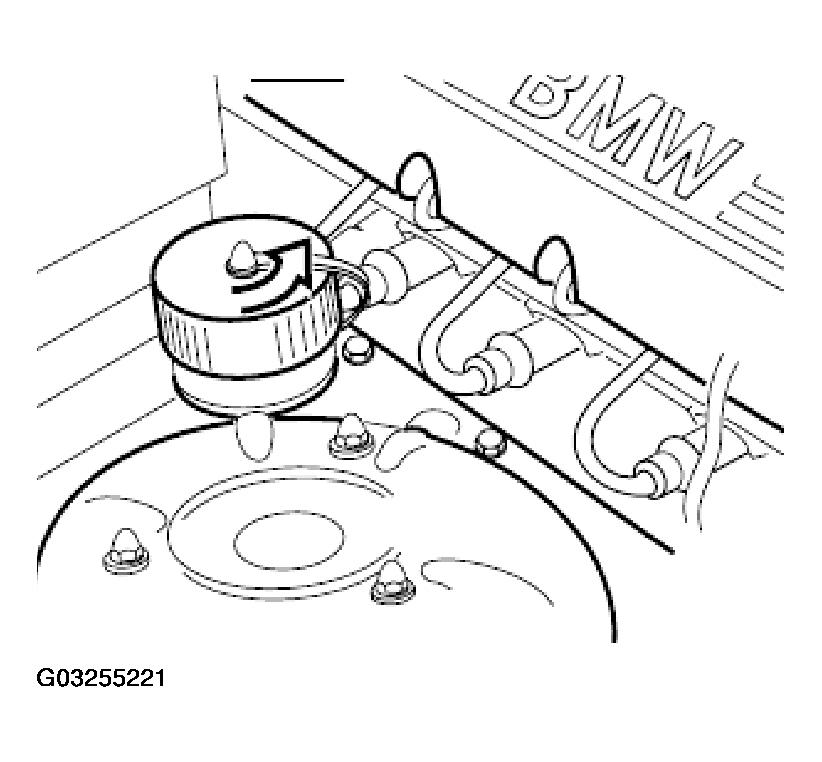

Fig 1: Identifying Engine Compartment Diagnostic Connector

Courtesy of BMW OF NORTH AMERICA, INC.

OBD socket (1) in driver's footwell:

Same procedure as above.

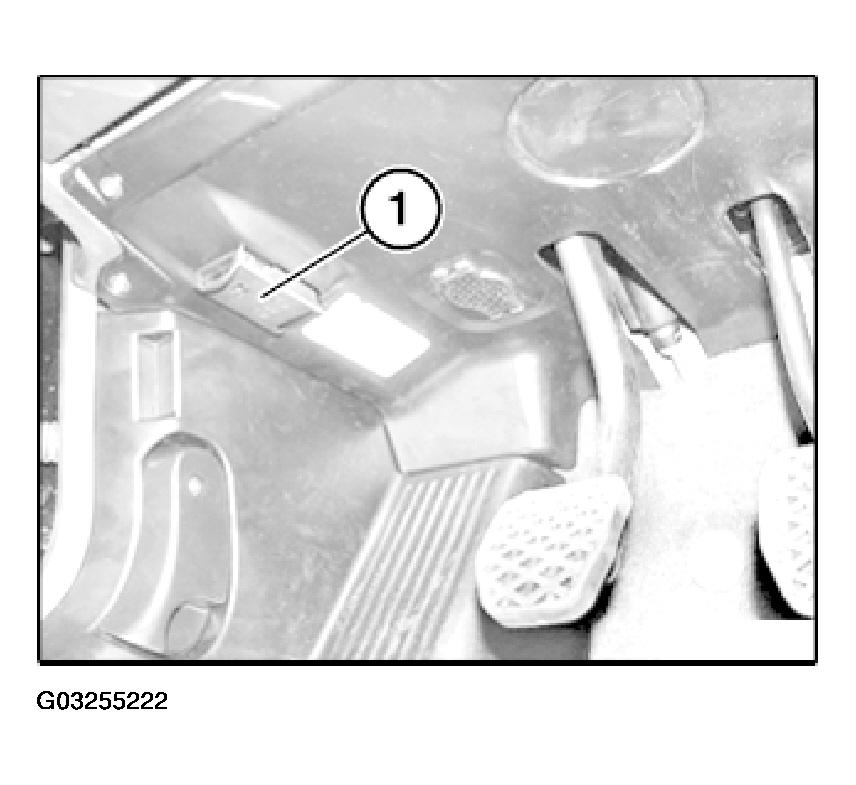

Fig 2: Identifying OBD Socket In Driver's Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
