12 41 020 Removing and installing/replacing starter motor (M62)

WARNING: This page is about a different variant/trim than selected.

Switch off ignition.

Disconnect battery negative lead from battery.

Follow instructions for disconnecting and connecting battery, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove reinforcement plate.

CAUTION: The work step "Removing and installing reinforcement plate" contains important installation instructions,
refer to 31 10 010 FRONT AXLE .

Remove protective cap (1) of battery positive lead from starter motor.

Release nut (2).

Disconnect battery positive lead (3) from starter motor.

Unclip battery positive lead from holders.

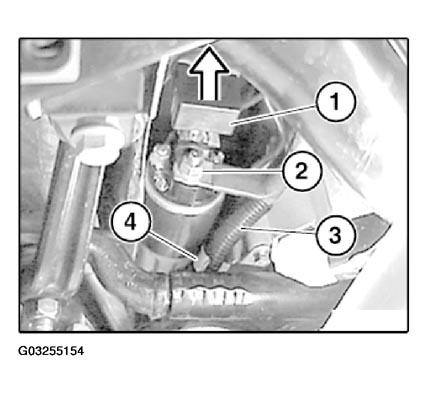

Fig 1: Removing Protective Cap From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1).

Detach leads (2) from starter motor.

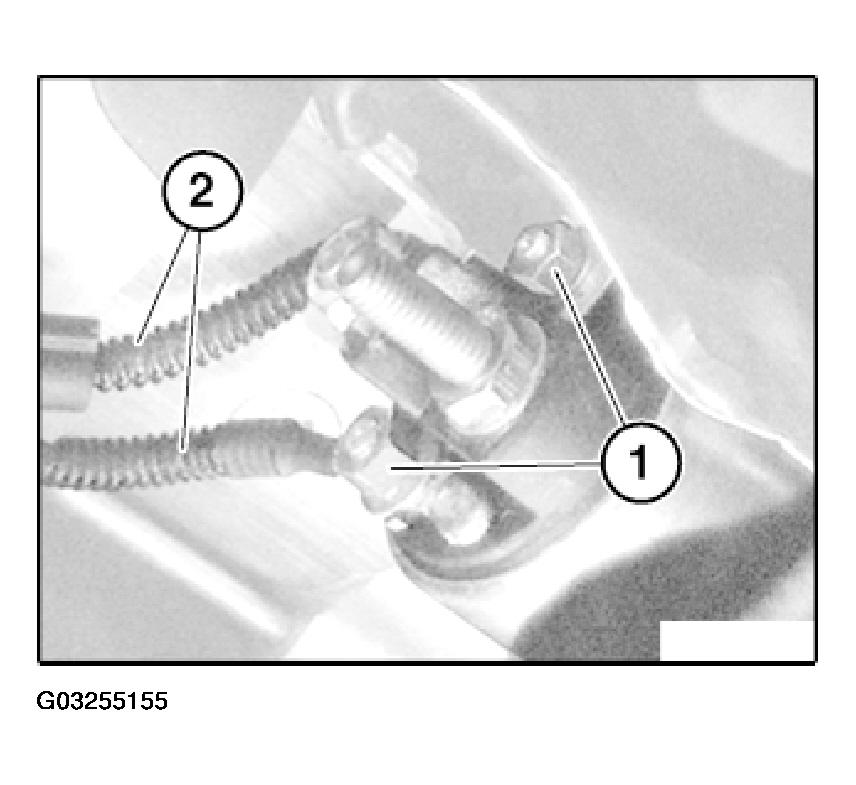

Fig 2: Removing Starter Motor Leads

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

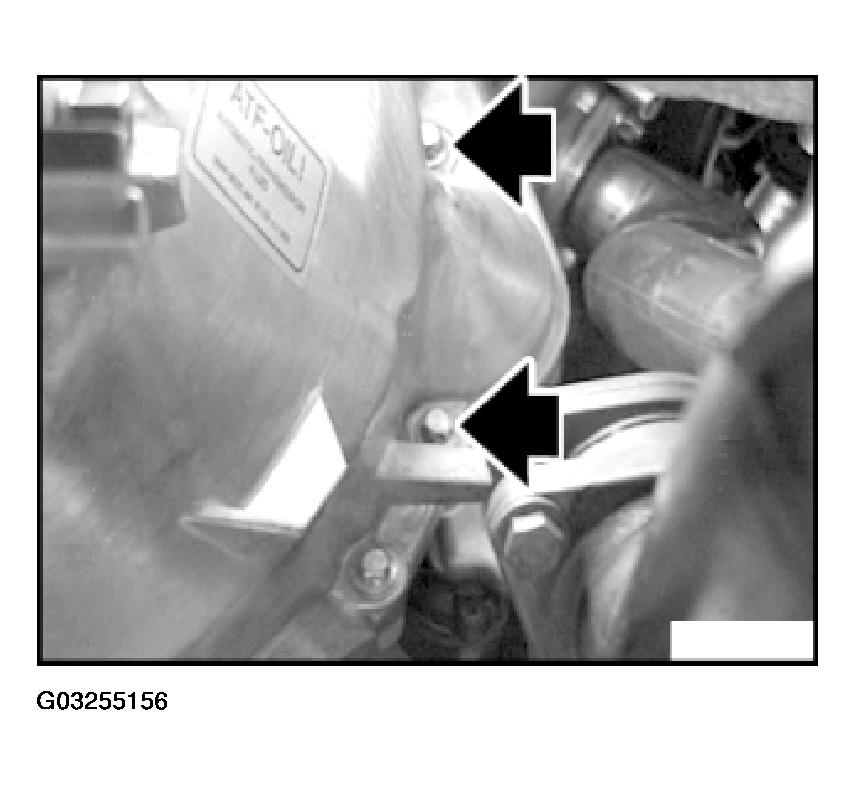

Fig 3: Removing Starter Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull starter motor out of transmission mount and remove.

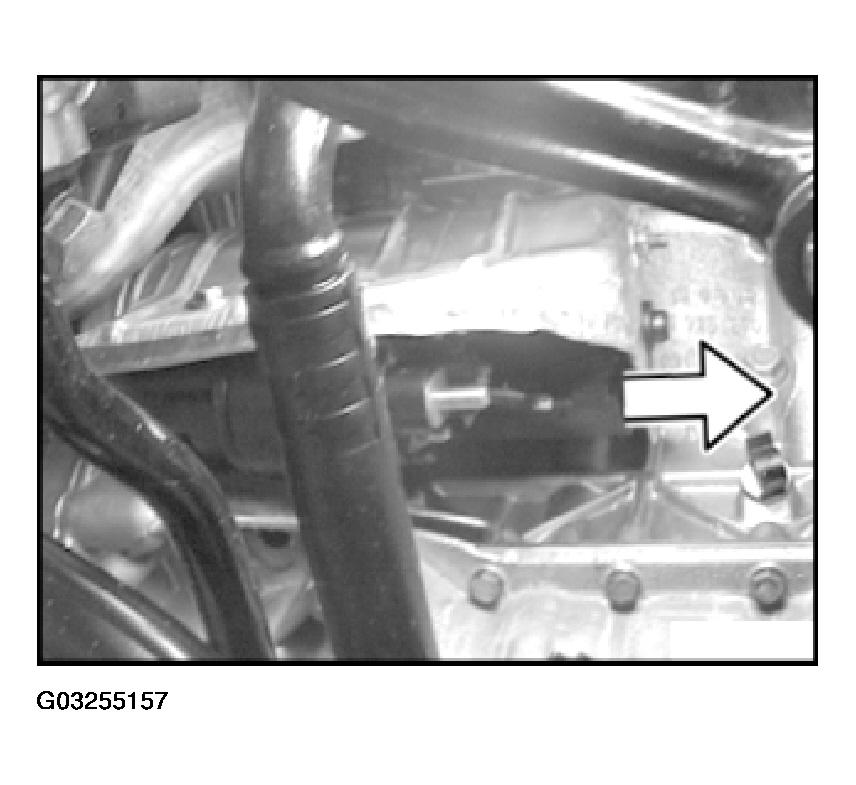

Fig 4: Removing Starter Motor (M62)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check starter pinion and ring gear for damage, replace starter motor if necessary.
