12 61 280 Removing and installing/replacing oil pressure switch (M62)

WARNING: This page is about a different variant/trim than selected.

Switch off ignition.

NOTE: Drain the main flow oil filter in order to avoid an excessive discharge of oil when the oil pressure switch is removed.
This work is described in the work step "BMW engine oil service", refer to CHANGING ENGINE OIL AND OIL FILTER .

Detach plug (1) from oil pressure switch.

Fig 1: Removing Oil Pressure Switch Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Pull expansion tank (1) upwards and lay to one side.

NOTE: Lines on expansion tank remain connected.

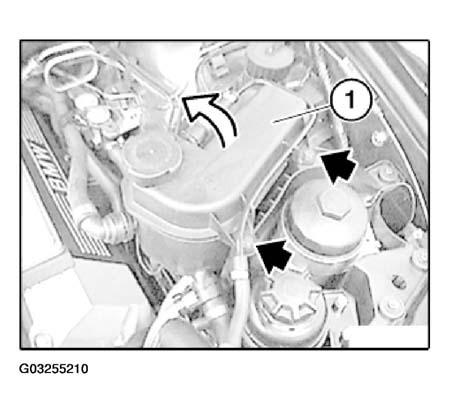

Fig 2: Removing Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A small amount of engine oil emerges when the oil pressure switch is removed. Have a cleaning cloth ready.

Unscrew oil pressure switch.

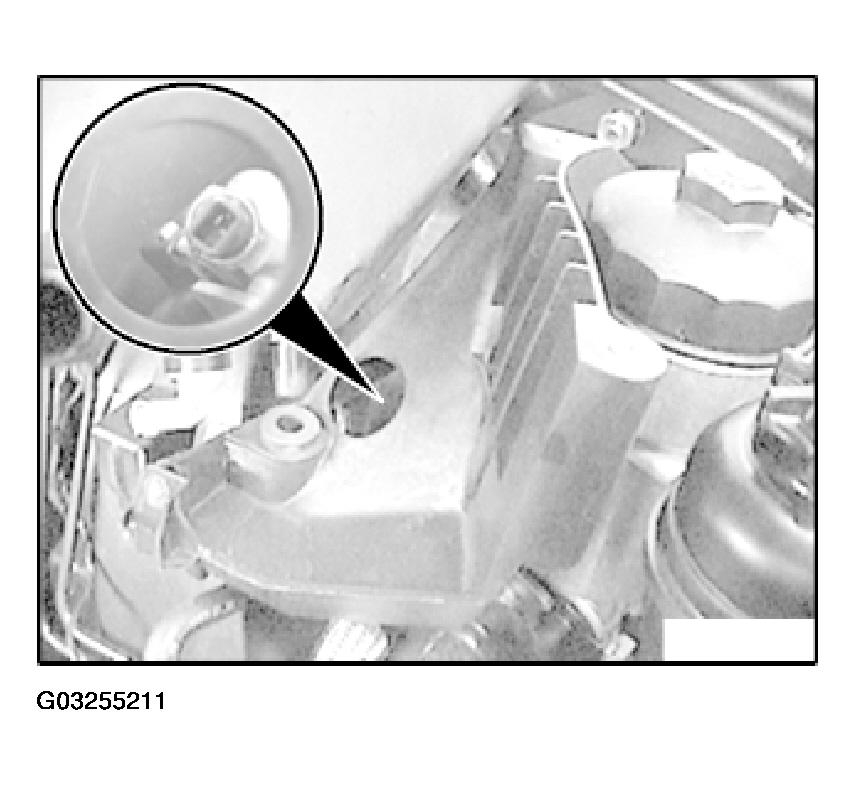

Fig 3: Removing Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 4.6L .

Installation:

Screw on oil-filter cover tightly.

NOTE: Assemble car and set in horizontal position.
Start engine and run at idle until oil indicator lamp goes out.
Switch off engine and wait approx. 5 minutes.
Then check engine oil level.
If necessary, top up engine oil.
