12 13 520 Replacing a spark plug connector (M60, M62, M54)

WARNING: This page is about a different variant/trim than selected.

Switch off ignition.

Remove ignition coils.

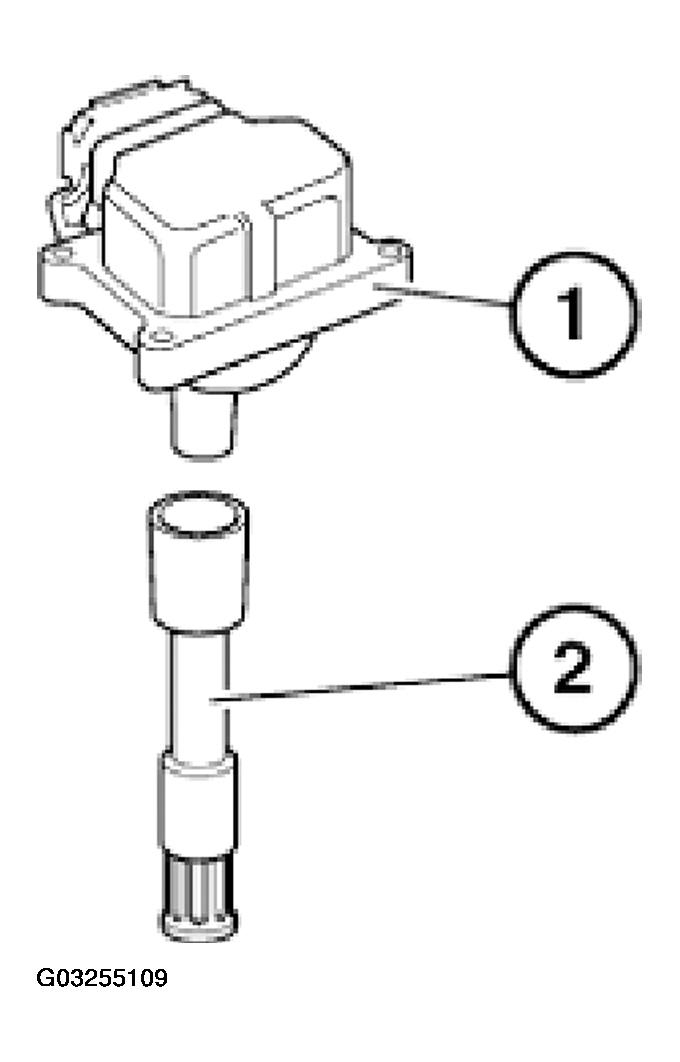

Detach ignition coil (1) from spark plug connector (2).

Fig 1: Detaching Ignition Coil From Spark Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.
