12 51 001 Replacing wiring harness section for engine (M62)

WARNING: This page is about a different variant/trim than selected.

Interrogate fault memory of DME control unit.

Switch off ignition.

NOTE: Follow instructions for disconnecting and connecting battery, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery negative lead from battery.

WARNING: Scalding hazard!
Only perform these tasks on an engine that has cooled down.

Remove reinforcement plate.

CAUTION: The work step "Removing and installing reinforcement plate" contains important installation instructions, refer to 31 10 010 FRONT AXLE .

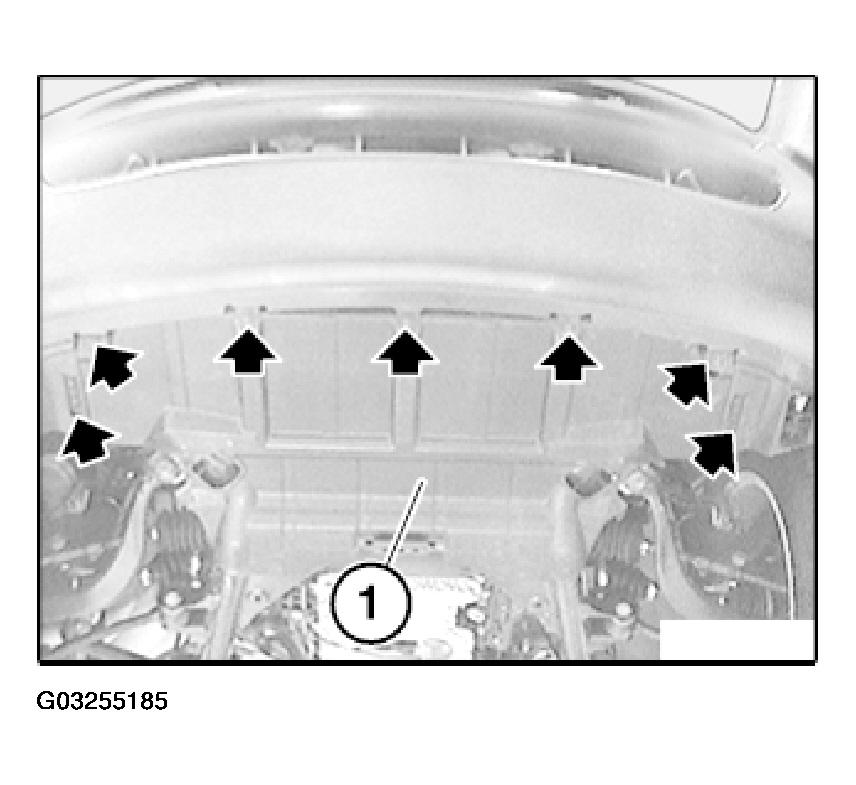

Release screws and remove underbody panelling (1).

Fig 1: Removing Underbody Panelling

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on starter motor.

NOTE: The plug connection is located above the front axle on the right. For purposes of clarity, the right front wheel is shown removed.

Fig 2: Disconnecting Plug Connection On Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

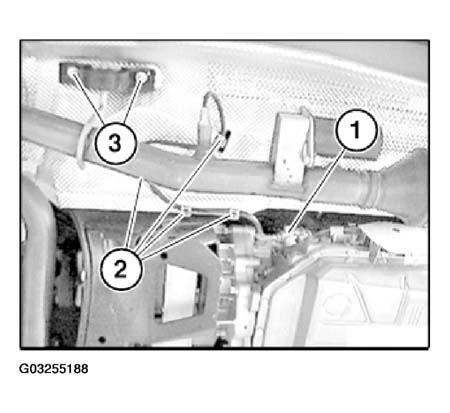

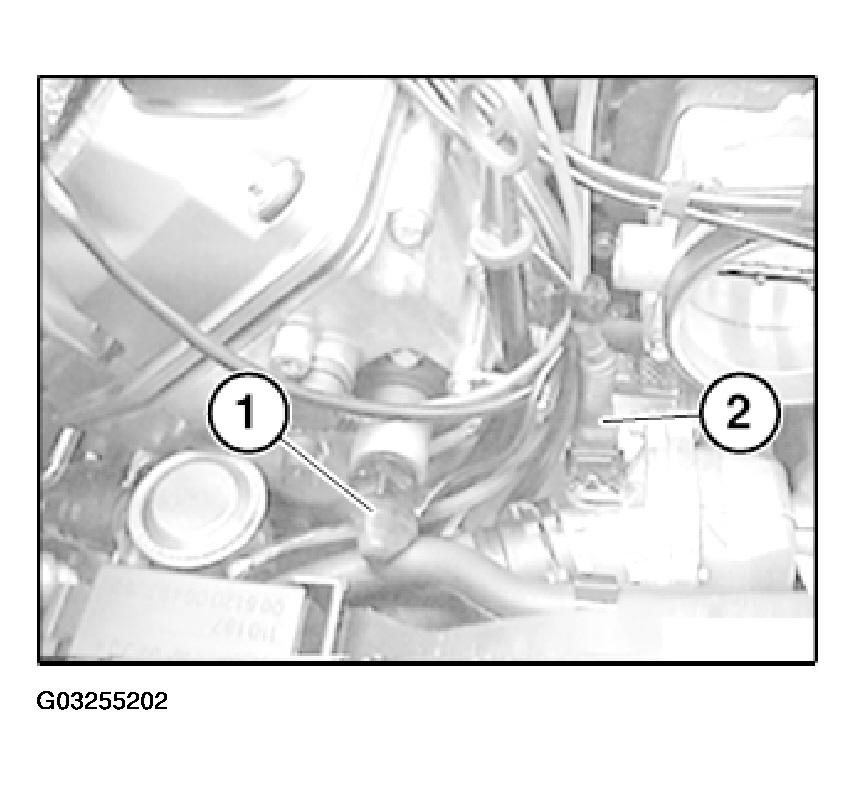

Detach plug (1) from oil level sensor.

Unclip cable from cable holder (2) and lay upwards.

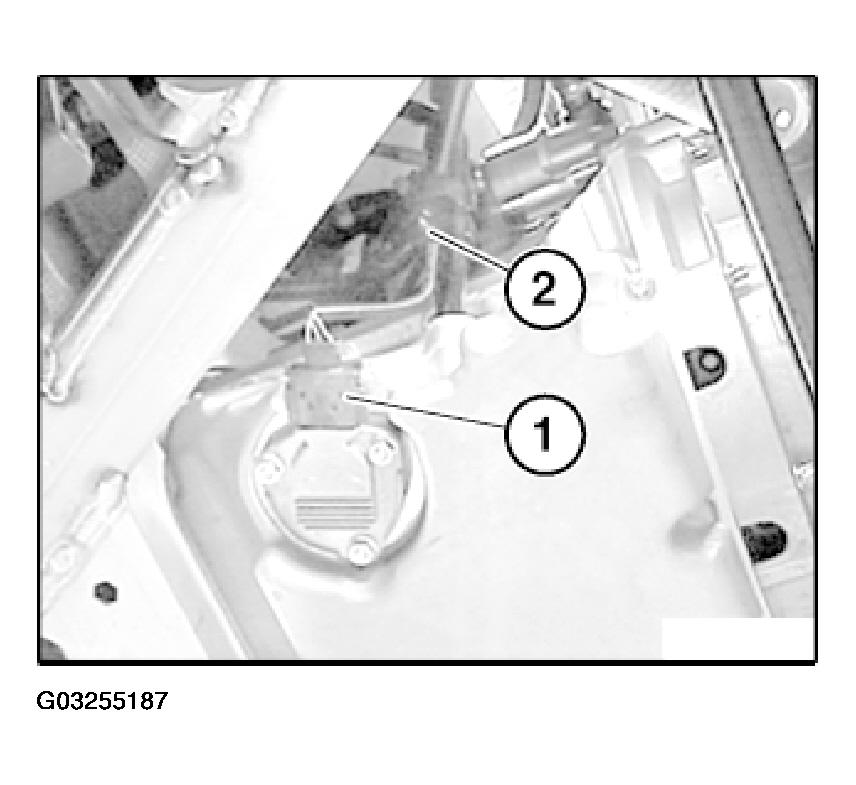

Fig 3: Removing Plug From Oil Level Sensor And Cable From Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on left and right monitor sensors.

Unclip cables from holders on transmission housing.

Fig 4: Removing Cables From Holders On Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on left and right oxygen sensors.

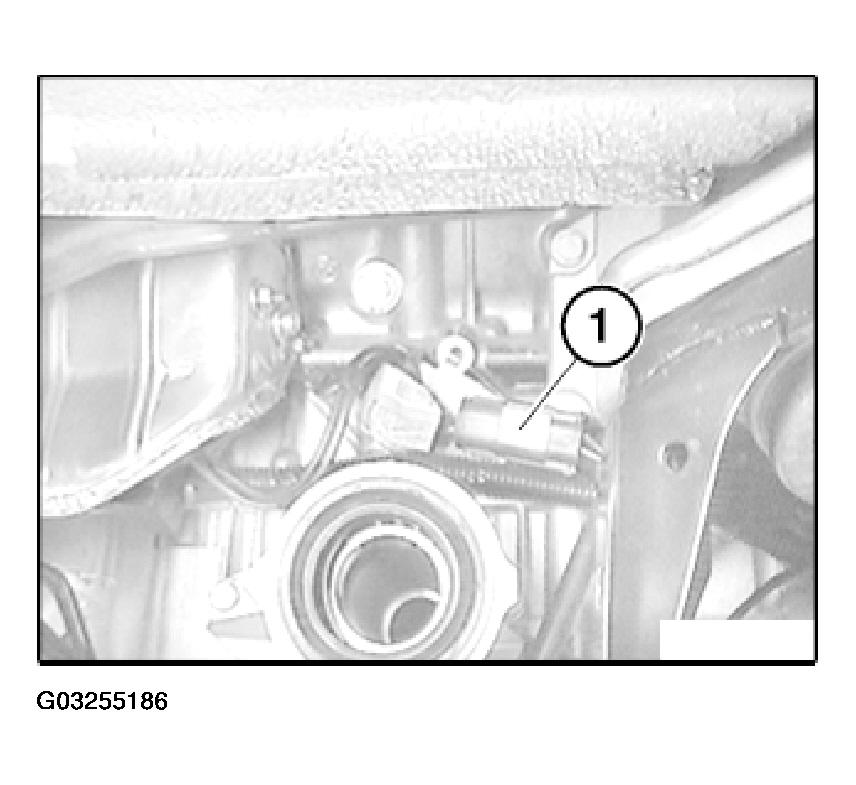

Fig 5: Disconnecting Plug Connections On Left And Right Oxygen Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove cable connector (1).

Detach plug (2) from pulse generator for crankshaft.

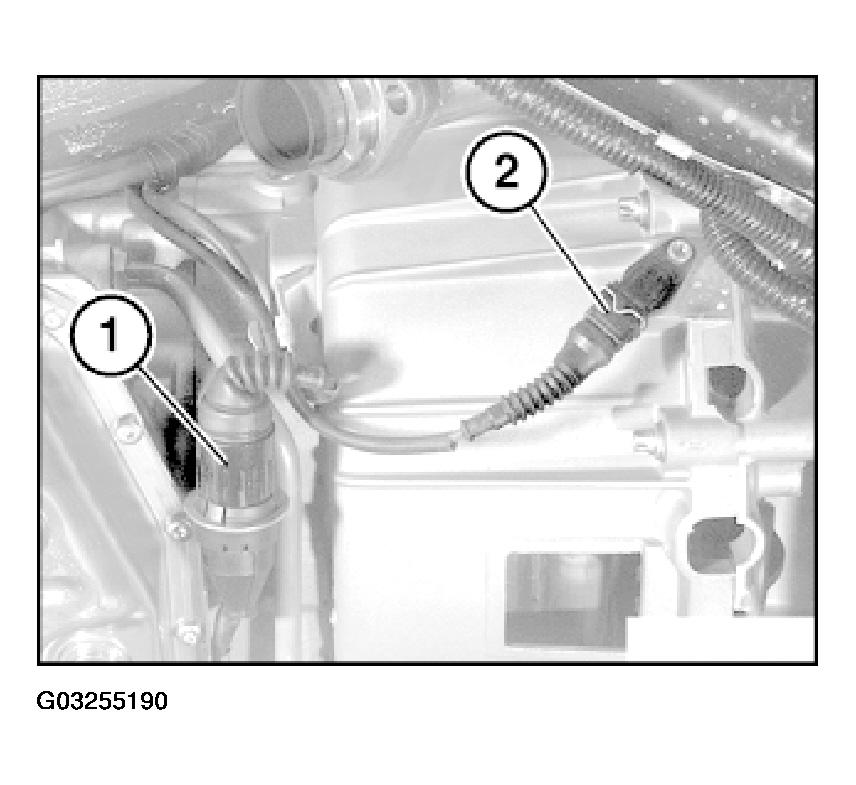

Fig 6: Removing Cable Connector And Plug From Pulse Generator For Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove cable connector (1).

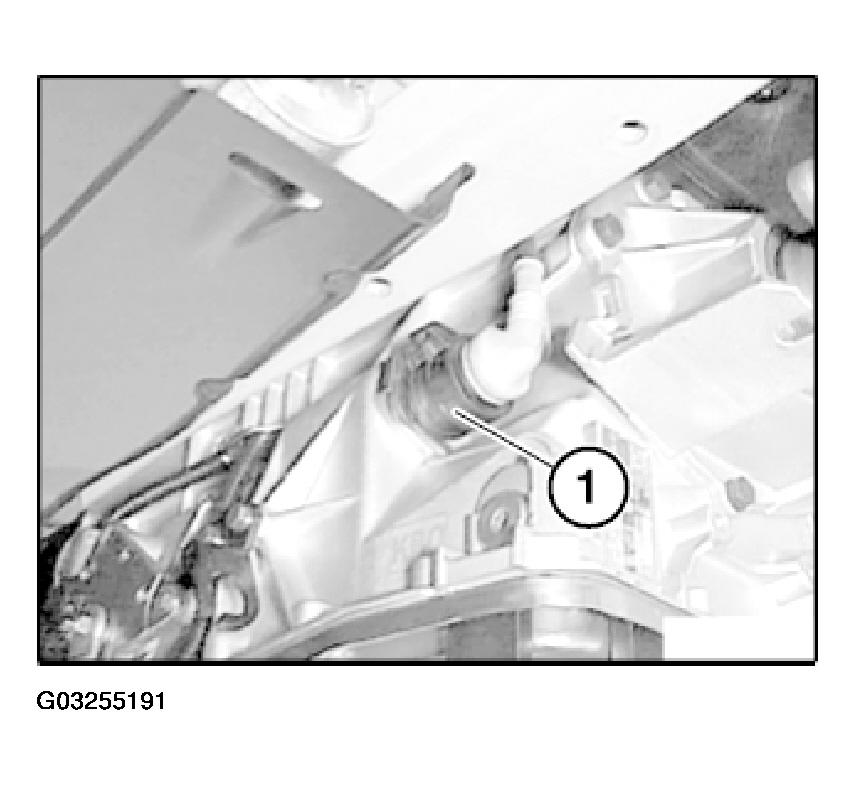

Fig 7: Removing Transmission Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable from cable holders (1) on transmission housing.

Fig 8: Removing Cable From Cable Holders On Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heater bulkhead,

refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Unlock cable holders (2).

Remove cables (1) from cable holders (2).

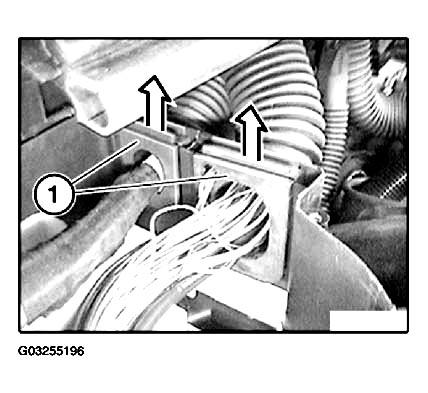

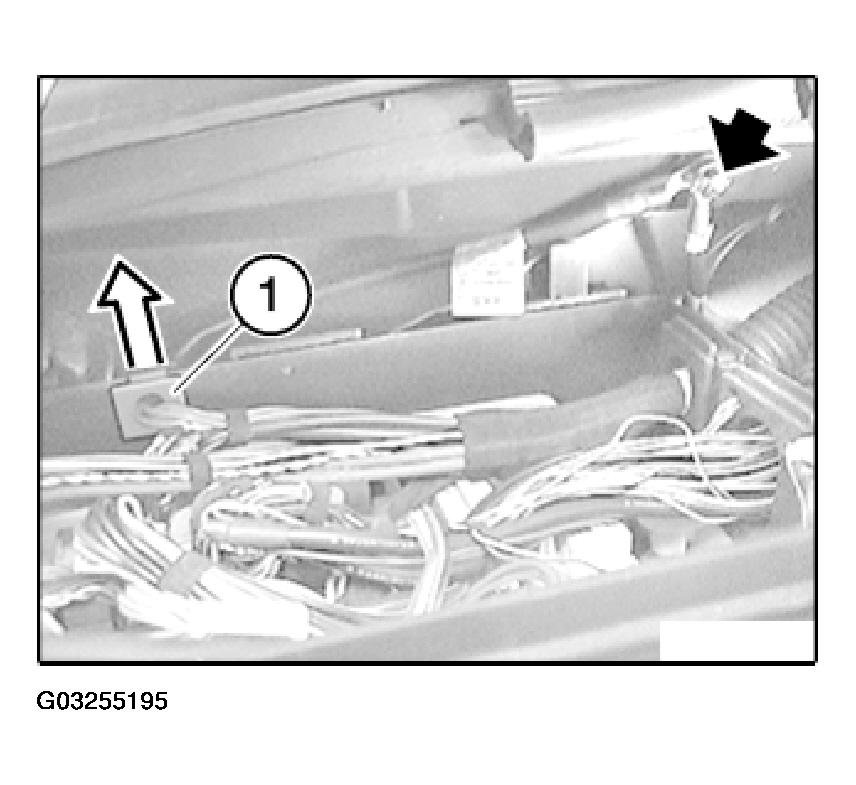

Fig 9: Removing Cables From Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3).

Remove holder (4).

Release cable tie (1).

Fig 10: Removing Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all plugs in control unit box.

Part of this work is described in the work step "Replacing control unit", refer to 12 14 550 REPLACING CONTROL UNIT (DIGITAL MOTOR ELECTRONICS) (M62, M54) .

Release nut.

Remove grounding cables from ground support point.

Detach profile seal (1) towards top.

Fig 11: Removing Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent leaks, you must install profile seals correctly.

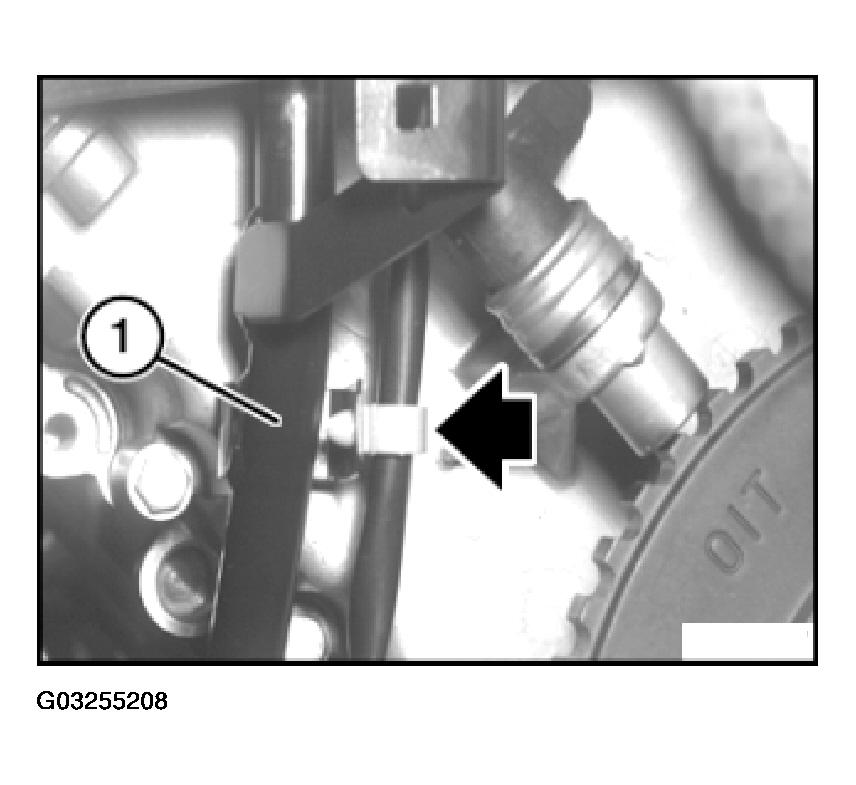

Detach profile seals (1) towards top.

Installation:

To prevent leaks, you must install profile seals correctly.

Fig 12: Removing Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

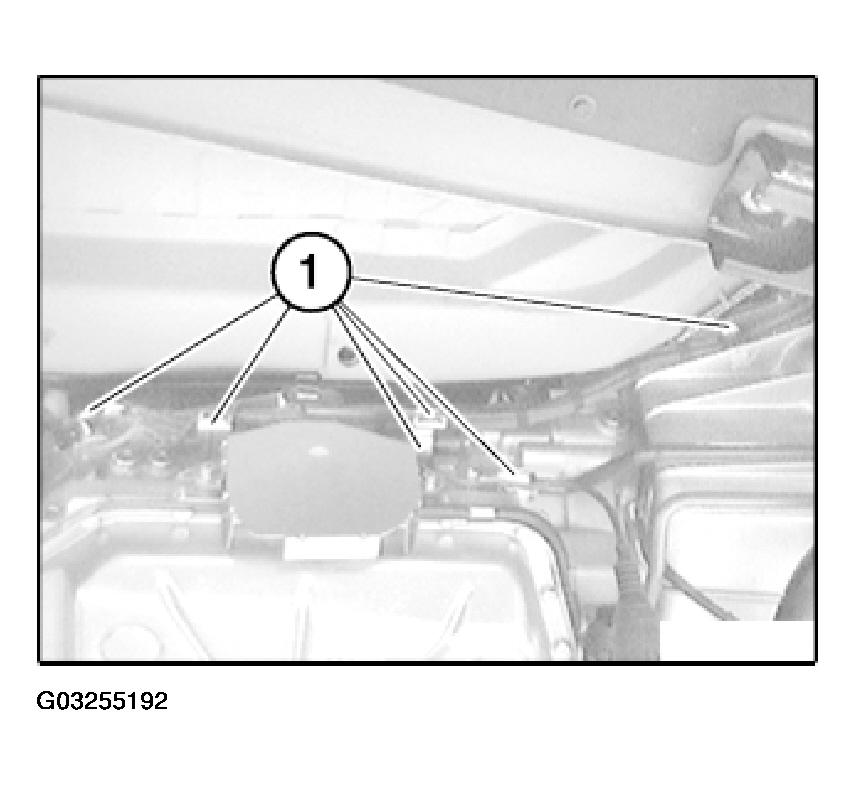

Detach plug (2) from temperature sensor.

Fig 13: Detaching Plug From Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from tank venting valve (2).

Fig 14: Detaching Plug From Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake hose, refer to 13 54 250 REPLACING INLET HOSE (BETWEEN MASS AIR FLOW SENSOR & INTAKE MANIFOLD M62) .

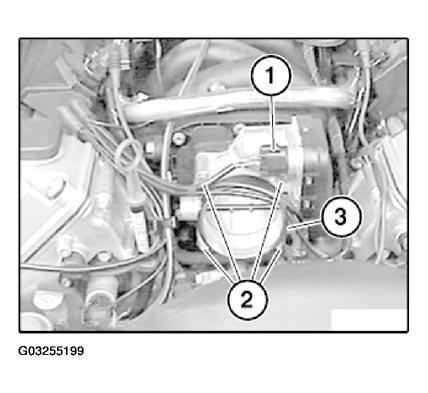

Detach plug (1) from throttle assembly.

Fig 15: Detaching Plug From Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

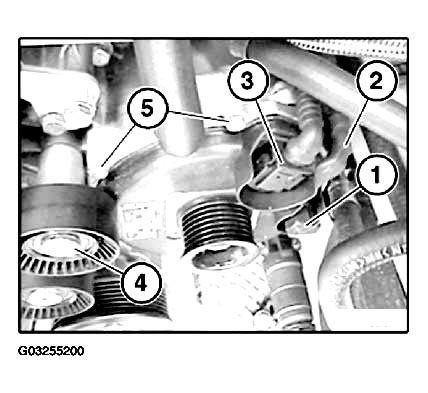

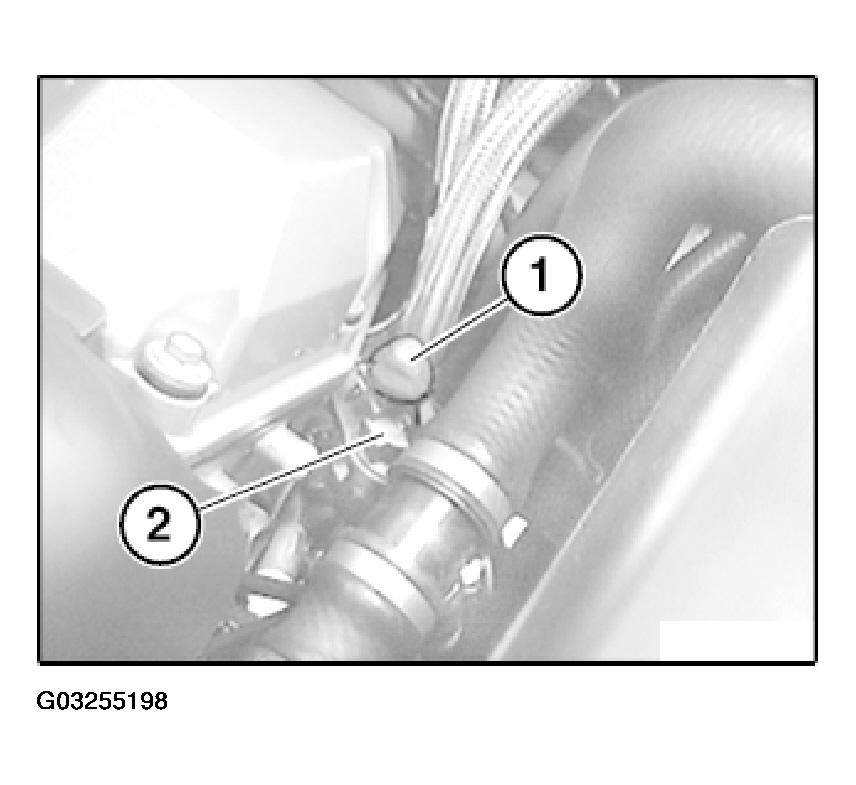

Detach plug (3) from alternator.

Fig 16: Detaching Plug From Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

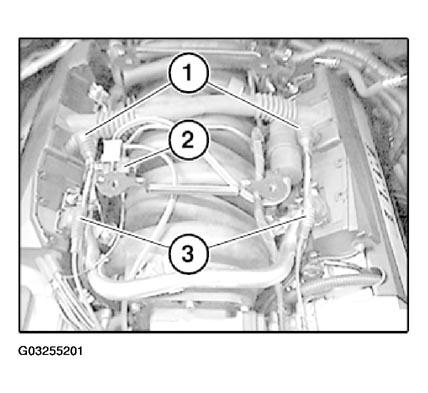

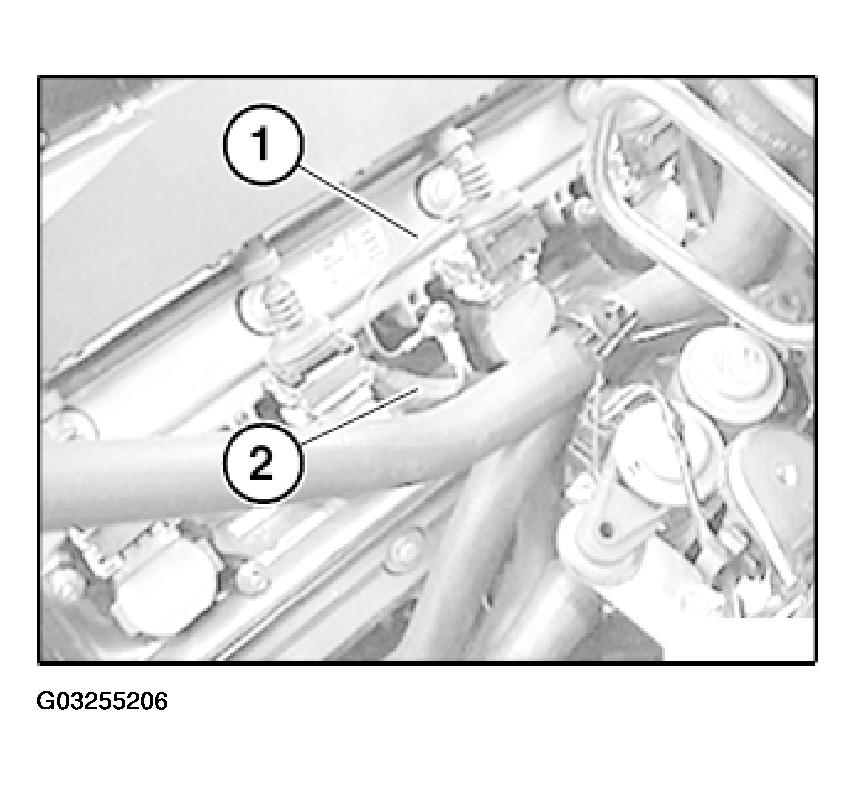

Detach plug connections (1) of knock sensors from cable strips.

Fig 17: Detaching Plug Connections Of Knock Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

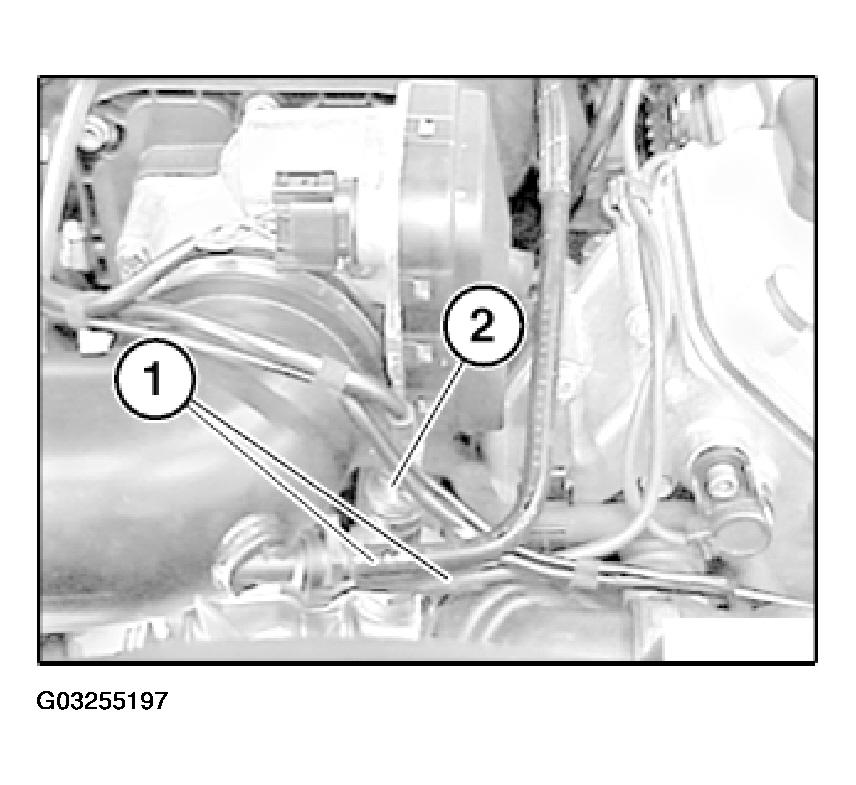

Detach plug (2) from electric changeover valve.

Detach plugs (3) of camshaft sensors from cable strips.

Detach plug (1) from solenoid valve of camshaft adjustment unit on left and right.

Detach plug (2) from switch for program map control.

Fig 18: Detaching Plug From Camshaft Solenoid Valve And Program Map Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing caps on covers of ignition coils.

Release nuts.

Remove covers on ignition coils.

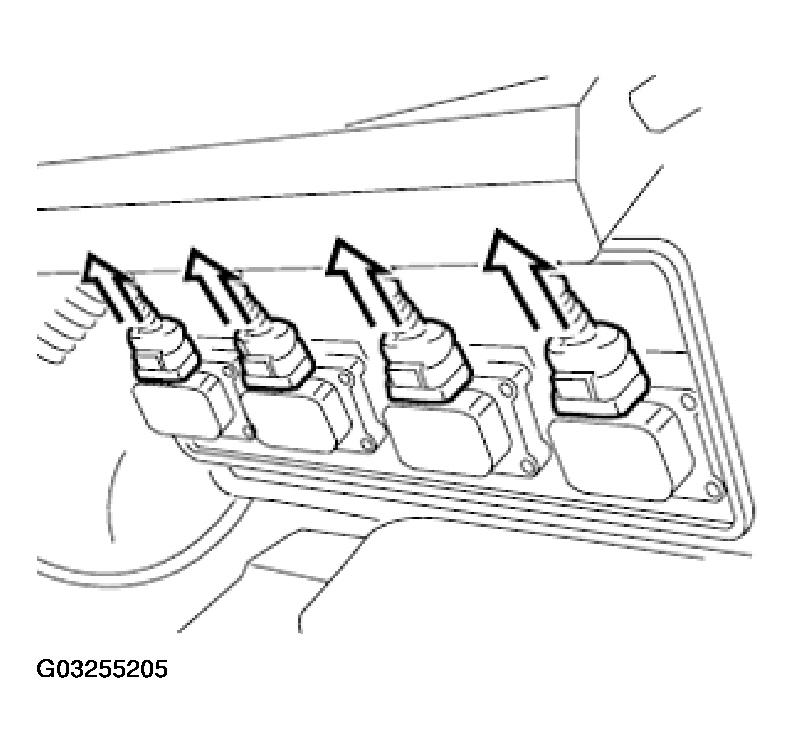

Fig 19: Removing Ignition Coils Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

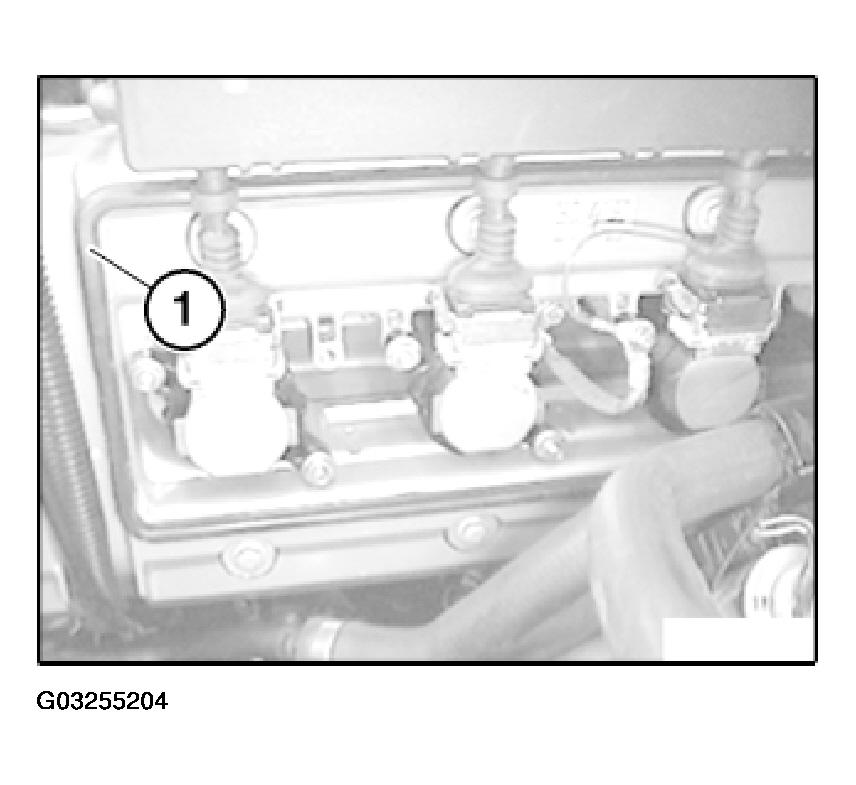

Check profile seals (1) on left and right for damage and correct seating, replace if necessary.

Fig 20: Identifying Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left and right connections on ignition coils.

Disconnect thin grounding cables.

Fig 21: Removing Ignition Coil Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw thin grounding cable to ignition coils of cylinders 2 and 7.

Fig 22: Connecting Grounding Cable To Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

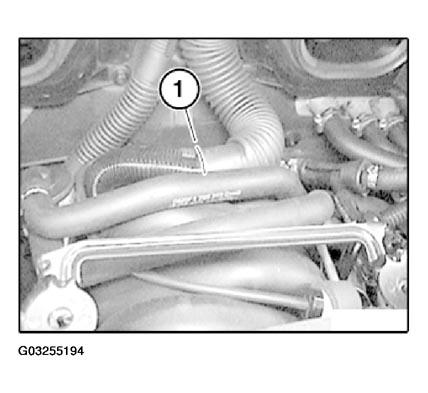

Unclip lines on guide tube (1) for oil dipstick.

Fig 23: Unclipping Lines On Guide Tube For Oil Dipstick

Courtesy of BMW OF NORTH AMERICA, INC.

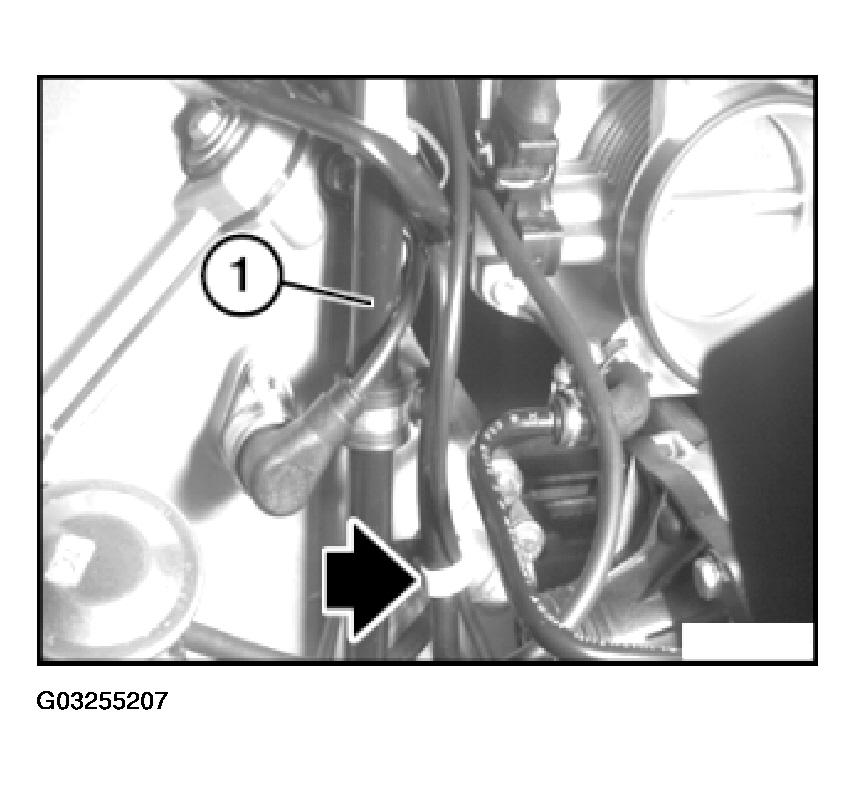

Unclip lines on guide tube (1) for oil dipstick.

Release cable ties on battery positive lead in area of upper oil sump section.

Fig 24: Unclipping Battery Positive Lead Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
