12 14 522 Replacing pulse generator on left inlet camshaft (M62)

WARNING: This page is about a different variant/trim than selected.

Interrogate fault memory of DME control unit.

Switch off ignition.

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

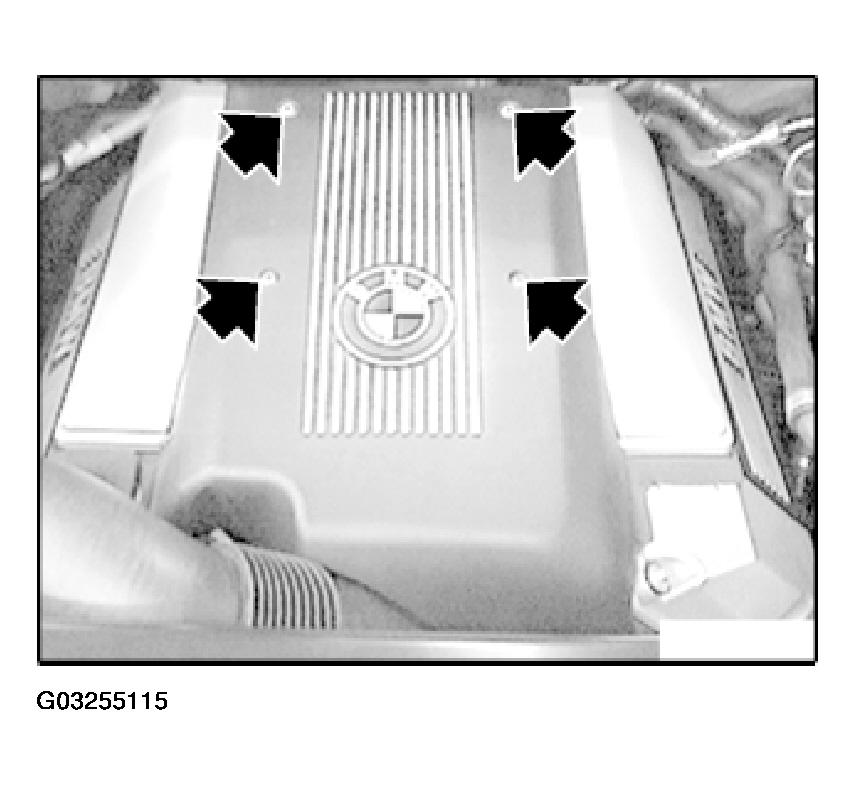

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on left cable strip. Unclip cable from cable holder (2).

Release screw (3).

Remove pulse generator (4).

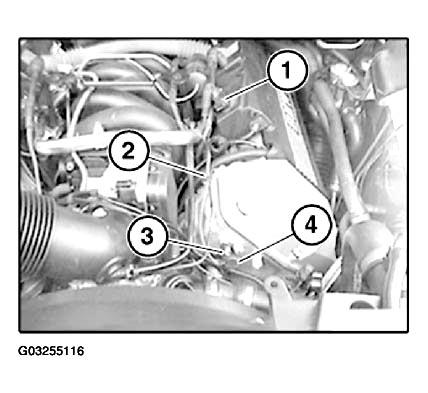

Fig 2: Removing Pulse Generator On Left Inlet Camshaft (M62)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing ring with anti-friction rubber coating (e.g. petroleum jelly).

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
