Removal & Installation
WARNING: This page is about a different variant/trim than selected.
Remove and install alternator drive belt.
Depending on alternator type, grip shaft with:
- Hexagon Socket
- Multi-Tooth Socket
- Torx Socket Wrench

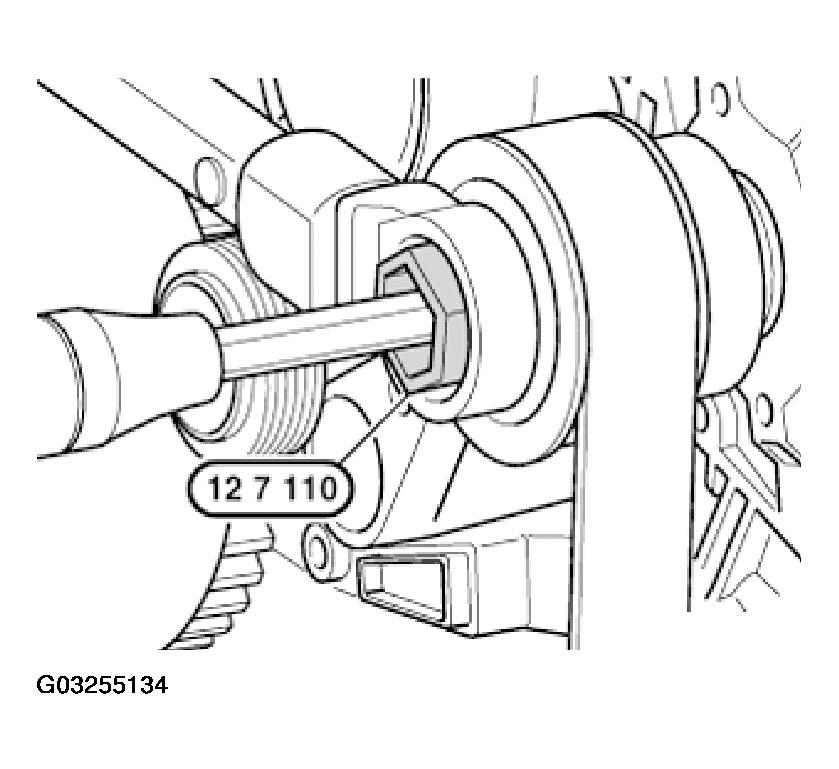

Release nut with special tool 12 7 110.
Installation:
Tightening torque, refer to 12 31 2AZ or 12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - X5 4.6L
