11 23 010 Removing and installing/replacing vibration damper (M62)

Unscrew and remove splash guard.

Remove alternator drive belt,

refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M62)

Remove drive belt for a/c compressor,

refer to 11 28 050 REPLACING DRIVE BELT FOR A/C COMPRESSOR (M60/M62/M73)

Release screws and remove vibration damper.

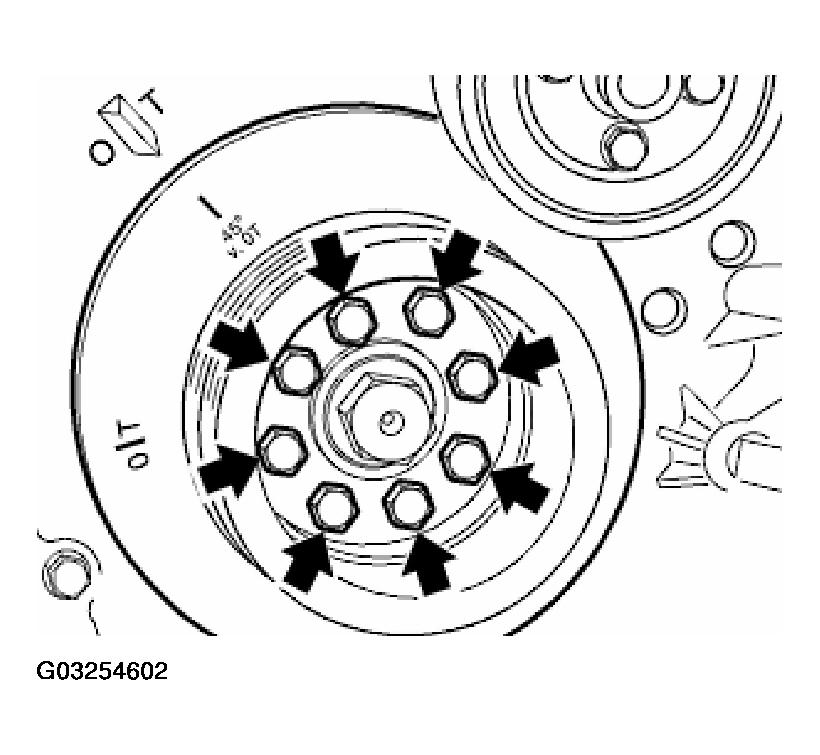

Fig 1: Identifying Vibration Damper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The vibration damper is located with a dowel pin. Replace screws.

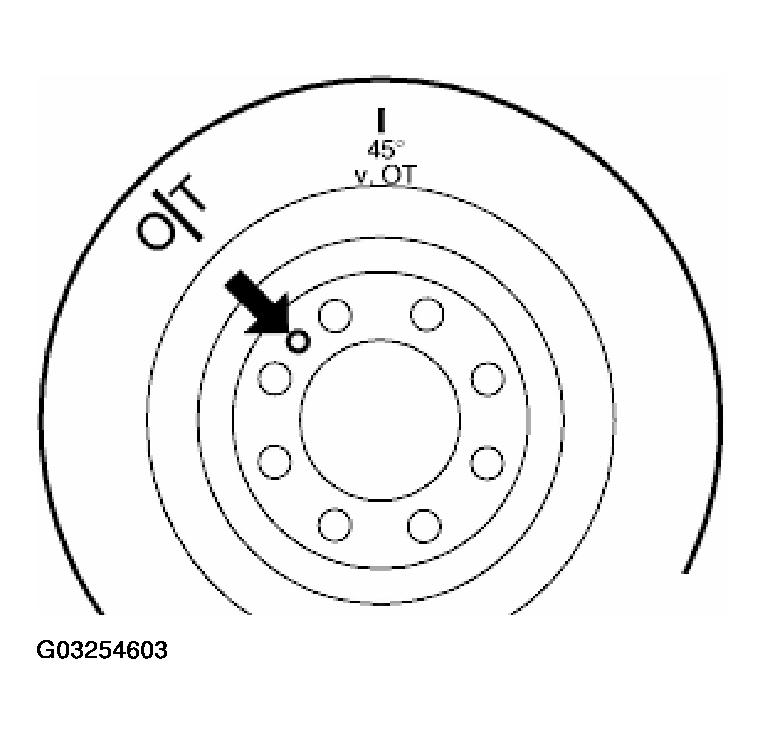

Fig 2: Identifying Vibration Damper Dowel Pin Location

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque,

refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .
