11 36 630 Removing and installing/replacing distributor on left camshaft adjustment unit (M62 VANOS from 9/98): Installation

WARNING: This page is about a different variant/trim than selected.

Installation of the camshaft adjustment unit distributor is described separately from removal.

Check correct installation position of non-return valve (1).

Feed in new gasket so that it is secured in groove on camshaft bearing cover and over non-return valve (1).

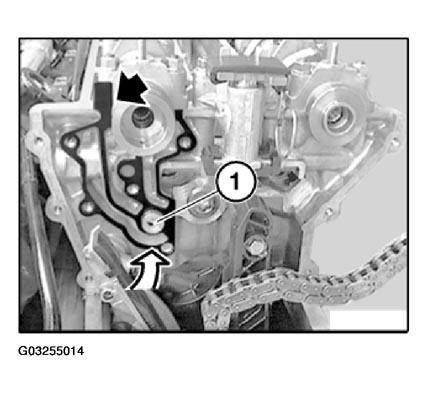

Fig 1: Installing New Camshaft Bearing Cover Gasket (Left Bank)

G03255014

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that contact points on plain compression rings snap into place.

Align contact points of compression rings upwards.

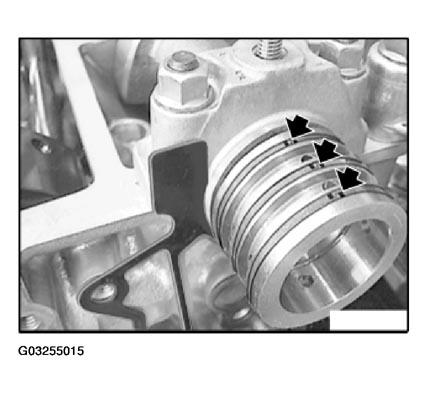

Fig 2: Aligning Contact Points Of Compression Rings (Left Bank)

G03255015

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that gasket is secured in groove on camshaft bearing cover.

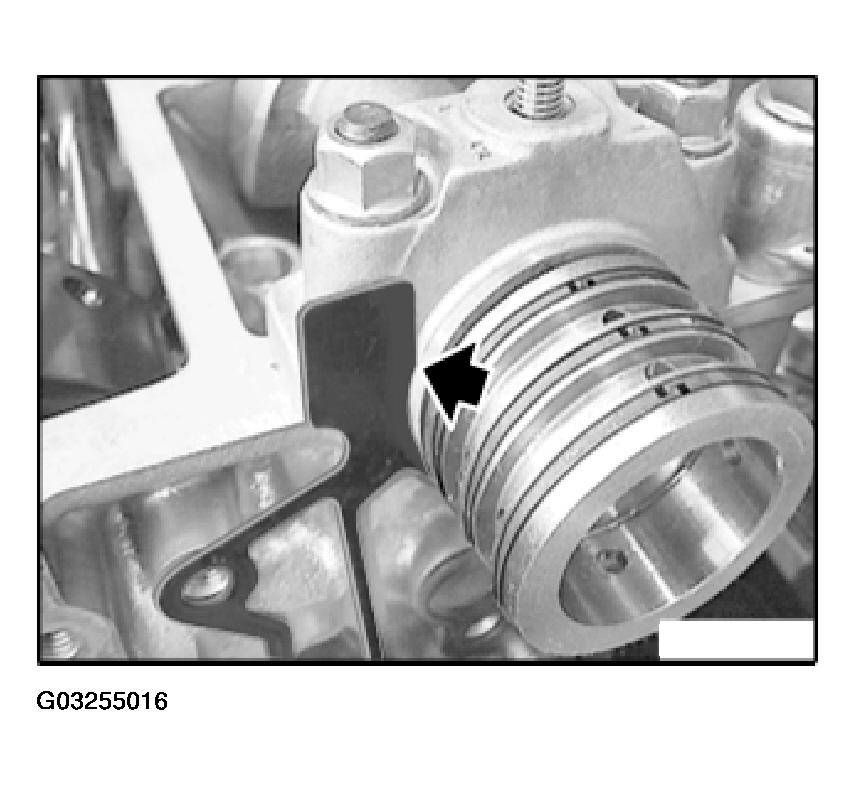

Fig 3: Ensuring Camshaft Bearing Cover Gasket Is Secured In Groove (Left Bank)

G03255016

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a light coat of oil to camshaft adjustment unit distributor and plain compression rings.

Carefully push on camshaft adjustment unit distributor so that it is straight.

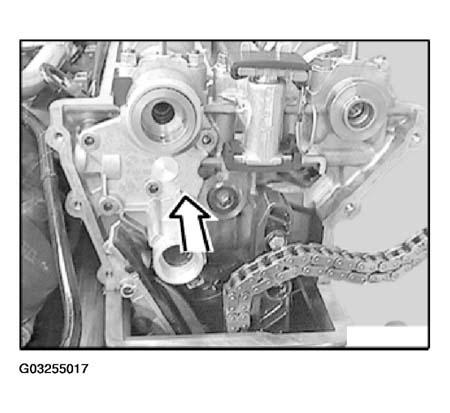

Fig 4: Installing Camshaft Adjustment Unit Distributor (Left Bank)

G03255017

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only screw (1) with sealing ring.

Replace sealing ring on screw (1).

Install and tighten down screws.

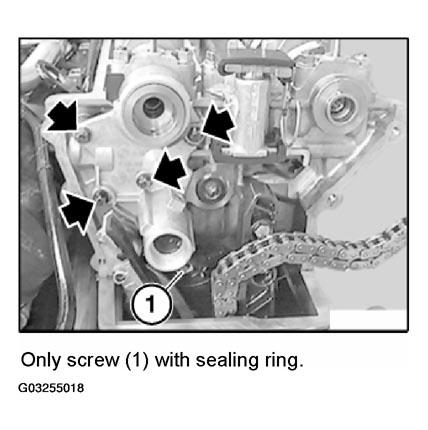

Fig 5: Installing Camshaft Adjustment Unit Distributor (Left Bank)

G03255018

Courtesy of BMW OF NORTH AMERICA, INC.

Feed timing chain (1) onto camshaft adjustment unit distributor.

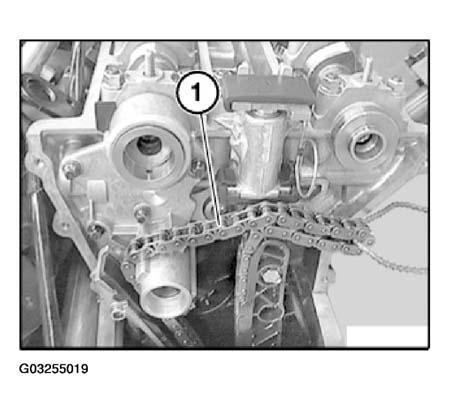

Fig 6: Installing Timing Chain To Camshaft Adjustment Unit Distributor (Left Bank)

G03255019

Courtesy of BMW OF NORTH AMERICA, INC.

Install left camshaft adjustment unit,

refer to 11 36 610 REMOVING AND INSTALLING/REPLACING LEFT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

Assemble engine.
