Checking Engine Oil Pressure: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
For engine oil pressure to be checked, oil pressure switch must be removed and special tools must be installed and connected.
To avoid an excess discharge of oil when removing oil pressure switch:
Unscrew oil filter cap; the engine oil flows out of the oil filter housing into the oil sump.
Installation:
Replace sealing ring.
Tightening torque, see 11 42 2AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .
Remove oil pressure switch.
Installation:
Tightening torque, see 12 61 1AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .

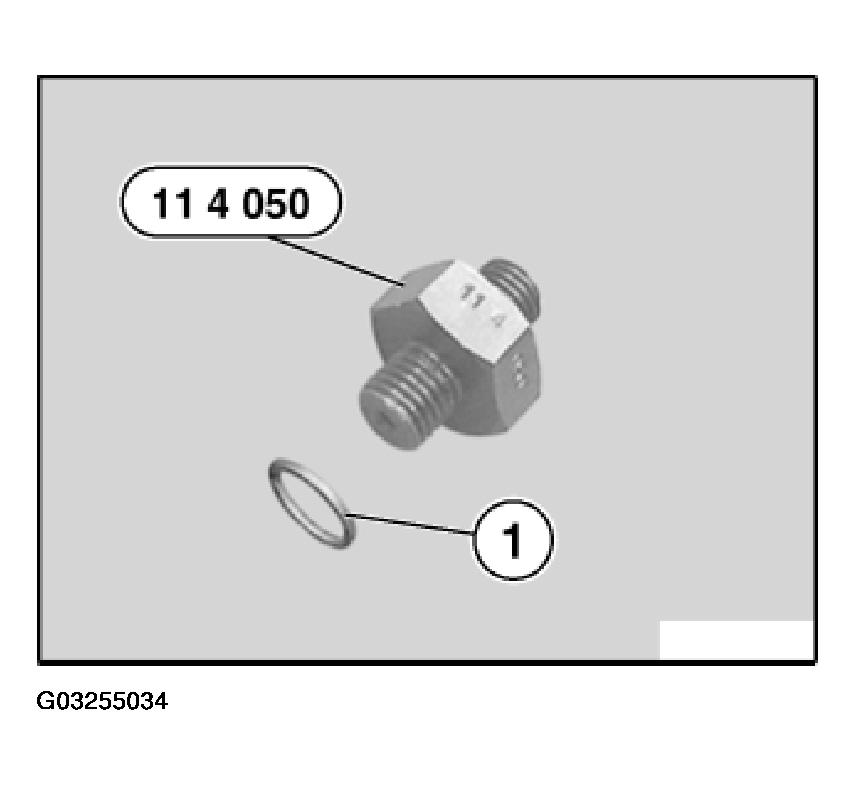

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.
