11 14 151 Replacing crankshaft radial seal (M62/S62)

WARNING: This page is about a different variant/trim than selected.

Transmission Side

Unfasten screws.

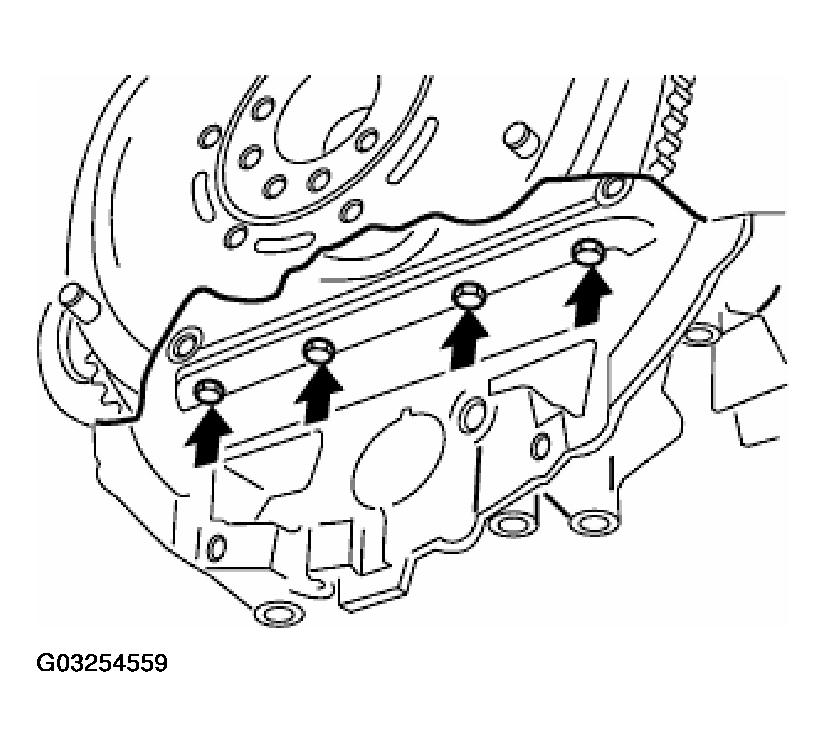

Fig 1: Identifying Dust Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw on rear end cover.

Carefully unfasten oil sump gasket from end cover and remove end cover.

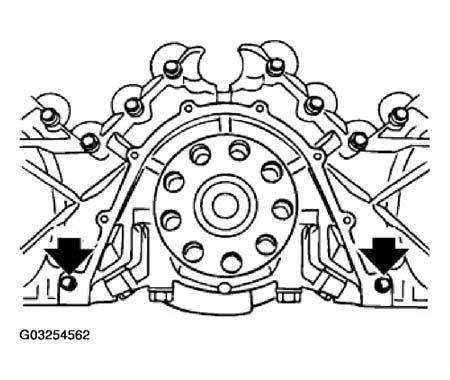

Fig 2: Removing Rear End Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The end cover is in the set with the radial sealing ring.

If necessary, lift out the radial seal and drive in new sealing ring using special tool 11 1 230 in conjunction with special tool 00 5 500.

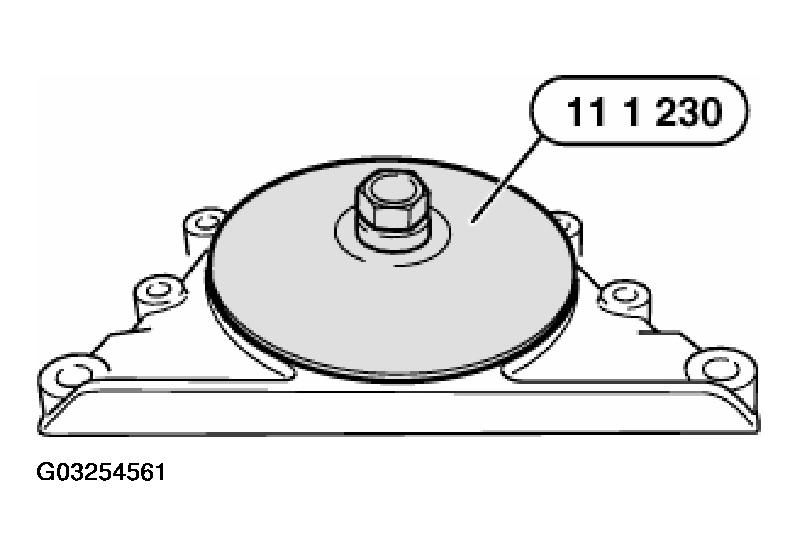

Fig 3: Drive In New Sealing Ring Using Special Tool 11 1 230

Courtesy of BMW OF NORTH AMERICA, INC.

Check for correct fit of hollow bushes.

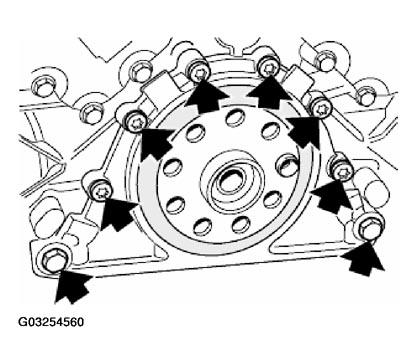

Fig 4: Checking For Correct Fit Of Hollow Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

Replace seal.

Coat contact points on joint along oil sump with Drei Bond 1209.

Fit special tool 11 2 390 on crankshaft.

Coat sealing lip of radial sealing ring with oil.

Slide on end cover.

Carefully remove special tool 11 2 390.

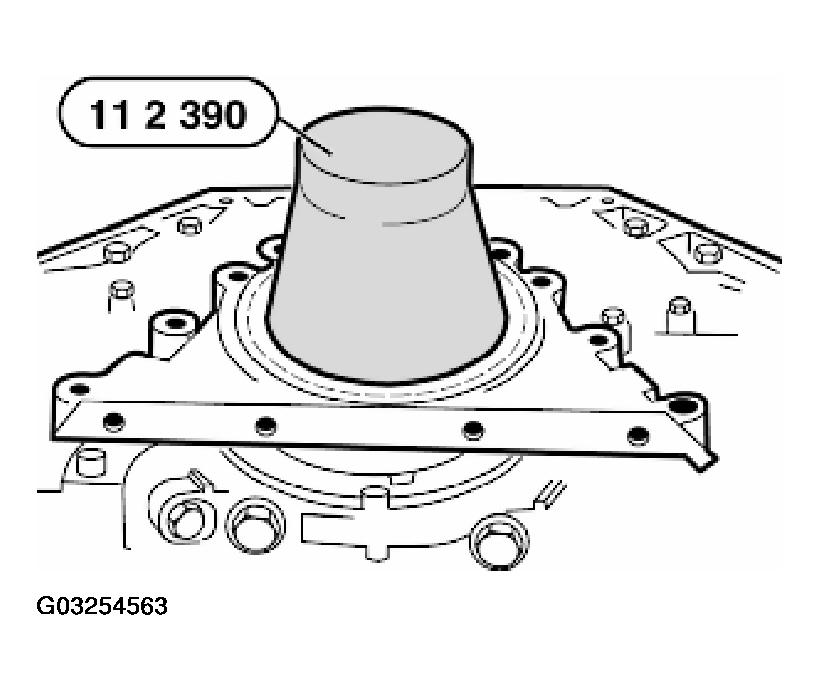

Fig 5: Installing End Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the sealing washers under the screws (1).

Insert all screws and tighten down end cover.

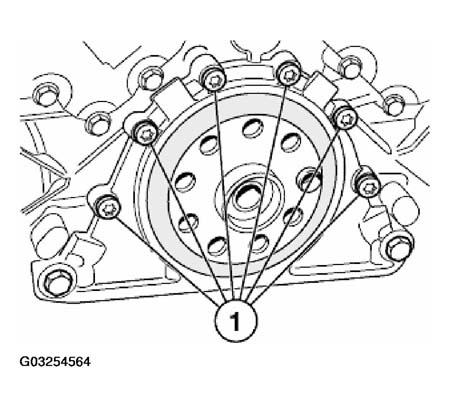

Fig 6: Installing End Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.
