11 22 510 Removing and installing/replacing flywheel (M62)

WARNING: This page is about a different variant/trim than selected.

Transmission Removed

CAUTION: Once the flywheel has been replaced, the pulse generator must be reset,

refer to 12 14 520 in ENGINE ELECTRICAL SYSTEM - REPAIR INSTRUCTION - X5 4.6L .

Block the flywheel using special tool 11 2 070.

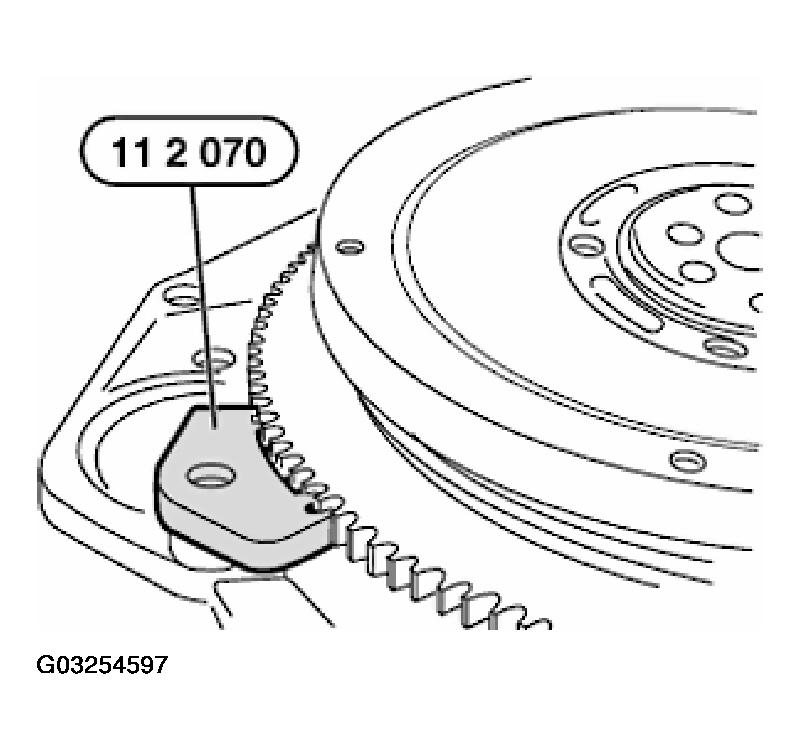

Fig 1: Blocking Flywheel Using Special Tool 11 2 070

G03254597

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten flywheel screws.

Remove drive plate (1).

Remove flywheel (2).

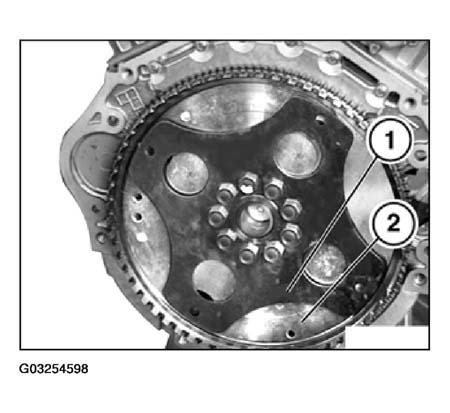

Fig 2: Identifying Drive Plate And Flywheel

G03254598

Courtesy of BMW OF NORTH AMERICA, INC.

Clean threads on flywheel screws in crankshaft.

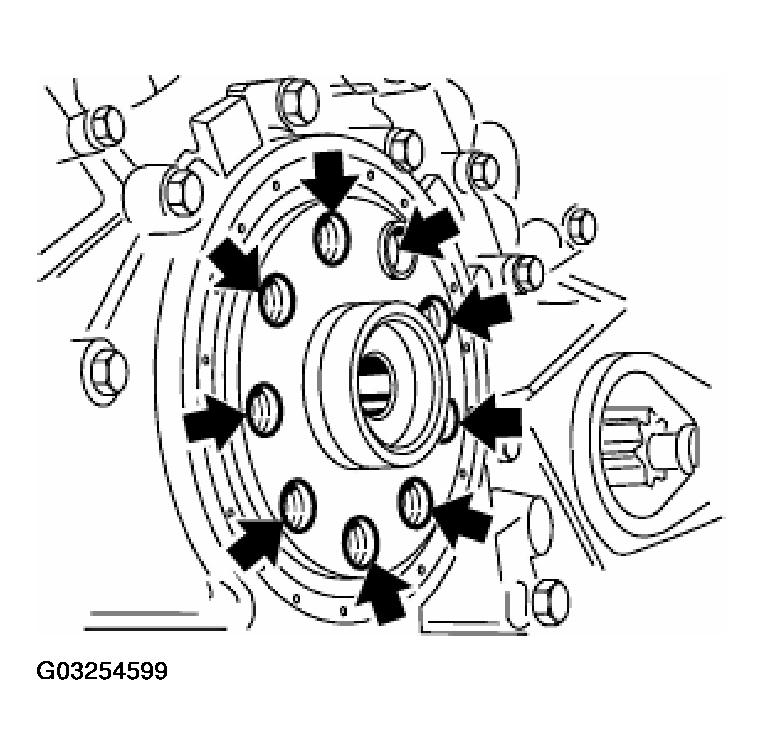

Fig 3: Cleaning Flywheel Threads

G03254599

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The flywheel is secured with a dowel sleeve.

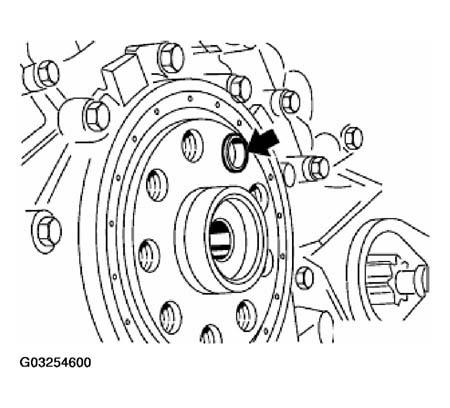

Fig 4: Identifying Special Flywheel Dowel Sleeve

G03254600

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit flywheel (2) and mount drive plate (1) for torque converter correctly. Holes in drive plate (1) and flywheel (2) must be aligned over one another.

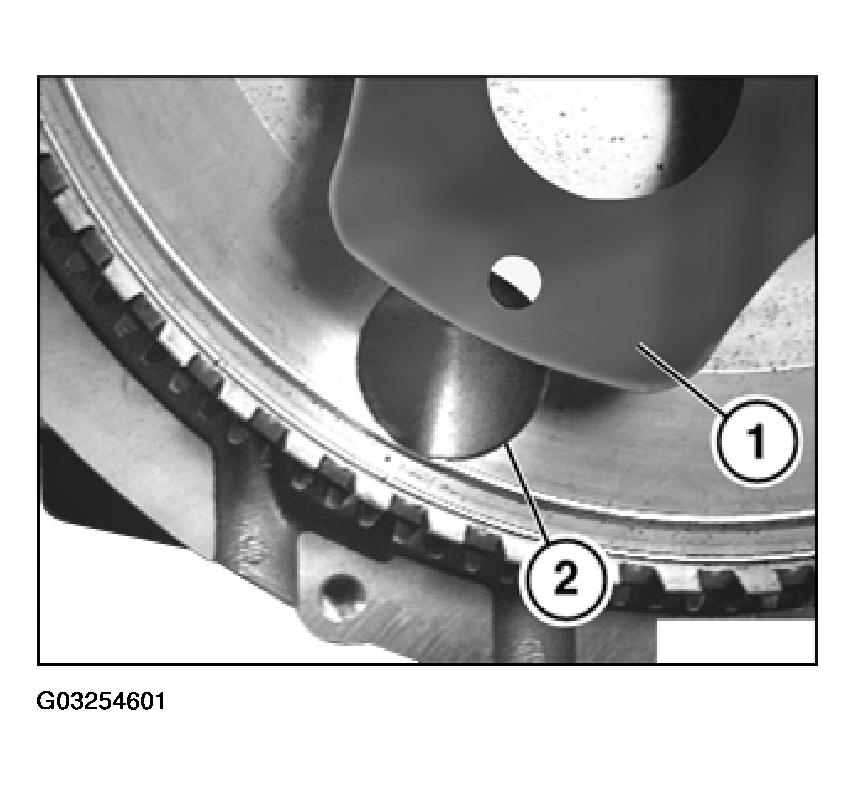

Fig 5: Identifying Flywheel And Mount Drive Plate Installed Position

G03254601

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new flywheel screws.

Tightening torque,

refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .
