11 22 500 Removing and installing/replacing flywheel (M62/S62)

WARNING: This page is about a different variant/trim than selected.

Clutch or Flexplate Removed

CAUTION: Once the flywheel has been replaced, the pulse generator must be reset,

refer to 12 14 520 in ENGINE ELECTRICAL SYSTEM - REPAIR INSTRUCTION - X5 4.6L .

Block flywheel with special tool 11 2 070.

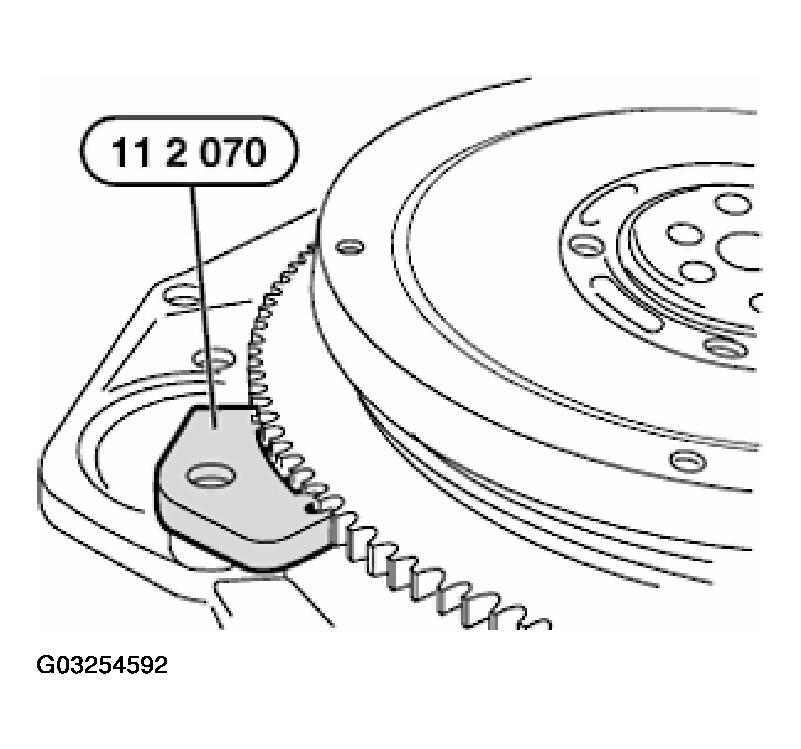

Fig 1: Blocking Flywheel With Special Tool 11 2 070
G03254592Courtesy of BMW OF NORTH AMERICA, INC.

Release and tighten the flywheel (ZMS) only with special tool 11 4 180.

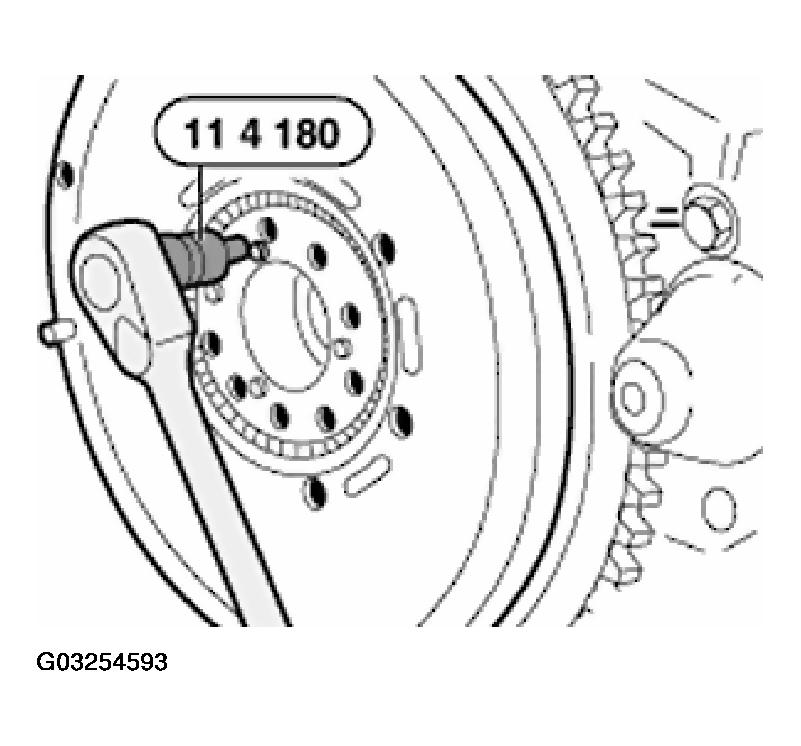

Fig 2: Releasing Flywheel (ZMS) Bolts
G03254593Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque,

refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .

Clean thread for flywheel screws in crankshaft.

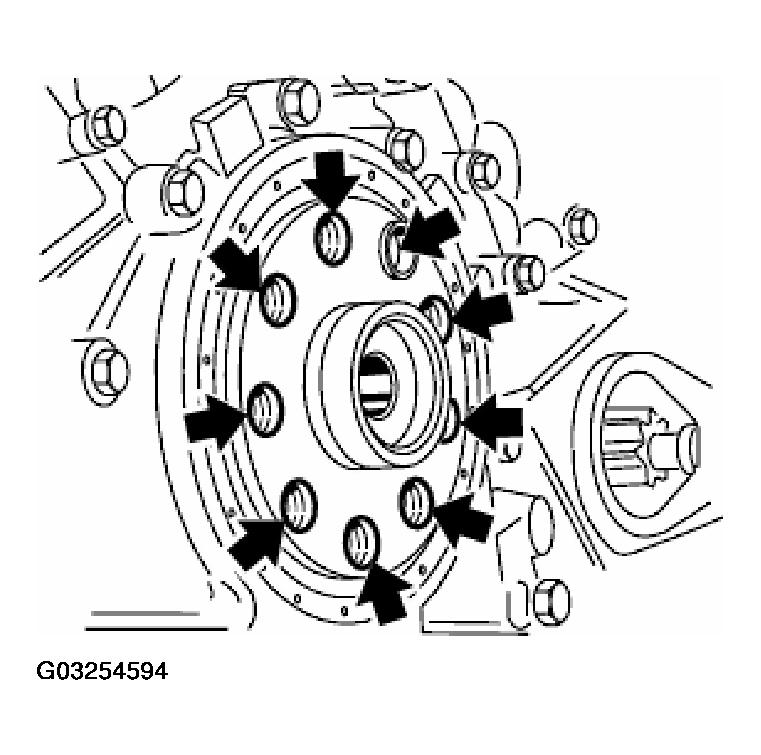

Fig 3: Cleaning Flywheel Screw Threads In Crankshaft
G03254594Courtesy of BMW OF NORTH AMERICA, INC.

The flywheel (ZMS) is located with a special (shorter) dowel sleeve.

CAUTION: Replace only with original BMW spare parts.

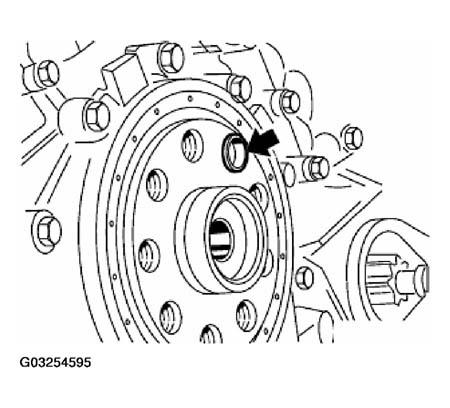

Fig 4: Identifying Special Flywheel Dowel Sleeve
G03254595Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The position of the dowel sleeve (1) in the dual-mass flywheel is marked with two notches beside the respective screw bore.

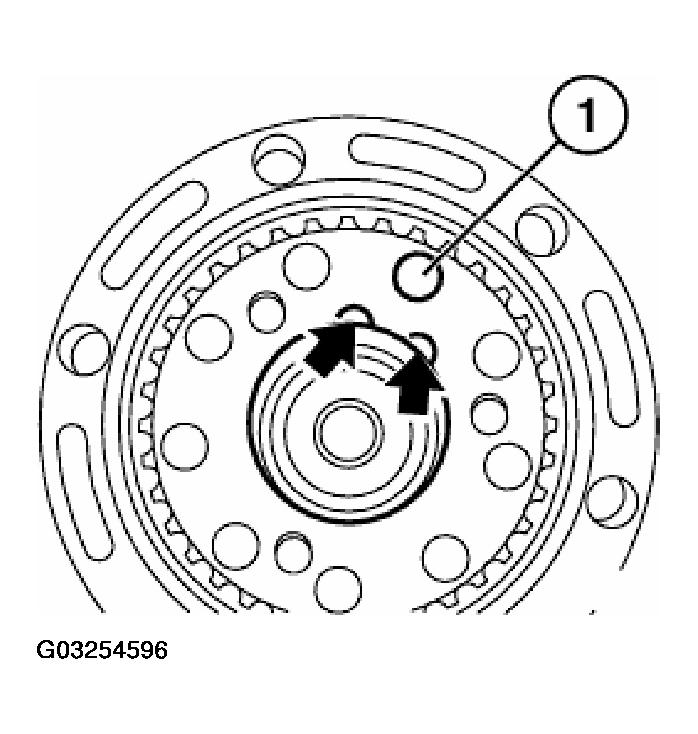

Fig 5: Identifying Dowel Sleeve Position For Flywheel Installation
G03254596Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Flywheel screws are part of the flywheel and must not be installed with screw securing adhesive (Loctite).

Lubricate screw threads lightly.

Tightening Torque,

refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .
