11 52 020 Removing and installing or replacing fan coupling (M62)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Left-hand threads.

Using special tool 11 5 050 brace against pulley and unfasten cap nut from water pump using special tool 11 5 040.

Remove fan wheel with fan coupling from water pump.

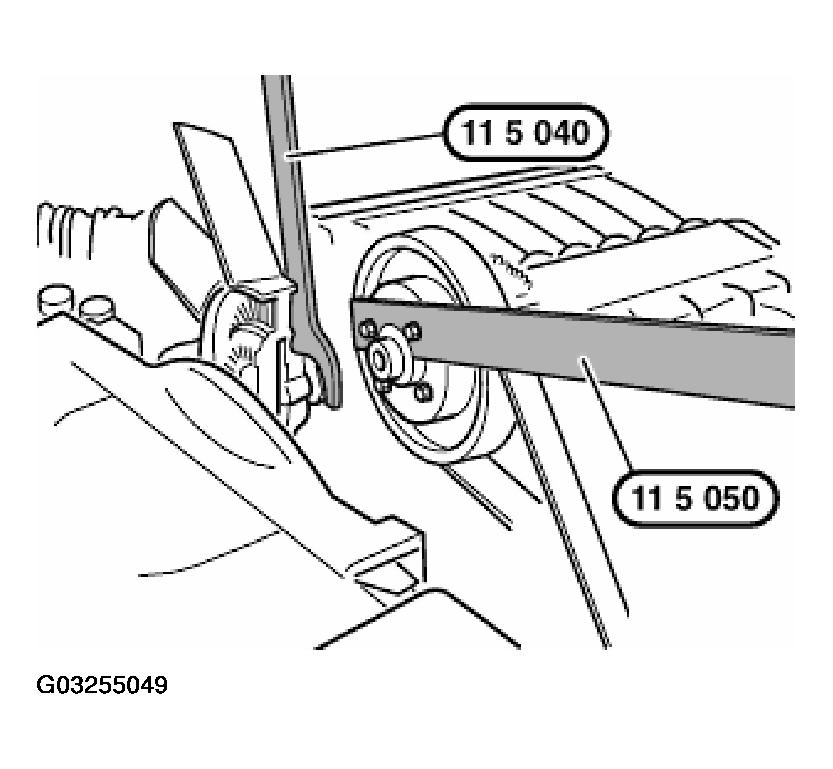

Fig 1: Removing Fan Wheel & Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten down fan wheel using special tool 11 5 040.

Tightening torque,

NOTE: When using special tool 115 040, 30 Nm on the torque wrench scale are equivalent to a tightening torque of 40 Nm.

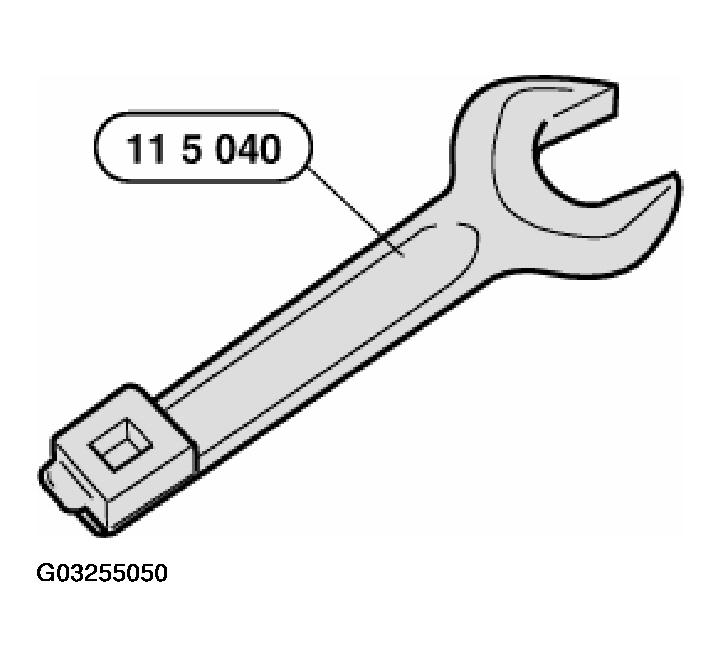

Fig 2: Identifying Special Tool 11 5 040

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and detach fan from fan coupling.

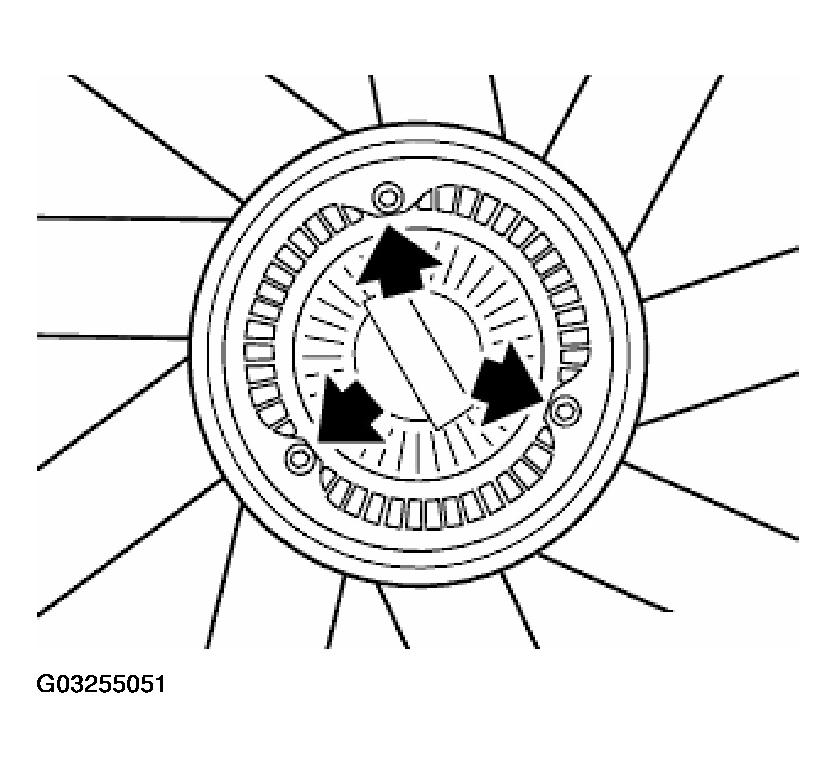

Fig 3: Removing Fan From Fan Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
