Changing differential oil

WARNING: This page is about a different variant/trim than selected.

Change oil with rear axle differential at normal operating temperature. Final drive oil, refer to Service Information Operating Fluids. For filling quantity, refer to OPERATING FLUIDS - REAR AXLE .

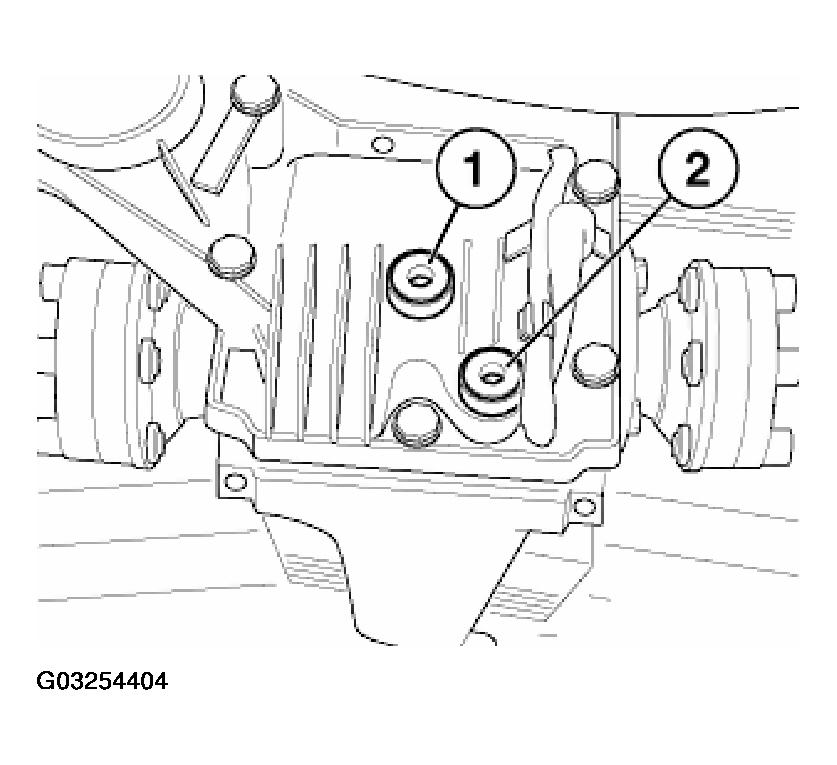

Fig 1: Unscrewing Drain Plug And Filler Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew drain plug (2), clean and reinstall.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, refer to Technical DataMAINTENANCE AND GENERAL INFORMATION - TIGHTENING TORQUES .
