52 17 ... Replacing first aid kit with holder

WARNING: This page is about a different variant/trim than selected.

Unclip first aid kit on both sides and remove downwards towards front.

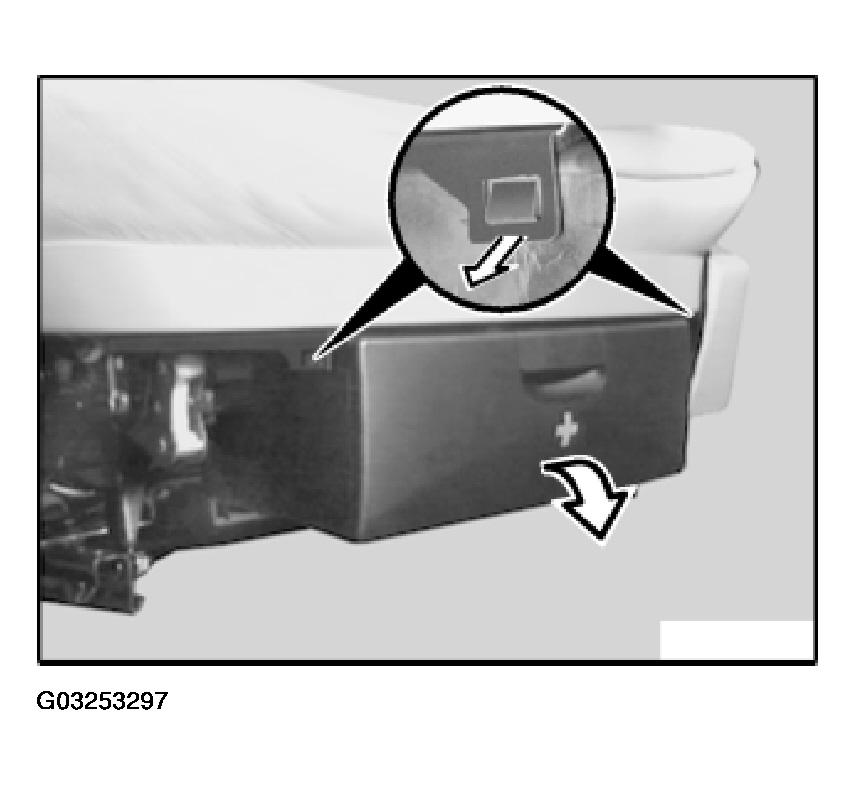

Fig 1: Removing First Aid Kit
G03253297Courtesy of BMW OF NORTH AMERICA, INC.

Release holder screws and remove holder.

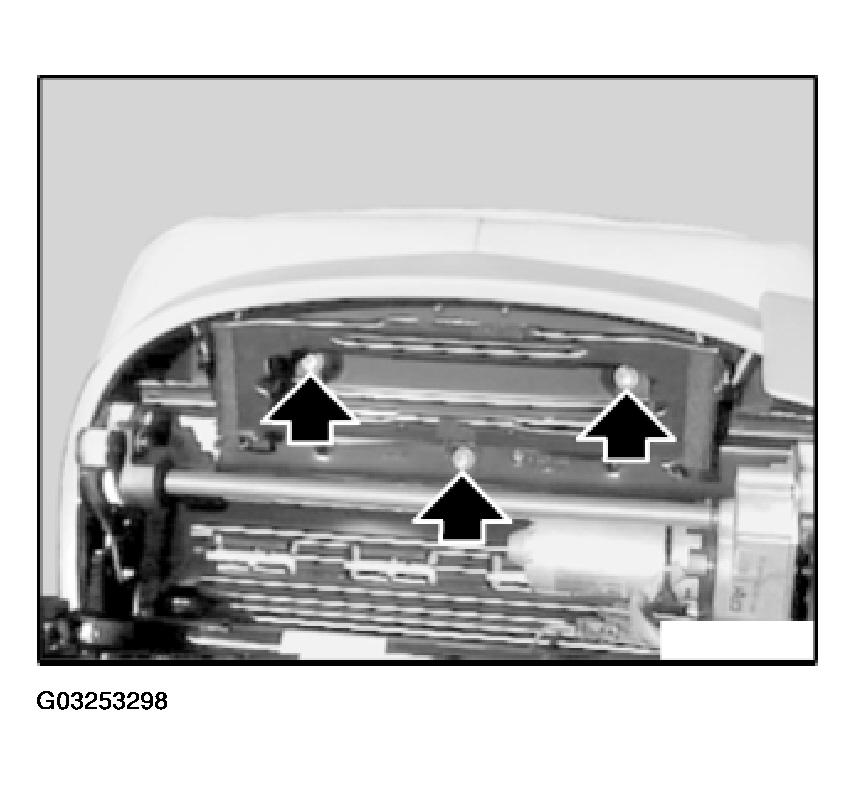

Fig 2: Removing Holder
G03253298Courtesy of BMW OF NORTH AMERICA, INC.
