52 13 041 Removing And Installing / Replacing Inner Cover On Left Or Right Front Seat Backrest (Normal/ Manual)

WARNING: This page is about a different variant/trim than selected.

NOTE: Shown removed for purposes of clarity.

Release screw (1) and remove trim (2).

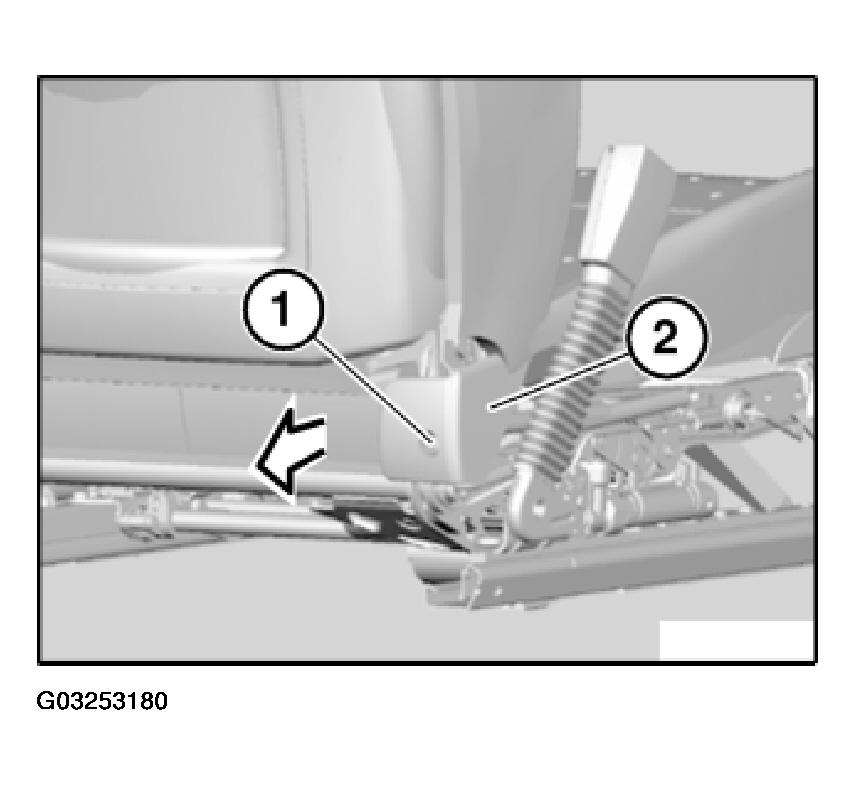

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
