52 13 040 Removing and installing / replacing outer cover on left or right front seat back-rest (normal / manual)

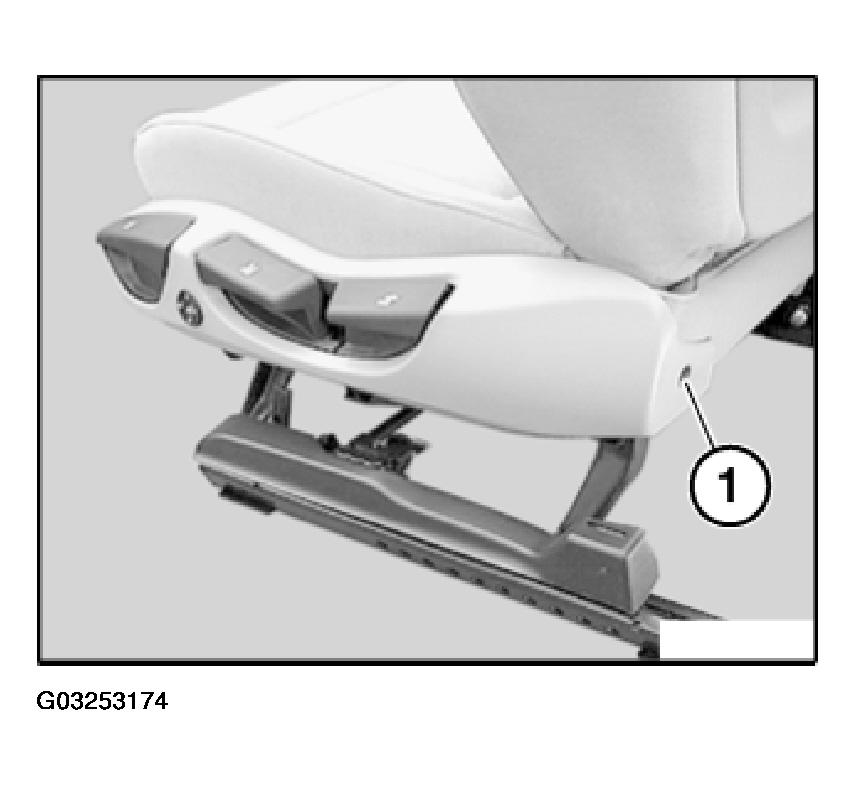

Unscrew bolt (1).

Fig 1: Identifying Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

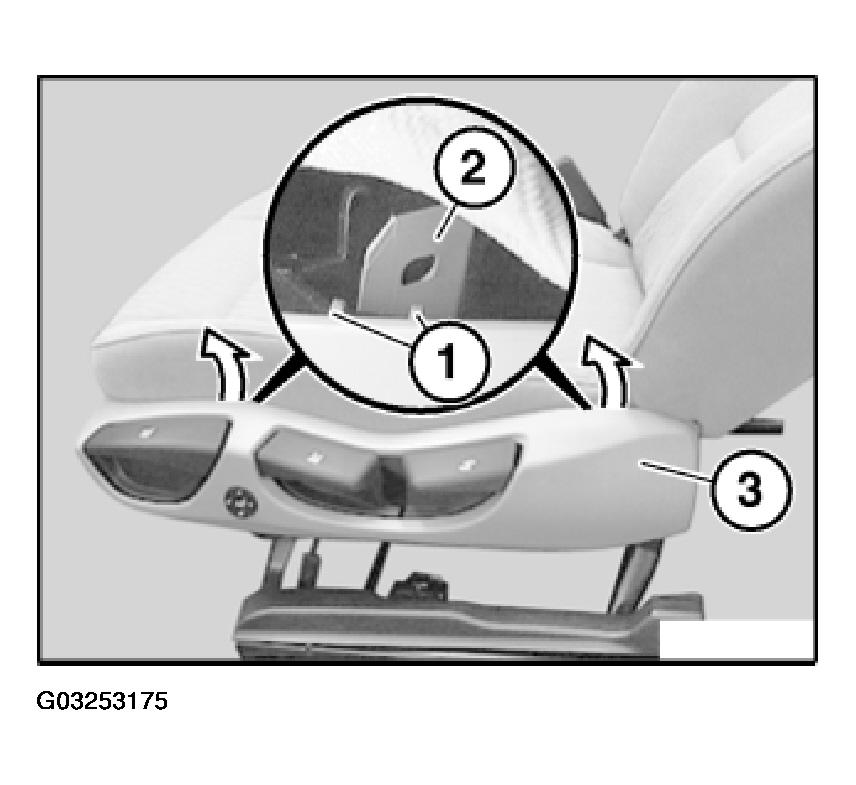

Snap out catches (1) at front/rear and tongue (2) at rear from cover (3) towards top and pull outwards a little.

Fig 2: Snapping Out Catches At Front/Rear And Tongue

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide tongue (2) into mounts and snap into place.

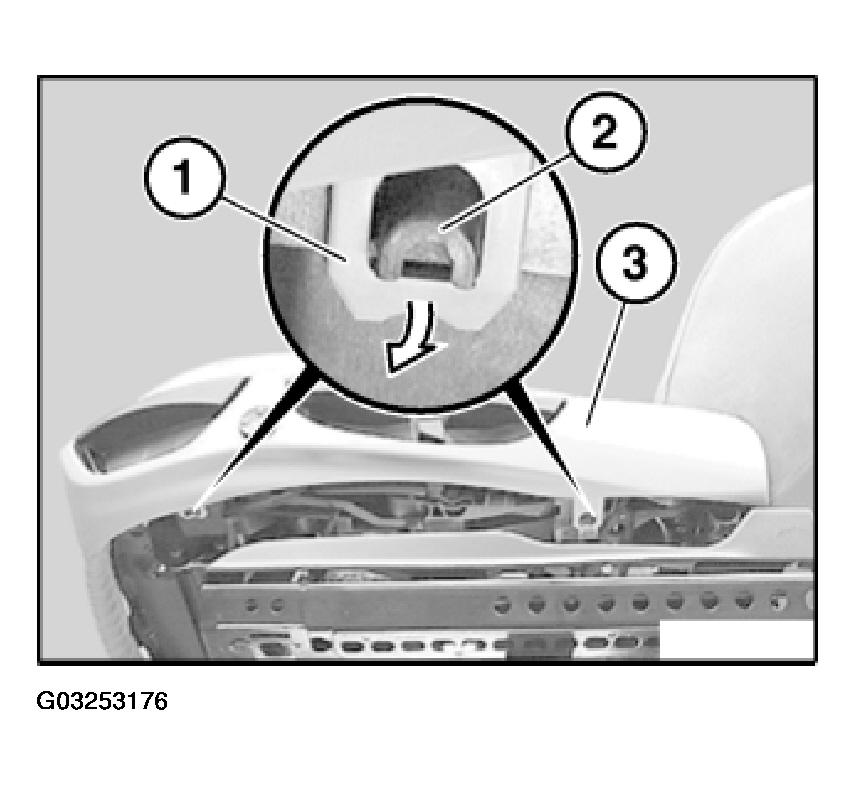

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Levering Lugs On Cover Out Of Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

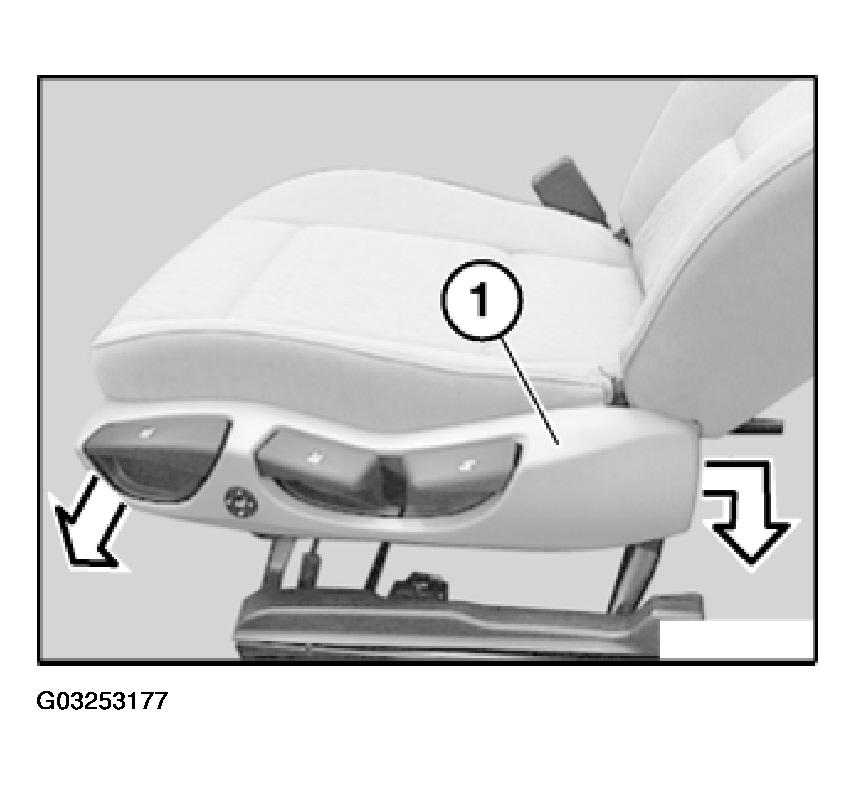

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

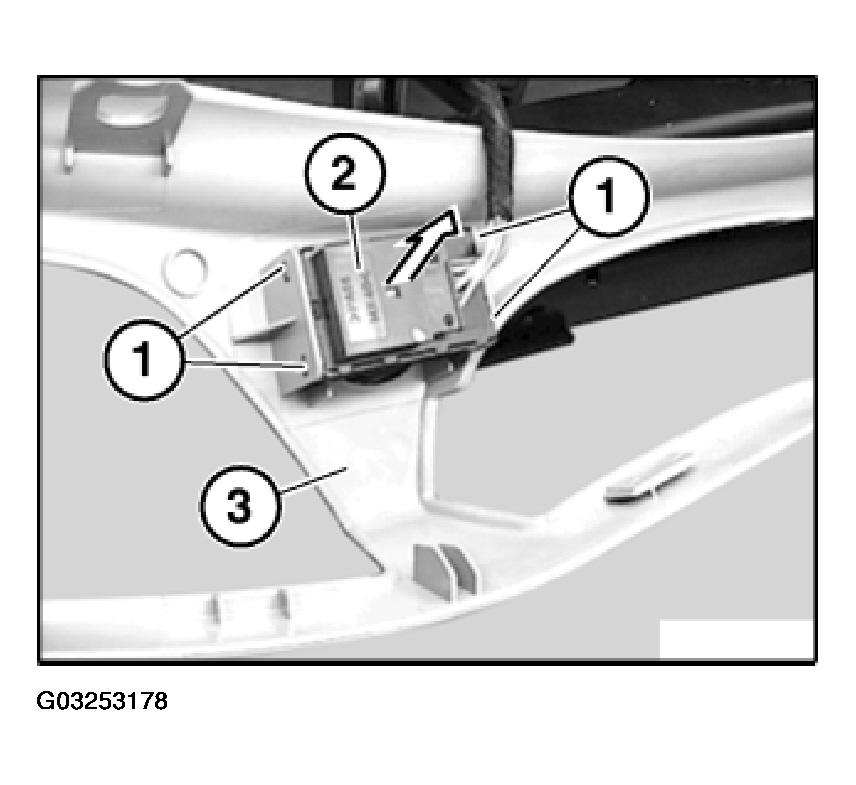

If necessary, press down catches (1) on left/right and remove switch (2) from cover (3).

Fig 5: Removing Switch From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

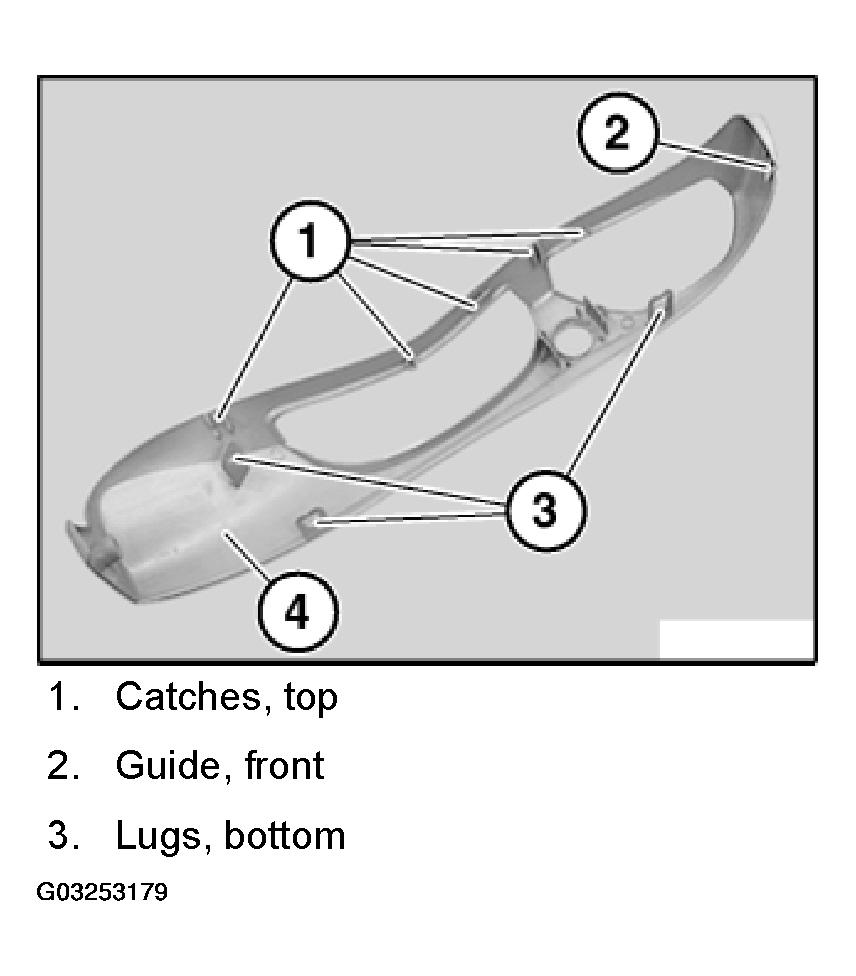

Following parts must not be damaged, replace cover (4) if necessary:

1. Catches, top
2. Guide, front
3. Lugs, bottom
   Fig 6: Identifying Catches, Guide, And Lugs On Cover

   Courtesy of BMW OF NORTH AMERICA, INC.
