52 14 899 Additional Work (Normal/ Electric) With Defective Drive For Longitudinal Adjustment

WARNING: This page is about a different variant/trim than selected.

Set seat tilt adjustment to max. up setting.

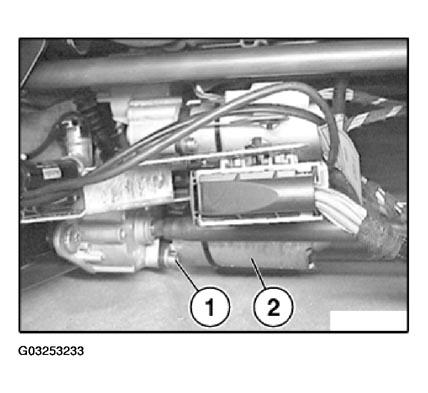

Release screw (1) on actuator drive (2) of longitudinal seat adjustment.

Fig 1: Releasing Screw On Actuator Drive Of Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

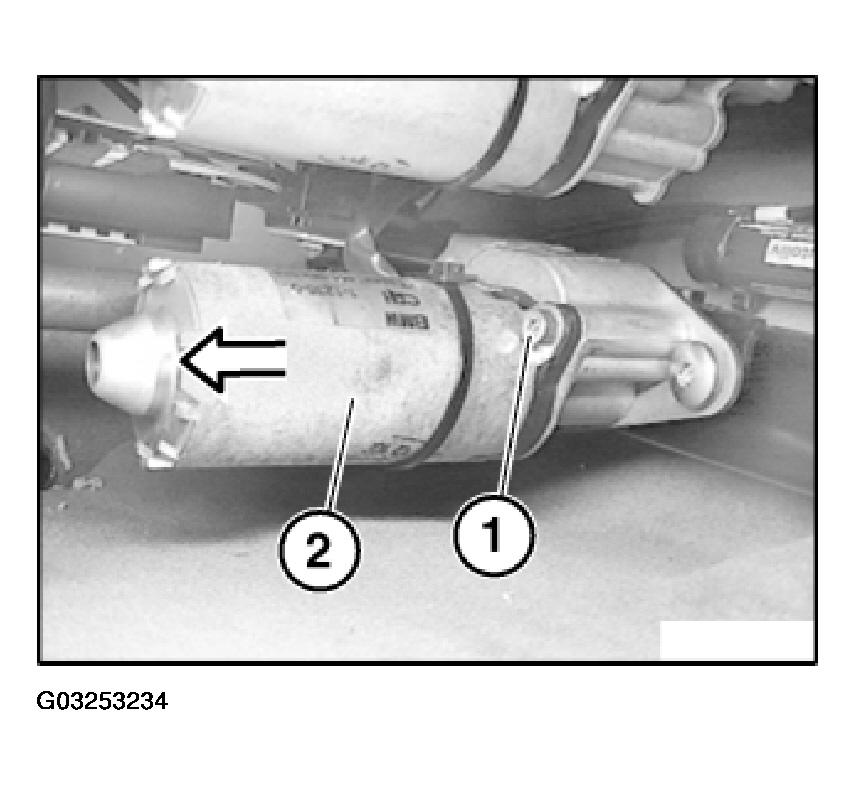

Release screw (1) on servodrive (2) of longitudinal seat adjustment and remove servodrive (2).

Fig 2: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Activate the operating switch for the seat position adjustment:

No function:
- Disconnect plug for longitudinal seat adjustment
- Connect new servodrive and check function
- If servodrive is running, gear is O.K.
- Reassemble front seat
Actuator drive running:
- Transmission for longitudinal seat adjustment defective!
- Continue with
  Disassembly of faulty gear for longitudinal seat adjustment

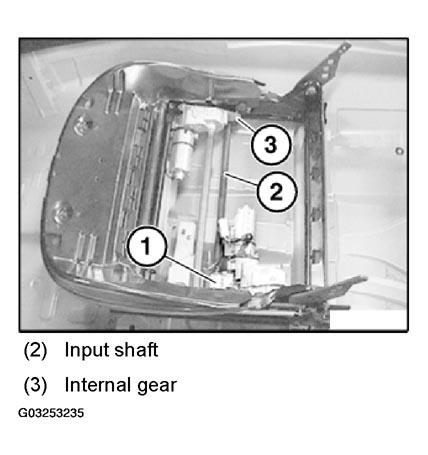

Disassembly of faulty gear (1) for longitudinal seat adjustment:

NOTE: For purposes of clarity, the backrest frame and seat cover are shown removed.

(2) Input shaft
(3) Internal gear

Fig 3: Locating Input Shaft & Internal Gear
Courtesy of BMW OF NORTH AMERICA, INC.

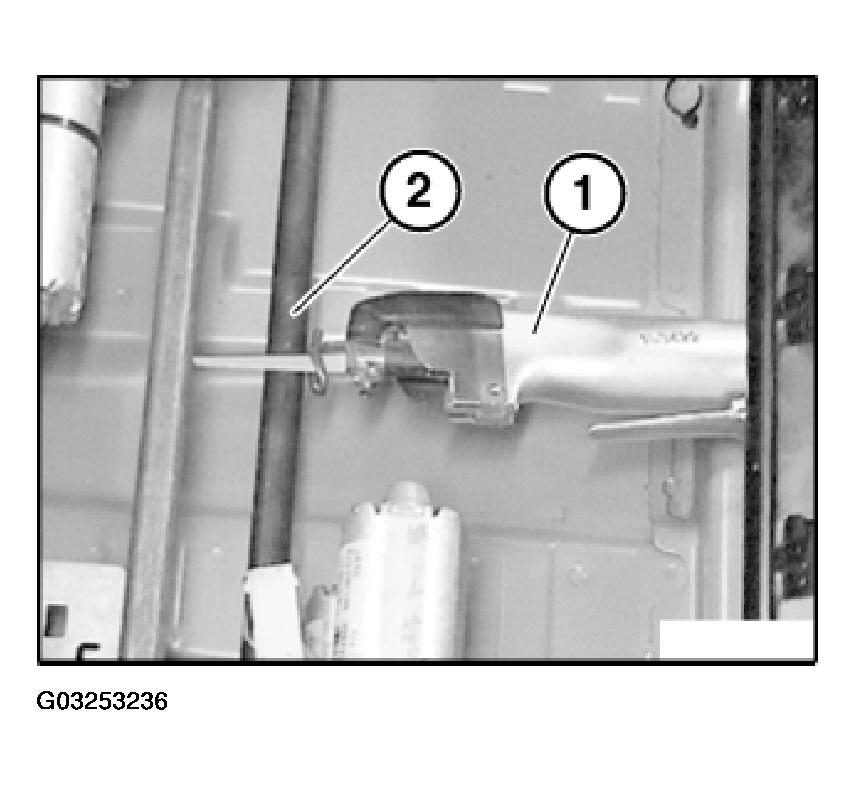

Using a pneumatic saw (1), cut through drive shaft (2) from rear.

Fig 4: Cutting Through Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

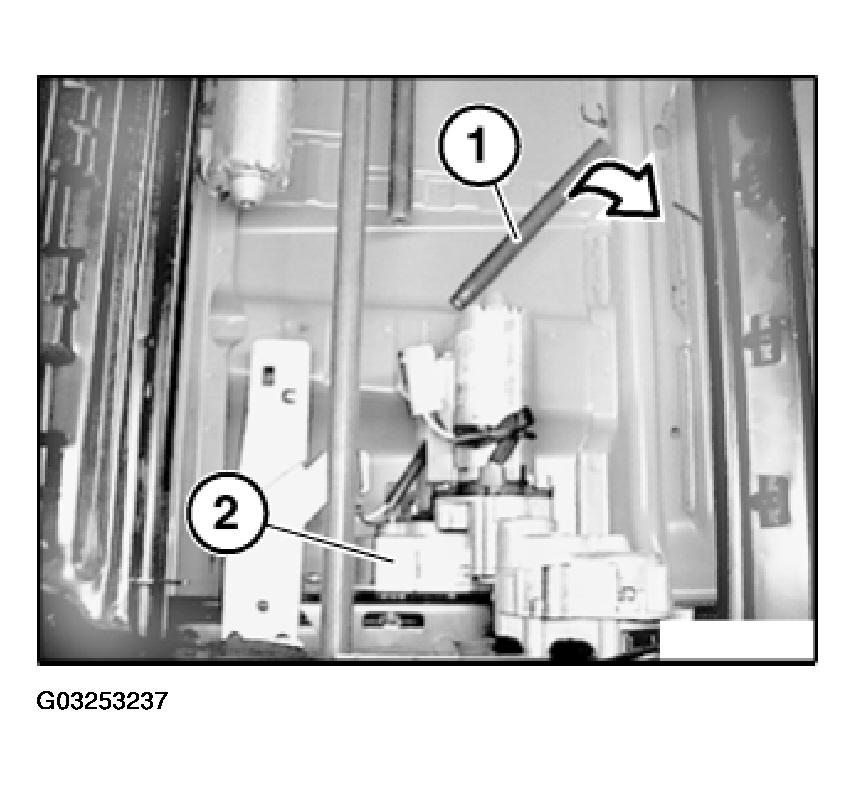

Remove drive shaft (1) from gear (2).

Fig 5: Removing Drive Shaft From Gear

Courtesy of BMW OF NORTH AMERICA, INC.

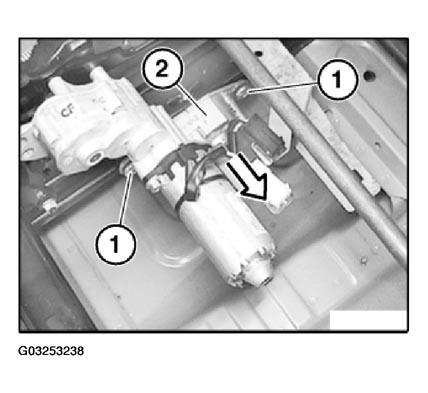

Release screw (1) and remove gear (2).

Fig 6: Removing Gear

Courtesy of BMW OF NORTH AMERICA, INC.

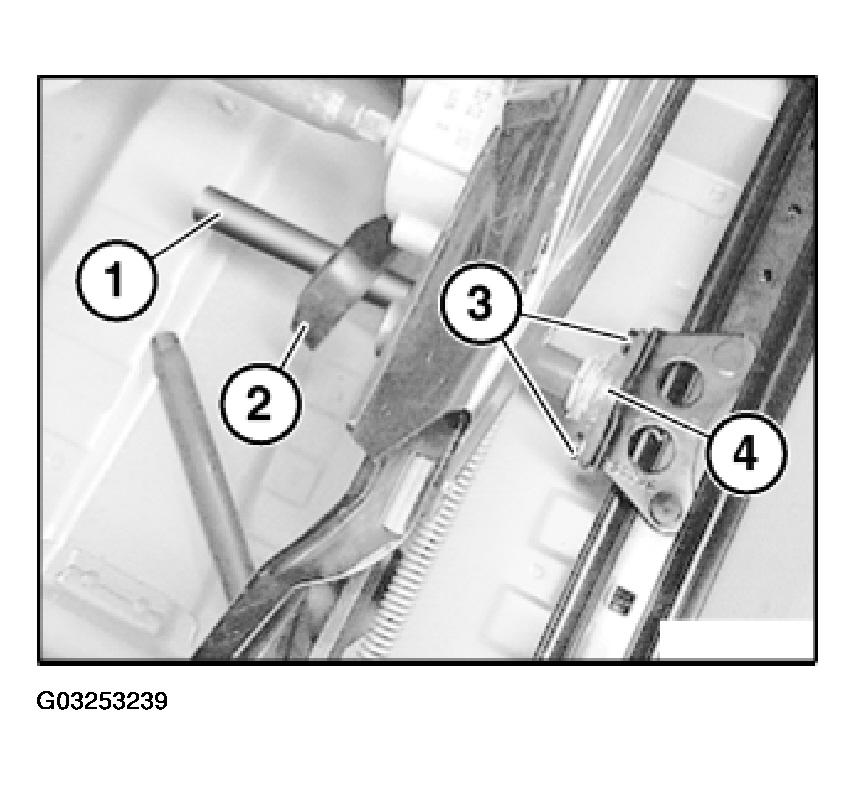

Over rest of drive shaft (1), adjust front seat, release screws on floor panel and remove front seat.

Fig 7: Removing Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If gear (4) is faulty, detach cover (2), release screws (3), and remove gear (4).

Replace seat mechanism on front seat.
