52 13 ... Removing and installing/replacing seat pan and flexmat (normal/manual), left or right

WARNING: This page is about a different variant/trim than selected.

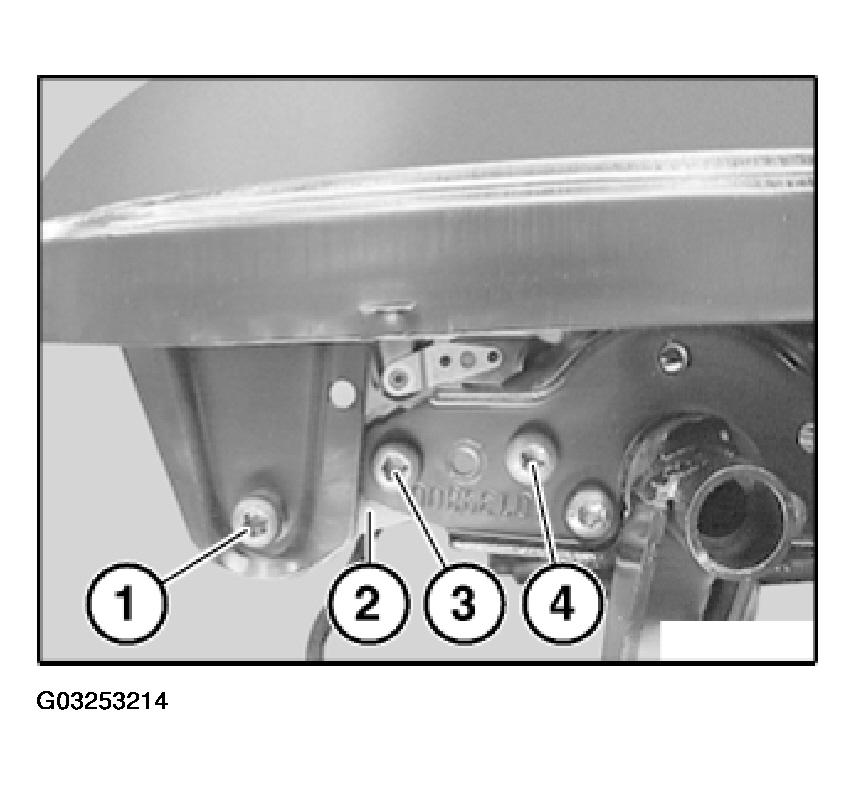

Release left screw (1) and slacken right screw only.

Fig 1: Removing Left Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release left/right screws (3).

Slacken left/right screws (4) only.

Remove left retaining plate (2) downwards.

Installation:

Tightening torque, 52 10 9AZ. Refer to SEATS - TIGHTENING TORQUES .

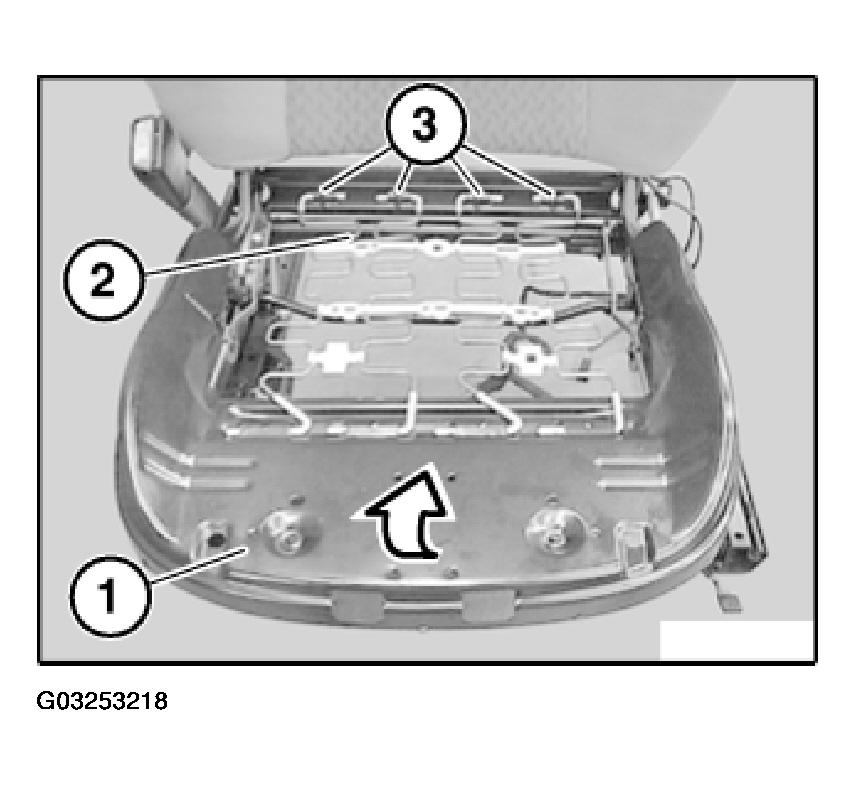

Press seat pan (1) upwards, thereby relieving tension on flexmat.

Fig 2: Relieving Tension On Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove retaining plates (2).

Fig 3: Removing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 52 10 9AZ. Refer to SEATS - TIGHTENING TORQUES .

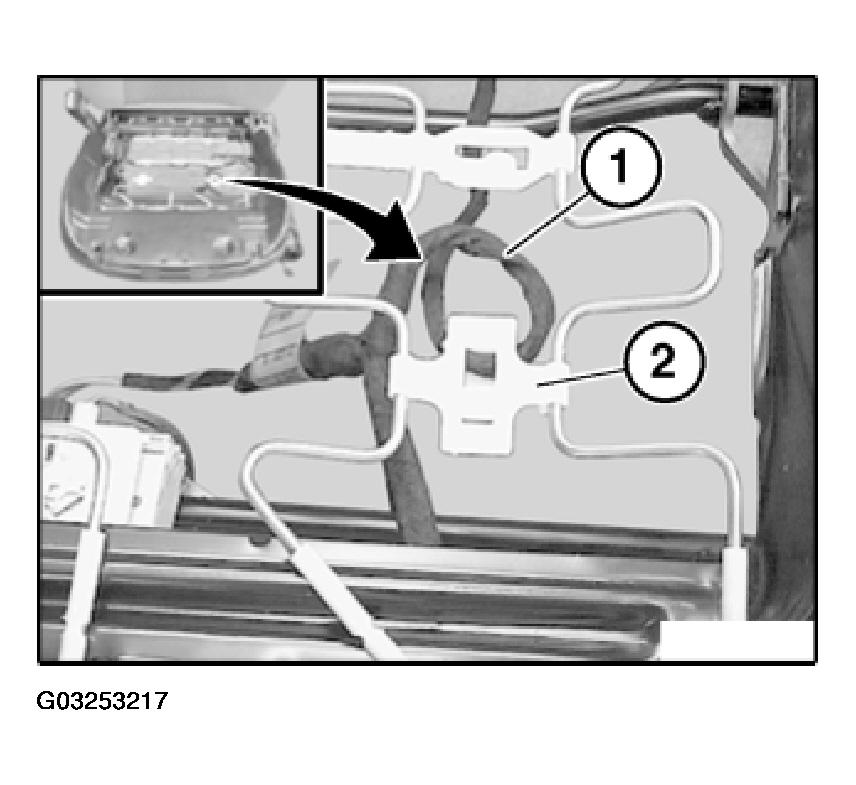

Unhook cable (1) from holder (2).

Fig 4: Unhooking Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

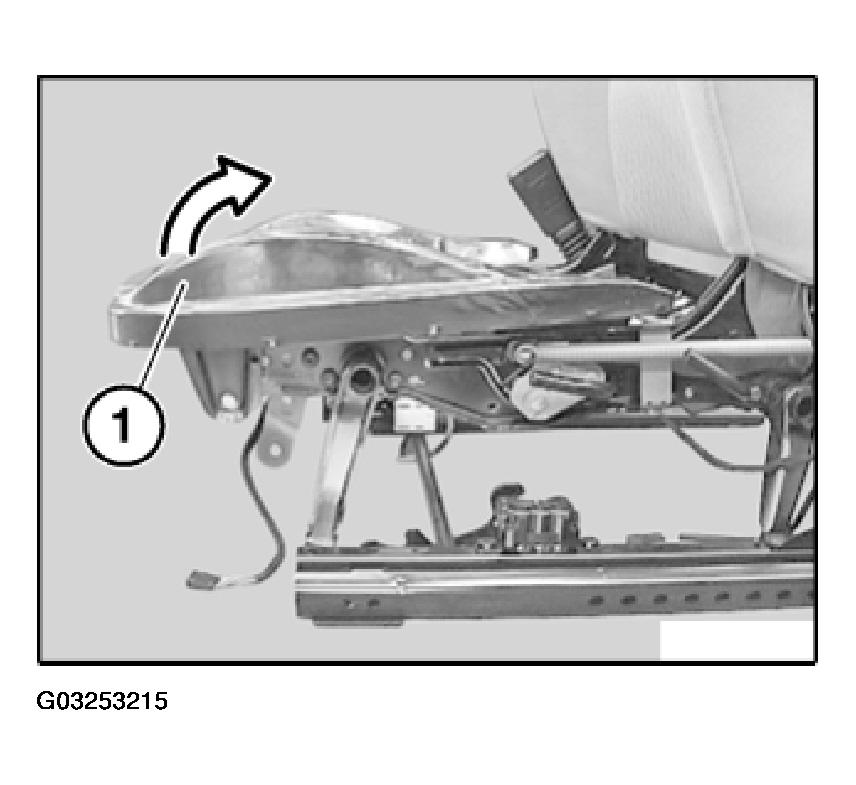

Turn seat pan (1) upwards.

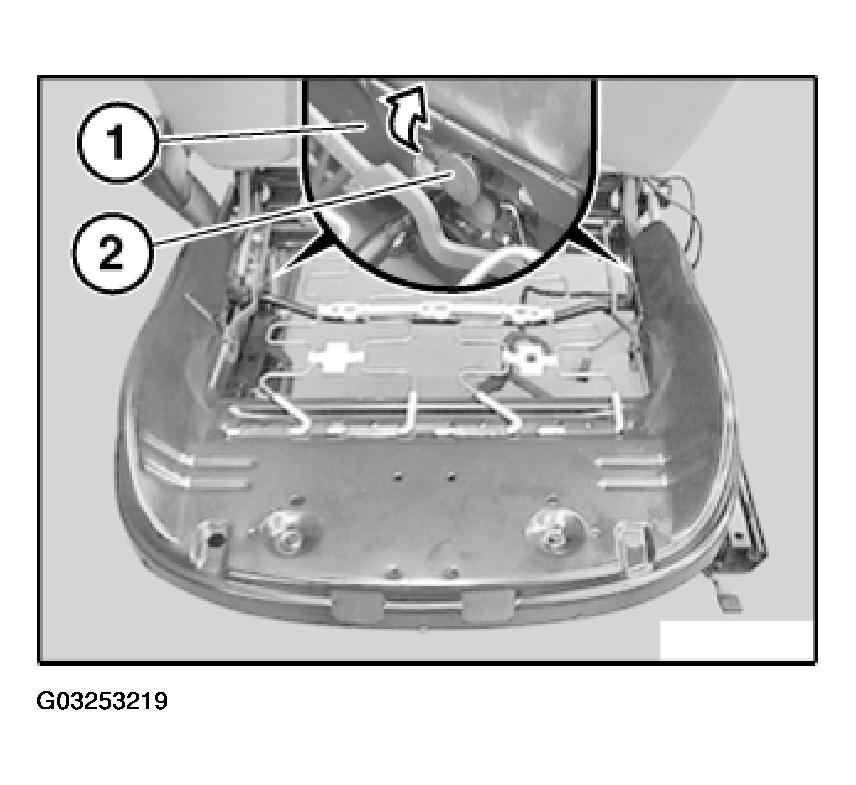

Fig 5: Detaching Flexmat At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (2) at rear from mounts (3).

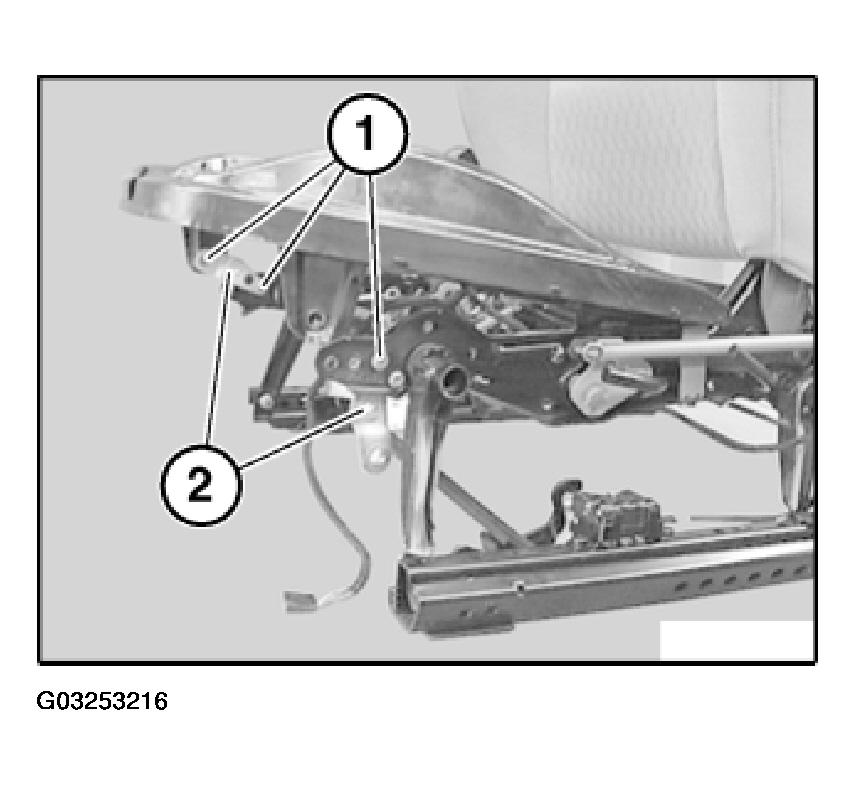

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Detaching Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

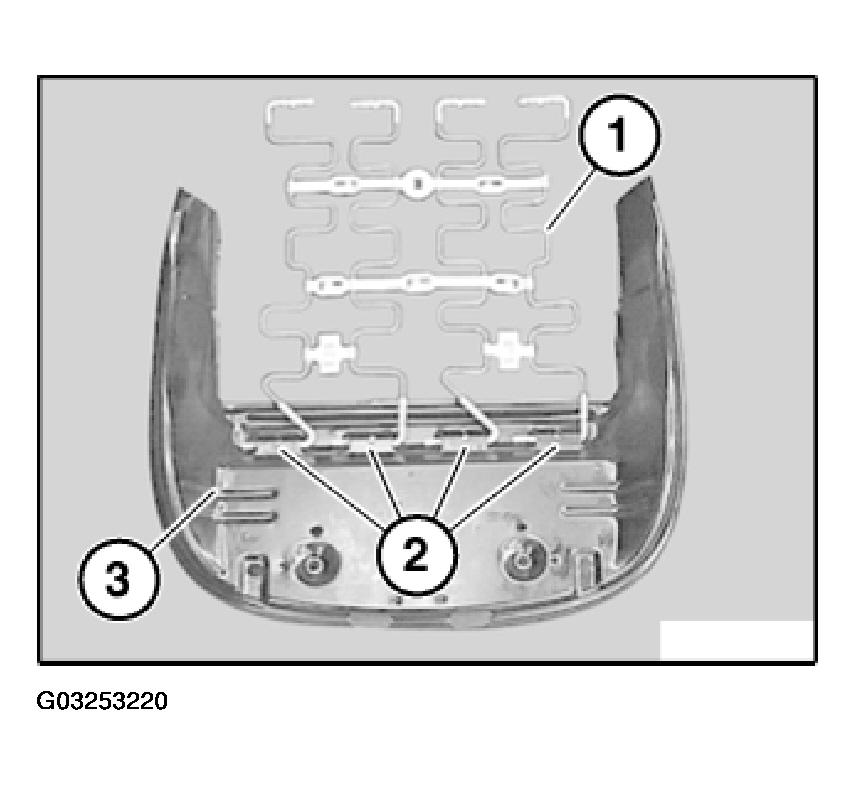

Detach flexmat (1) from mounts (2) on seat pan (3).
